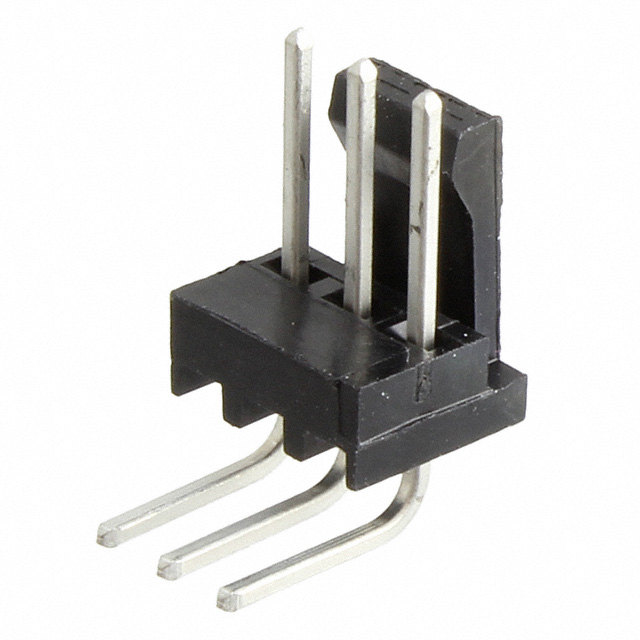

3-647630-3

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Headers, Male Pins

Contact Length - Mating :

0.290 7.37mm

Plating Thickness :

6.3μm

PCB Thickness :

1.5748mm

Contact Shape :

Square

ELV :

Compliant

Published :

2008

Mounting Type :

Through Hole, Right Angle

Insulation Height :

0.250 6.35mm

IEC Conformance :

No

Flammability Rating :

UL94 V-0

Shrouding :

Shrouded - 1 Wall

Lifecycle Status :

ACTIVE (Last Updated: 3 days ago)

Contact Resistance :

6mOhm

Voltage - Rated :

250VAC

Style :

Board to Cable/Wire

Approval Agency :

CSA

Pitch - Mating :

0.100 2.54mm

Number of Positions :

3

Operating Temperature :

-55°C~105°C

Contact Length - Post :

0.140 3.56mm

Factory Lead Time :

17 Weeks

Terminal Pitch :

2.54mm

Fastening Type :

Friction Lock

Orientation :

RIGHT ANGLE

PCB Mount Alignment :

Without

Pbfree Code :

yes

Insulation Color :

Black

Max Voltage Rating (AC) :

250V

Connector Type :

Header

Contact Finish Thickness - Post :

150.0μin 3.81μm

Mixed Contacts :

No

PCB Mounting Orientation :

RIGHT ANGLE

Height :

8.81mm

Length - Tail :

3.56mm

Mating Retention :

With

Contact Material :

COPPER ALLOY

Housing Material :

PBT

Termination :

Solder

Operating Supply Voltage :

250V

MIL Conformance :

No

Length :

7.62mm

Circuit Application :

Signal

Current Rating :

5A

Material Flammability Rating :

UL94 V-0

Underplate Material :

Nickel

Mount :

Through Hole

Applications :

GENERAL PURPOSE

Number of Rows :

1

Contact Type :

Male Pin

Depth :

6.35mm

JESD-609 Code :

e3

Series :

MTA-100

Contact Finish - Mating :

Tin

Sealable :

No

Contact Current Rating :

5A

DIN Conformance :

No

Filter Feature :

No

Number of Positions Loaded :

All

Packaging :

Bulk

Current Rating (Amps) :

Varies by WireGAuge

Mating Post Length :

7.37mm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

RoHS Status :

RoHS Compliant

Insulation Material :

Polybutylene Terephthalate (PBT), Glass Filled
