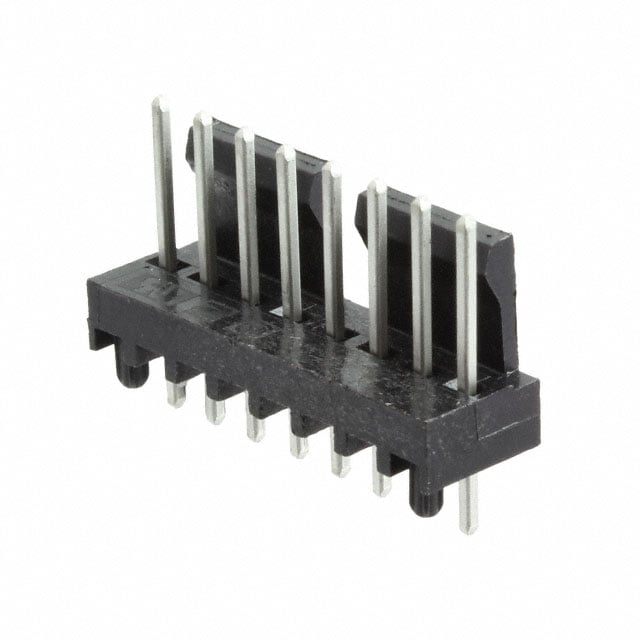

3-647609-8
Or copy the link below:
- Mfr.Part #
- 3-647609-8
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 8POS 2.54MM
- Stock
- 1,638
- In Stock ：
- 1,638
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Connector Type :
- Header
- Insulation Material :
- Polybutylene Terephthalate (PBT), Glass Filled
- Contact Resistance :
- 6mOhm
- Number of Contacts :
- 8
- Underplate Material :
- Nickel
- Termination :
- Solder
- Style :
- Board to Cable/Wire
- Published :
- 2008
- Insulation Color :
- Black
- Flammability Rating :
- UL94 V-0
- Contact Length - Mating :
- 0.290 7.37mm
- PCB Mount Alignment :
- With
- Plating :
- Tin
- Contact Gender :
- Male
- RoHS Status :
- RoHS Compliant
- Operating Temperature :
- -55°C~105°C
- Mounting Type :
- Through Hole
- PCB Thickness :
- 1.5748mm
- Applications :
- GENERAL PURPOSE
- Contact Shape :
- Square
- Length - Tail :
- 3.43mm
- Series :
- MTA-100
- Number of Rows :
- 1
- Max Voltage Rating (AC) :
- 250V
- Max Operating Temperature :
- 221°C
- Current Rating :
- 5A
- Contact Material :
- COPPER ALLOY
- ELV :
- Compliant
- Circuit Application :
- Signal
- Sealable :
- No
- Contact Current Rating :
- 5A
- Operating Supply Voltage :
- 250V
- Color :
- Black
- Factory Lead Time :
- 18 Weeks
- Contact Style :
- Straight
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Pitch - Mating :
- 0.100 2.54mm
- Number of Positions Loaded :
- All
- Plating Thickness :
- 6.3μm
- Fastening Type :
- Friction Lock
- Insulation Height :
- 0.347 8.81mm
- Contact Length - Post :
- 0.135 3.43mm
- Voltage - Rated :
- 250VAC
- Contact Plating :
- Tin
- Approval Agency :
- CSA
- PCB Mount Retention :
- With
- Contact Finish - Post :
- Tin
- Radiation Hardening :
- No
- Feature :
- Board Guide
- Shrouding :
- Shrouded - 1 Wall
- Orientation :
- Vertical
- Contact Type :
- Male Pin
- Current Rating (Amps) :
- Varies by WireGAuge
- Pitch :
- 2.54mm
- Mating Post Length :
- 7.37mm
- Contact Finish - Mating :
- Tin
- Material Flammability Rating :
- UL94 V-0
- Min Operating Temperature :
- -67°C
- Lead Length :
- 3.43mm
- Overall Contact Length :
- 0.550 13.97mm
- Mount :
- Through Hole
- Mating Retention :
- With
- Packaging :
- Bulk
- Lifecycle Status :
- ACTIVE (Last Updated: 4 days ago)
- Number of Positions :
- 8
- Housing Material :
- Polyester
- PCB Mounting Orientation :
- Vertical
- Height :
- 8.81mm
- Housing Color :
- Black
- Datasheets
- 3-647609-8
MTA-100 Series 1-Row Header Solder Copper Alloy Bulk Through Hole Tin Polybutylene Terephthalate (PBT), Glass Filled 8-Position Board to Cable/Wire 0.347 8.81mm Height
3-647609-8 Overview
The product comes in a package of Header.Through Hole is the type of mounting for the device.To package the product, a Bulk case is used.The product is a member of the MTA-100 Series.Use it when the temperature is below 221°C.Temperatures below -67°C are required for this device to operate.The device may be used for the following applications: General Purpose.It is more powerful in many ways due to its Board Guide feature.It is mounted by Through Hole.Its operating supply voltage is 250V.It operates at an operating temperature of -55°C~105°C.
3-647609-8 Features
MTA-100 series
3-647609-8 Applications
There are a lot of TE Connectivity AMP Connectors
3-647609-8 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
