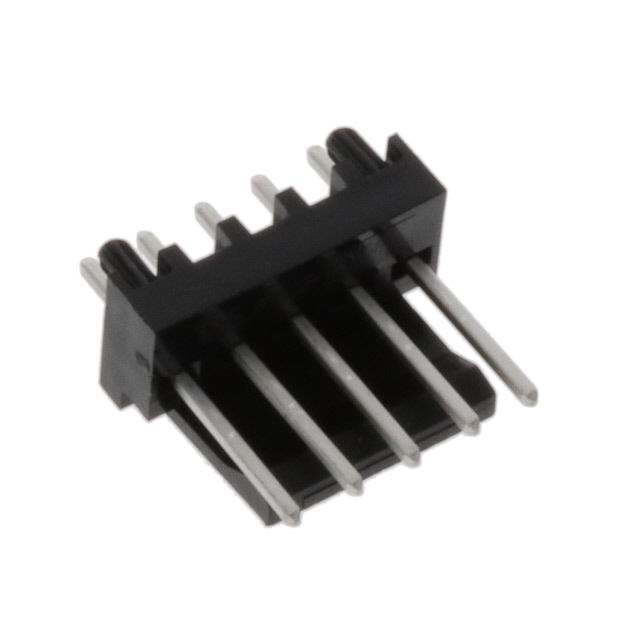

3-647609-5
Or copy the link below:
- Mfr.Part #
- 3-647609-5
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 5POS 2.54MM
- Stock
- 1,025
- In Stock ：
- 1,025
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Operating Temperature :
- -55°C~105°C
- Insulation Height :
- 0.347 8.81mm
- Contact Shape :
- Square
- Current Rating (Amps) :
- Varies by WireGAuge
- Min Operating Temperature :
- -67°C
- Plating :
- Tin
- Packaging :
- Bulk
- Circuit Application :
- Signal
- Material Flammability Rating :
- UL94 V-0
- Insulation Material :
- Polybutylene Terephthalate (PBT), Glass Filled
- Pitch :
- 2.54mm
- Number of Rows :
- 1
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Sealable :
- No
- Flammability Rating :
- UL94 V-0
- Feature :
- Board Guide
- Height :
- 8.81mm
- Factory Lead Time :
- 19 Weeks
- Published :
- 2008
- Termination :
- Solder
- Contact Finish - Post :
- Tin
- Color :
- Black
- Contact Type :
- Male Pin
- Number of Positions Loaded :
- All
- Max Operating Temperature :
- 221°C
- Overall Contact Length :
- 0.550 13.97mm
- Approval Agency :
- CSA
- Style :
- Board to Cable/Wire
- Contact Material :
- COPPER ALLOY
- Contact Gender :
- Male
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Mounting Type :
- Through Hole
- PCB Mount Alignment :
- With
- Length - Tail :
- 3.43mm
- Radiation Hardening :
- No
- Pitch - Mating :
- 0.100 2.54mm
- Contact Length - Post :
- 0.135 3.43mm
- Contact Style :
- Straight
- Shrouding :
- Shrouded - 1 Wall
- Mating Post Length :
- 7.37mm
- PCB Mounting Orientation :
- Vertical
- Underplate Material :
- Nickel
- Contact Current Rating :
- 5A
- Connector Type :
- Header
- PCB Mount Retention :
- With
- Orientation :
- Vertical
- Housing Color :
- Black
- Plating Thickness :
- 6.3μm
- Current Rating :
- 5A
- Insulation Color :
- Black
- Contact Plating :
- Tin
- Series :
- MTA-100
- Number of Contacts :
- 5
- PCB Thickness :
- 1.5748mm
- Contact Length - Mating :
- 0.290 7.37mm
- Fastening Type :
- Friction Lock
- ELV :
- Compliant
- Operating Supply Voltage :
- 250V
- Applications :
- GENERAL PURPOSE
- Housing Material :
- Polyester
- Lead Length :
- 3.43mm
- Contact Finish - Mating :
- Tin
- RoHS Status :
- RoHS Compliant
- Mating Retention :
- With
- Mount :
- Through Hole
- Voltage - Rated :
- 250VAC
- Number of Positions :
- 5
- Datasheets
- 3-647609-5
MTA-100 Series 1-Row Header Solder Copper Alloy Bulk Through Hole Tin Polybutylene Terephthalate (PBT), Glass Filled 5-Position Board to Cable/Wire 0.347 8.81mm Height
3-647609-5 Overview
Currently, it is packaged in Header.The mounting type of the device is Through Hole.A Bulk case is used to package the product.A product of the MTA-100 Series, it belongs to the range of products of that series.A temperature below 221°C is best for using it.The device must run at -67°C degrees.This device may be used for the purpose of General Purpose.A number of features make the Board Guide feature more powerful.Through Hole represents the mounting point for the part.You're going to need 250V to power this memory.-55°C~105°C Operating Temperature is the default operating temperature for the device.
3-647609-5 Features
MTA-100 series
3-647609-5 Applications
There are a lot of TE Connectivity AMP Connectors
3-647609-5 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
