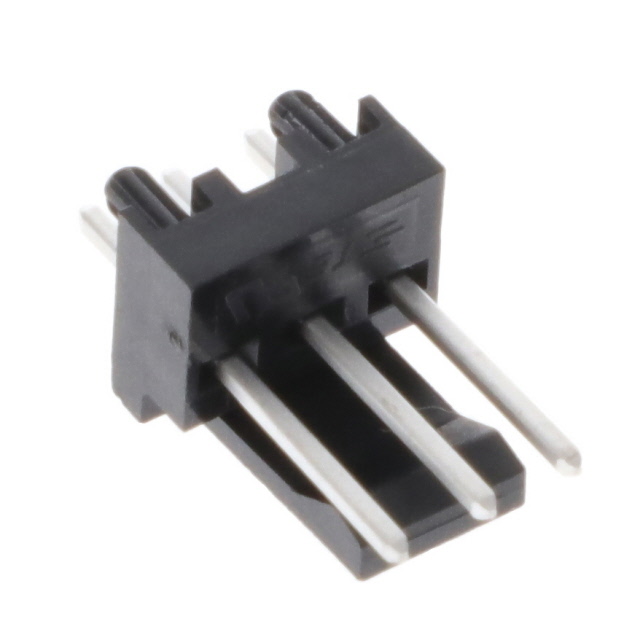

3-647609-3
Or copy the link below:
- Mfr.Part #
- 3-647609-3
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 3POS 2.54MM
- Stock
- 12
- In Stock ：
- 12
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Number of Positions Loaded :
- All
- Series :
- MTA-100
- Operating Temperature :
- -55°C~105°C
- Housing Color :
- Black
- Current Rating (Amps) :
- Varies by WireGAuge
- Insulation Color :
- Black
- Lead Length :
- 3.43mm
- Orientation :
- Vertical
- Contact Material :
- COPPER ALLOY
- Mounting Type :
- Through Hole
- Contact Type :
- Male Pin
- Max Voltage Rating (AC) :
- 250V
- Color :
- Black
- Feature :
- Board Guide
- Length :
- 7.62mm
- Number of Positions :
- 3
- Housing Material :
- Polyester
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Connector Type :
- Header
- Shrouding :
- Shrouded - 1 Wall
- Mount :
- Through Hole
- Contact Finish - Mating :
- Tin
- Applications :
- GENERAL PURPOSE
- PCB Mount Retention :
- With
- Lifecycle Status :
- ACTIVE (Last Updated: 5 days ago)
- Number of Contacts :
- 3
- Contact Current Rating :
- 5A
- Contact Gender :
- Male
- Overall Contact Length :
- 0.550 13.97mm
- Current Rating :
- 5A
- Depth :
- 6.35mm
- Radiation Hardening :
- No
- Max Operating Temperature :
- 221°C
- Underplate Material :
- Nickel
- Published :
- 2008
- Sealable :
- No
- Contact Resistance :
- 6mOhm
- Style :
- Board to Cable/Wire
- Contact Shape :
- Square
- Termination :
- Solder
- Insulation Material :
- Polybutylene Terephthalate (PBT), Glass Filled
- Pitch :
- 2.54mm
- Contact Length - Mating :
- 0.290 7.37mm
- Length - Tail :
- 3.43mm
- RoHS Status :
- RoHS Compliant
- Plating Thickness :
- 6.3μm
- PCB Mounting Orientation :
- Vertical
- ELV :
- Compliant
- Contact Style :
- Straight
- Operating Supply Voltage :
- 250V
- Approval Agency :
- CSA
- Mating Retention :
- With
- Voltage - Rated :
- 250VAC
- Contact Plating :
- Tin
- Insulation Height :
- 0.347 8.81mm
- Contact Length - Post :
- 0.135 3.43mm
- Circuit Application :
- Signal
- Mating Post Length :
- 7.37mm
- Min Operating Temperature :
- -67°C
- Plating :
- Tin
- Contact Finish - Post :
- Tin
- PCB Mount Alignment :
- With
- Flammability Rating :
- UL94 V-0
- Number of Rows :
- 1
- Height :
- 8.81mm
- Packaging :
- Bulk
- Fastening Type :
- Friction Lock
- Factory Lead Time :
- 19 Weeks
- PCB Thickness :
- 1.5748mm
- Material Flammability Rating :
- UL94 V-0
- Pitch - Mating :
- 0.100 2.54mm
- Datasheets
- 3-647609-3
MTA-100 Series 1-Row Header Solder Copper Alloy Bulk Through Hole Tin Polybutylene Terephthalate (PBT), Glass Filled 3-Position Board to Cable/Wire 0.347 8.81mm Height
3-647609-3 Overview
This product is packaged in a Header box.Through Hole indicates that the device is mounted.An Bulk case is utilized for packaging the product.The product is a part of the MTA-100 Series.Use it below 221°C.A minimum temperature of -67°C must be maintained for the operation of this device.There is the possibility of using the device for General Purpose.In many ways, Board Guide makes it more powerful.By Through Hole, the part is mounted.The operating voltage of this memory is 250V.Operating temperature is set to -55°C~105°C.
3-647609-3 Features
MTA-100 series
3-647609-3 Applications
There are a lot of TE Connectivity AMP Connectors
3-647609-3 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
