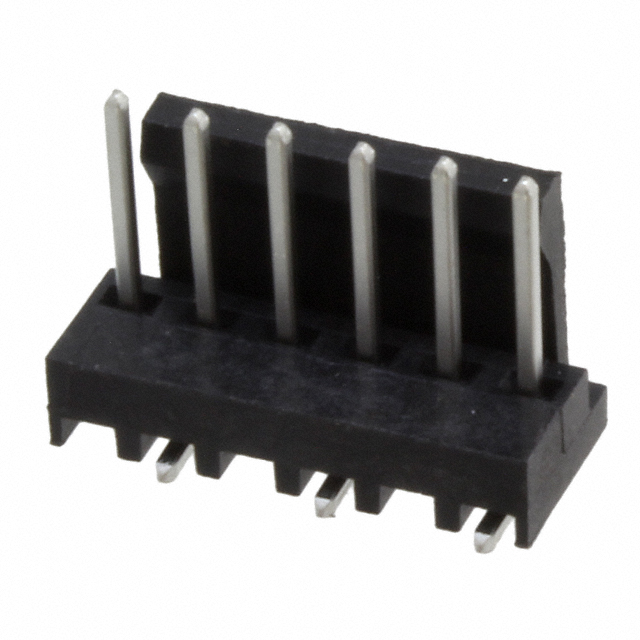

3-647502-6
Or copy the link below:
- Mfr.Part #
- 3-647502-6
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER SMD 6POS 2.54MM
- Stock
- 685
- In Stock ：
- 685
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Housing Material :
- Nylon
- Height :
- 8.81mm
- Current Rating :
- 5A
- Contact Gender :
- Male
- Housing Color :
- Black
- Length :
- 15.24mm
- Contact Finish - Mating :
- Tin
- Approval Agency :
- CSA
- Mounting Type :
- Surface Mount
- Insulation Material :
- Polyamide (PA46), Nylon 4/6
- PCB Mount Retention :
- Without
- Circuit Application :
- Signal
- Color :
- Black
- Lead Free :
- Lead Free
- Lifecycle Status :
- ACTIVE (Last Updated: 2 days ago)
- Published :
- 2012
- Current Rating (Amps) :
- Varies by WireGAuge
- Fastening Type :
- Friction Lock
- Voltage - Rated :
- 250VAC
- Contact Type :
- Male Pin
- Flammability Rating :
- UL94 V-0
- Contact Finish - Post :
- Tin
- PCB Thickness :
- 1.6002mm
- Material Flammability Rating :
- UL94 V-0
- VDE Tested :
- No
- Plating :
- Tin
- Mount :
- Surface Mount
- Operating Supply Voltage :
- 250V
- Insulation Color :
- Black
- Number of Contacts :
- 6
- Termination :
- Solder
- Orientation :
- Vertical
- Max Operating Temperature :
- 221°C
- Packaging :
- Cut Tape (CT)
- Number of Positions Loaded :
- All
- Contact Material :
- COPPER ALLOY
- Mating Post Length :
- 7.37mm
- Min Operating Temperature :
- -67°C
- Sealable :
- No
- Factory Lead Time :
- 19 Weeks
- PCB Mount Alignment :
- Without
- Applications :
- GENERAL PURPOSE
- Pitch :
- 2.54mm
- Operating Temperature :
- -55°C~105°C
- RoHS Status :
- RoHS Compliant
- Contact Current Rating :
- 5A
- Series :
- MTA-100
- Contact Length - Mating :
- 0.290 7.37mm
- Number of Positions :
- 6
- Style :
- Board to Cable/Wire
- Contact Shape :
- Square
- Contact Plating :
- Tin
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Connector Type :
- Header
- Number of Rows :
- 1
- Contact Style :
- Straight
- Shrouding :
- Unshrouded
- Mating Retention :
- With
- Pitch - Mating :
- 0.100 2.54mm
- PCB Mounting Orientation :
- Vertical
- ELV :
- Compliant
- Insulation Height :
- 0.347 8.81mm
- Datasheets
- 3-647502-6
MTA-100 Series 1-Row Header Solder Copper Alloy Cut Tape (CT) Surface Mount Tin Polyamide (PA46), Nylon 4/6 6-Position Board to Cable/Wire 0.347 8.81mm Height
3-647502-6 Overview
Currently, it is packaged in Header.The mounting type of the device is Surface Mount.A Cut Tape (CT) case is used to package the product.A product of the MTA-100 Series, it belongs to the range of products of that series.A temperature below 221°C is best for using it.The device must run at -67°C degrees.This device may be used for the purpose of General Purpose.Surface Mount represents the mounting point for the part.You're going to need 250V to power this memory.-55°C~105°C Operating Temperature is the default operating temperature for the device.
3-647502-6 Features
MTA-100 series
3-647502-6 Applications
There are a lot of TE Connectivity AMP Connectors
3-647502-6 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
