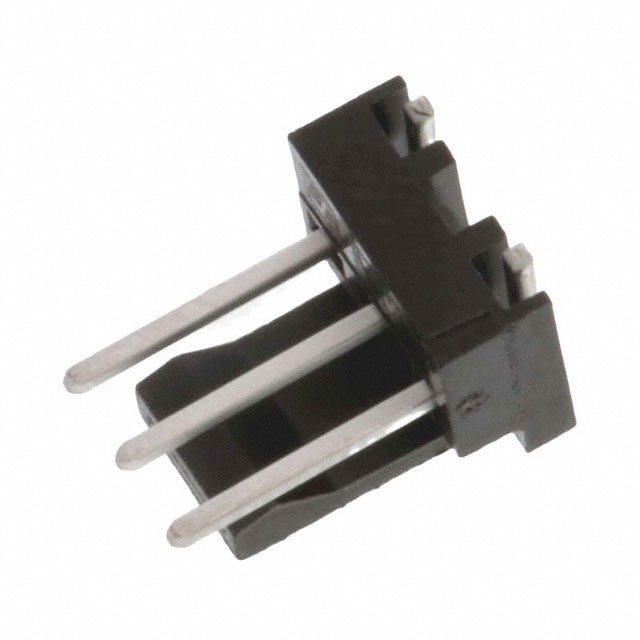

3-647502-3
Or copy the link below:
- Mfr.Part #
- 3-647502-3
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER SMD 3POS 2.54MM
- Stock
- 3,673
- In Stock ：
- 3,673
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Contact Plating :
- Tin
- Mount :
- Surface Mount
- Orientation :
- Vertical
- Voltage - Rated :
- 250VAC
- Insulation Height :
- 0.347 8.81mm
- Height :
- 8.81mm
- Shrouding :
- Unshrouded
- PCB Mount Retention :
- Without
- RoHS Status :
- RoHS Compliant
- Number of Rows :
- 1
- Radiation Hardening :
- No
- Contact Shape :
- Square
- Published :
- 2013
- PCB Mounting Orientation :
- Vertical
- Number of Positions Loaded :
- All
- Min Operating Temperature :
- -67°C
- Fastening Type :
- Friction Lock
- Style :
- Board to Cable/Wire
- Mounting Type :
- Surface Mount
- Approval Agency :
- CSA
- Lead Free :
- Lead Free
- Operating Supply Voltage :
- 250V
- Sealable :
- No
- Contact Current Rating :
- 5A
- Packaging :
- Tape and Reel (TR)
- VDE Tested :
- No
- Lifecycle Status :
- ACTIVE (Last Updated: 4 days ago)
- Contact Finish - Post :
- Tin
- Plating :
- Tin
- Pitch - Mating :
- 0.100 2.54mm
- Length :
- 7.62mm
- Mating Retention :
- With
- Mating Post Length :
- 7.37mm
- Insulation Color :
- Black
- Insulation Material :
- Polyamide (PA46), Nylon 4/6
- Material Flammability Rating :
- UL94 V-0
- Housing Color :
- Black
- Factory Lead Time :
- 19 Weeks
- Contact Type :
- Male Pin
- ELV :
- Compliant
- Operating Temperature :
- -55°C~105°C
- Max Operating Temperature :
- 221°C
- Depth :
- 8.08mm
- PCB Thickness :
- 1.6002mm
- Number of Contacts :
- 3
- Contact Length - Mating :
- 0.290 7.37mm
- Gender :
- Male
- Termination :
- Solder
- Connector Type :
- Header
- Contact Material :
- COPPER ALLOY
- PCB Mount Alignment :
- Without
- Contact Finish - Mating :
- Tin
- Housing Material :
- Nylon
- Number of Positions :
- 3
- Series :
- MTA-100
- Circuit Application :
- Signal
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Applications :
- GENERAL PURPOSE
- Flammability Rating :
- UL94 V-0
- Pitch :
- 2.54mm
- Current Rating (Amps) :
- Varies by WireGAuge
- Contact Style :
- Straight
- Current Rating :
- 5A
- Datasheets
- 3-647502-3
MTA-100 Series 1-Row Header Solder Copper Alloy Tape & Reel (TR) Surface Mount Tin Polyamide (PA46), Nylon 4/6 3-Position Board to Cable/Wire 0.347 8.81mm Height
3-647502-3 Overview
Packaging is in the form of Header.This device has a Surface Mount mounting type.An orange Tape & Reel (TR) case is used to package the product.Specifically, it is one of the products in the MTA-100 Series.If the temperature is below 221°C, it's best to use it.-67°C is the minimum temperature for this device.There are a variety of possible applications for this device, including General Purpose.There is a mounting hole at Surface Mount.It runs on 250V voltage.Devices operate at -55°C~105°C operating temperatures.
3-647502-3 Features
MTA-100 series
3-647502-3 Applications
There are a lot of TE Connectivity AMP Connectors
3-647502-3 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
