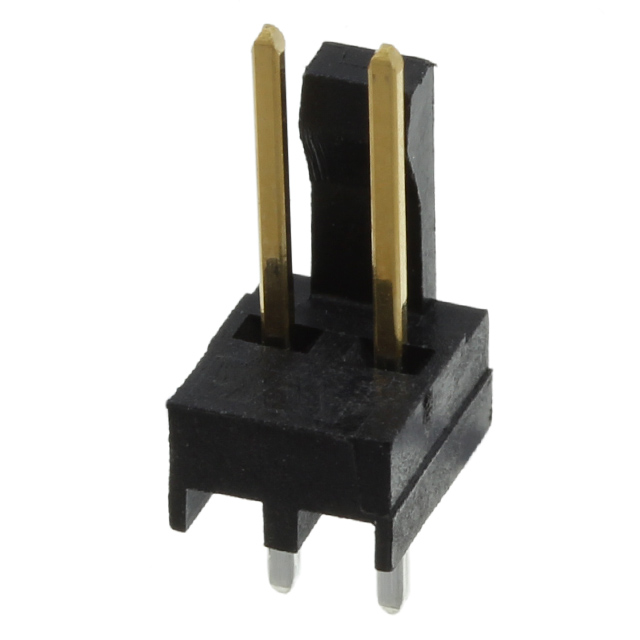

3-647296-2
Or copy the link below:
- Mfr.Part #
- 3-647296-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 2POS 2.54MM
- Stock
- 37,693
- In Stock ：
- 37,693
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Fastening Type :
- Friction Lock
- Contact Finish - Post :
- Tin
- Color :
- Black
- Length - Tail :
- 3.43mm
- PCB Mount Alignment :
- Without
- Radiation Hardening :
- No
- Termination :
- Solder
- Applications :
- GENERAL PURPOSE
- Approval Agency :
- CSA
- Contact Length - Post :
- 0.135 3.43mm
- Contact Current Rating :
- 5A
- Number of Positions Loaded :
- All
- Lifecycle Status :
- ACTIVE (Last Updated: 5 months ago)
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Published :
- 2011
- Pitch - Mating :
- 0.100 2.54mm
- Shrouding :
- Shrouded - 1 Wall
- Mating Retention :
- With
- PCB Mount Retention :
- Without
- Orientation :
- Vertical
- Housing Material :
- Nylon
- Pitch :
- 2.54mm
- Insulation Height :
- 0.347 8.81mm
- Series :
- MTA-100
- Number of Rows :
- 1
- Contact Length - Mating :
- 0.290 7.37mm
- Insulation Color :
- Black
- Mounting Type :
- Through Hole
- Current Rating (Amps) :
- Varies by WireGAuge
- Contact Finish Thickness - Post :
- 150.0μin 3.81μm
- Flammability Rating :
- UL94 V-0
- RoHS Status :
- RoHS Compliant
- Material Flammability Rating :
- UL94 V-0
- Contact Style :
- Straight
- Contact Plating :
- Tin, Gold
- Insulation Material :
- Polyamide (PA4T), Nylon 4T
- PCB Thickness :
- 1.5748mm
- Operating Temperature :
- -55°C~105°C
- Voltage - Rated :
- 250VAC
- Contact Gender :
- Male
- Circuit Application :
- Signal
- Length :
- 5.08mm
- Plating :
- Gold
- Mating Post Length :
- 7.37mm
- Operating Supply Voltage :
- 250V
- Plating Thickness :
- 380 nm
- ELV :
- Compliant
- Contact Shape :
- Square
- Min Operating Temperature :
- -67°C
- Number of Contacts :
- 2
- Connector Type :
- Header
- Max Operating Temperature :
- 221°C
- Underplate Material :
- Nickel
- Factory Lead Time :
- 16 Weeks
- Housing Color :
- Black
- Contact Finish - Mating :
- Gold
- Number of Positions :
- 2
- Current Rating :
- 5A
- Overall Contact Length :
- 0.550 13.97mm
- Sealable :
- No
- PCB Mounting Orientation :
- Vertical
- Contact Type :
- Male Pin
- Contact Finish Thickness - Mating :
- 15.0μin 0.38μm
- Mount :
- Through Hole
- Packaging :
- Tube
- Style :
- Board to Cable/Wire
- Contact Material :
- COPPER ALLOY
- Lead Length :
- 3.18mm
- Height :
- 8.81mm
- Datasheets
- 3-647296-2
MTA-100 Series 1-Row Header Solder Copper Alloy Tube Through Hole Gold Polyamide (PA4T), Nylon 4T 2-Position Board to Cable/Wire 0.347 8.81mm Height
3-647296-2 Overview
Packaging for this item is Header.There is a mounting type of Through Hole for this device.It is necessary to use a Tube case for packaging the product.This product is part of the MTA-100 Series.You should use it when it's below 221°C.A minimum temperature of -67°C is required for the operation of this device.A possible application for the device is General Purpose.Through Hole is used to mount the part.The operating supply voltage of this memory is 250V.In this case, the device operates at -55°C~105°C Operating Temperature.
3-647296-2 Features
MTA-100 series
3-647296-2 Applications
There are a lot of TE Connectivity AMP Connectors
3-647296-2 Rectangular Connectors applications.
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
