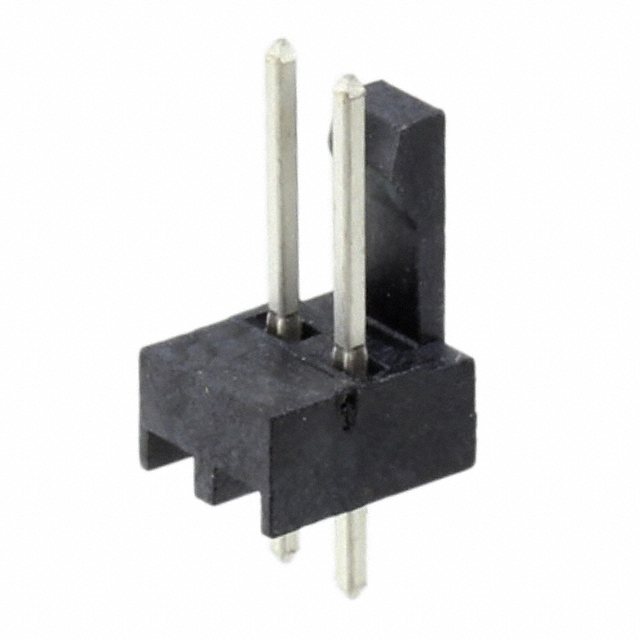

3-647295-2
Or copy the link below:
- Mfr.Part #
- 3-647295-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 2POS 2.54MM
- Stock
- 16,567
- In Stock ：
- 16,567
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Contact Type :
- Male Pin
- Min Operating Temperature :
- -67°C
- Voltage - Rated :
- 250VAC
- Orientation :
- Vertical
- Length - Tail :
- 3.43mm
- Contact Finish Thickness - Mating :
- 80.0μin 2.03μm
- Contact Style :
- Straight
- Contact Length - Mating :
- 0.290 7.37mm
- Contact Finish - Mating :
- Tin
- PCB Mount Alignment :
- Without
- Termination :
- Solder
- PCB Mounting Orientation :
- Vertical
- PCB Thickness :
- 1.5748mm
- Style :
- Board to Cable/Wire
- Max Voltage Rating (AC) :
- 250V
- Contact Gender :
- Male
- Housing Color :
- Black
- Mounting Type :
- Through Hole
- Material Flammability Rating :
- UL94 V-0
- Circuit Application :
- Signal
- Pitch - Mating :
- 0.100 2.54mm
- Number of Contacts :
- 2
- Factory Lead Time :
- 18 Weeks
- Contact Shape :
- Square
- Plating Thickness :
- 6.3μm
- Color :
- Black
- Fastening Type :
- Friction Lock
- Contact Material :
- COPPER ALLOY
- Contact Finish - Post :
- Tin
- Contact Length - Post :
- 0.135 3.43mm
- Length :
- 5.08mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Current Rating :
- 5A
- Overall Contact Length :
- 0.550 13.97mm
- Current Rating (Amps) :
- Varies by WireGAuge
- Mating Post Length :
- 7.37mm
- Underplate Material :
- Nickel
- Approval Agency :
- CSA
- Packaging :
- Tube
- Connector Type :
- Header
- Insulation Color :
- Black
- Contact Current Rating :
- 5A
- Lead Length :
- 3.18mm
- Mating Retention :
- With
- Contact Finish Thickness - Post :
- 150.0μin 3.81μm
- Number of Rows :
- 1
- Number of Positions Loaded :
- All
- Insulation Height :
- 0.347 8.81mm
- Series :
- MTA-100
- Contact Plating :
- Tin
- RoHS Status :
- RoHS Compliant
- Pitch :
- 2.54mm
- Radiation Hardening :
- No
- PCB Mount Retention :
- Without
- Mount :
- Through Hole
- Insulation Material :
- Polyamide (PA4T), Nylon 4T
- Operating Supply Voltage :
- 250V
- Housing Material :
- Nylon
- Flammability Rating :
- UL94 V-0
- Shrouding :
- Shrouded - 1 Wall
- Operating Temperature :
- -55°C~105°C
- Published :
- 2009
- Applications :
- GENERAL PURPOSE
- Sealable :
- No
- Depth :
- 6.35mm
- Lifecycle Status :
- ACTIVE (Last Updated: 22 hours ago)
- Contact Resistance :
- 6mOhm
- Max Operating Temperature :
- 221°C
- ELV :
- Compliant
- Number of Positions :
- 2
- Height :
- 8.81mm
- Plating :
- Tin
- Datasheets
- 3-647295-2
MTA-100 Series 1-Row Header Solder Copper Alloy Tube Through Hole Tin Polyamide (PA4T), Nylon 4T 2-Position Board to Cable/Wire 0.347 8.81mm Height
3-647295-2 Overview
A Header package is included with it.Its mounting type is Through Hole.Packaging is performed using a Tube case.It is part of the MTA-100 Series of products.Whenever it's below 221°C, it's best to use it.The device must operate at a temperature of -67°C at all times.It is possible for the device to be used for the application General Purpose.Through Hole mounts the part.A voltage of 250V is required to operate this memory.There is no operating temperature for the device.
3-647295-2 Features
MTA-100 series
3-647295-2 Applications
There are a lot of TE Connectivity AMP Connectors
3-647295-2 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
