3-647168-3
Or copy the link below:
- Mfr.Part #
- 3-647168-3
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER SMD 3POS 2.54MM
- Stock
- 19,760
- In Stock ：
- 19,760
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Pitch - Mating :
- 0.100 2.54mm
- Shrouding :
- Shrouded - 1 Wall
- Lifecycle Status :
- ACTIVE (Last Updated: 2 days ago)
- Series :
- MTA-100
- Mating Retention :
- With
- Contact Current Rating :
- 5A
- Filter Feature :
- No
- Published :
- 2008
- Material Flammability Rating :
- UL94 V-0
- Insulation Material :
- Polyamide (PA46), Nylon 4/6
- Lead Free :
- Lead Free
- Mounting Type :
- Surface Mount
- Contact Plating :
- Gold, Tin
- Approval Agency :
- CSA
- PCB Thickness :
- 250μm
- Contact Gender :
- Male
- Applications :
- GENERAL PURPOSE
- Contact Length - Mating :
- 0.290 7.37mm
- Connector Type :
- Header
- Voltage - Rated AC :
- 250V
- Plating Thickness :
- 1.27μm
- Fastening Type :
- Friction Lock
- Number of Conductors :
- ONE
- PCB Contact Row Spacing :
- 2.9972 mm
- Packaging :
- Bulk
- Termination :
- Solder
- Depth :
- 6.35mm
- Sealable :
- No
- Pbfree Code :
- yes
- Circuit Application :
- Signal
- Number of Positions Loaded :
- All
- DIN Conformance :
- No
- Contact Material :
- COPPER ALLOY
- Housing Material :
- Nylon
- Contact Finish - Post :
- Tin
- Max Voltage Rating (AC) :
- 250V
- Dielectric Withstanding Voltage :
- 750VAC V
- Current Rating (Amps) :
- Varies by WireGAuge
- Orientation :
- Vertical
- MIL Conformance :
- No
- Insulation Color :
- Black
- Insulation Height :
- 0.347 8.81mm
- Lead Length :
- 3.18mm
- Current Rating :
- 5A
- Number of Positions :
- 3
- Length :
- 7.62mm
- Contact Style :
- Straight
- Contact Type :
- Male Pin
- Mating Post Length :
- 7.37mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- PCB Mount Alignment :
- Without
- Terminal Pitch :
- 2.54mm
- Reliability :
- COMMERCIAL
- Factory Lead Time :
- 15 Weeks
- Underplate Material :
- Nickel
- Contact Resistance :
- 6mOhm
- ELV :
- Compliant
- Insulation Resistance :
- 5000000000Ohm
- Mixed Contacts :
- No
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- Polarization Key :
- POLARIZED HOUSING
- Number Of PCB Rows :
- 2
- Voltage - Rated :
- 250VAC
- Style :
- Board to Cable/Wire
- Durability :
- 25 Cycles
- RoHS Status :
- RoHS Compliant
- PCB Contact Pattern :
- STAGGERED
- Insertion Force-Max :
- 8.896 N
- Mount :
- Surface Mount
- Operating Temperature :
- -55°C~105°C
- Contact Shape :
- Square
- Height :
- 8.81mm
- Operating Supply Voltage :
- 250V
- Body Breadth :
- 0.25 inch
- Contact Finish - Mating :
- Gold
- Number of Rows :
- 1
- Total Number of Contacts :
- 3
- IEC Conformance :
- No
- Flammability Rating :
- UL94 V-0
- Datasheets

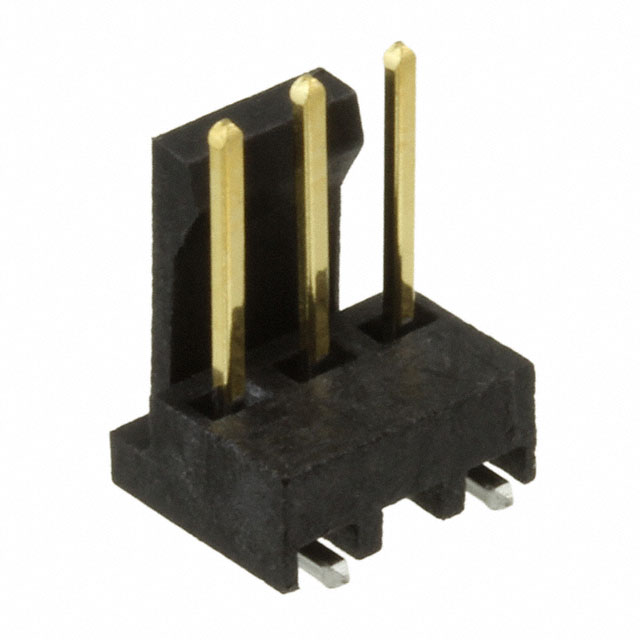

- 3-647168-3
MTA-100 Series 1-Row Header Solder Copper Alloy Bulk Surface Mount Gold Polyamide (PA46), Nylon 4/6 3-Position Board to Cable/Wire 0.347 8.81mm Height
3-647168-3 Overview
Currently, it is packaged in Header.The mounting type of the device is Surface Mount.A Bulk case is used to package the product.A product of the MTA-100 Series, it belongs to the range of products of that series.This device may be used for the purpose of General Purpose.Surface Mount represents the mounting point for the part.You're going to need 250V to power this memory.-55°C~105°C Operating Temperature is the default operating temperature for the device.
