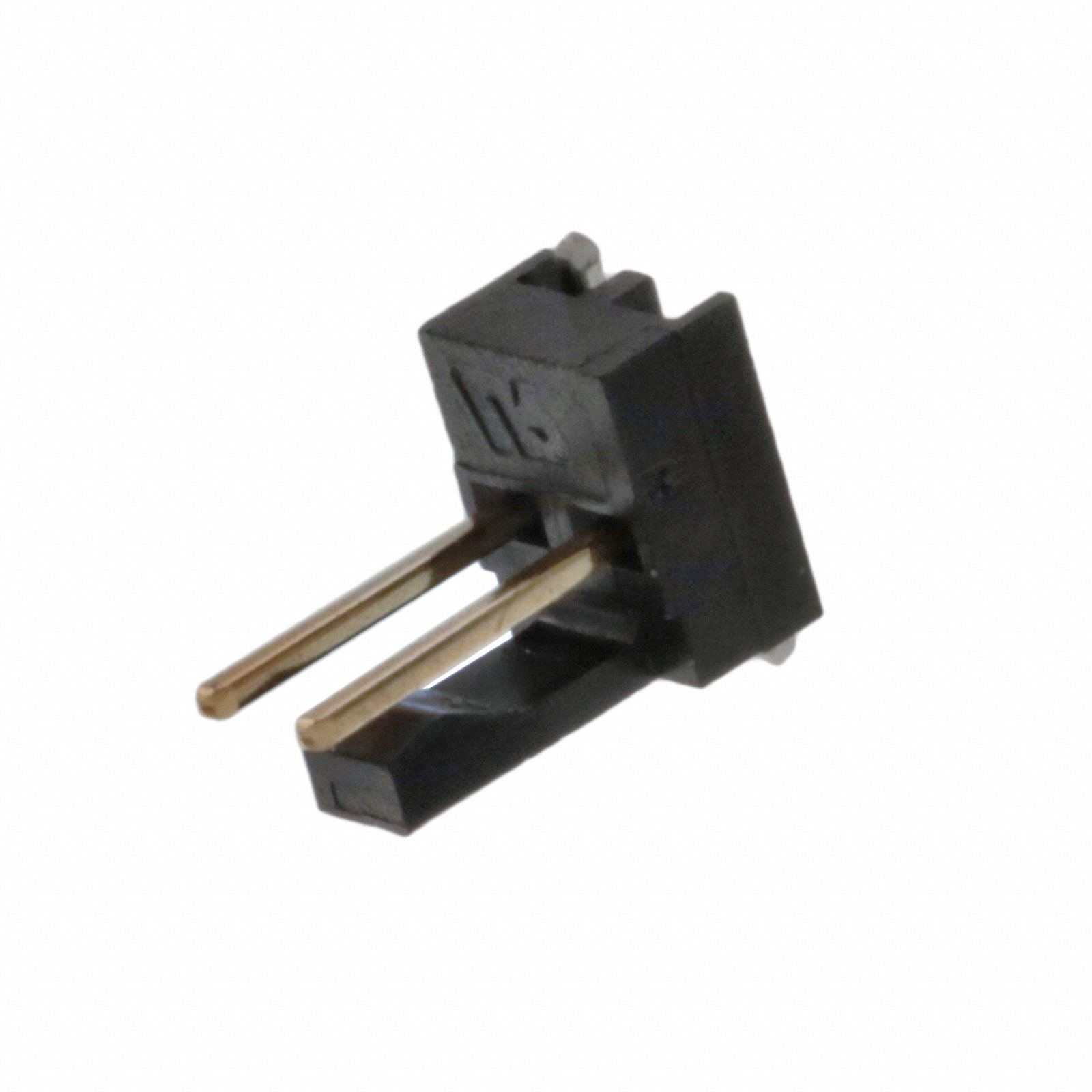

3-647167-2
Or copy the link below:
- Mfr.Part #
- 3-647167-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER SMD 2POS 2.54MM
- Stock
- 4
- In Stock ：
- 4
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Style :
- Board to Cable/Wire
- Termination :
- Solder
- Voltage - Rated AC :
- 250V
- Lead Length :
- 3.18mm
- PCB Thickness :
- 250μm
- Circuit Application :
- Signal
- Shrouding :
- Shrouded - 1 Wall
- Published :
- 2008
- Flammability Rating :
- UL94 V-0
- Operating Supply Voltage :
- 250V
- Number of Contacts :
- 2
- Number of Positions Loaded :
- All
- Contact Length - Mating :
- 0.290 7.37mm
- Factory Lead Time :
- 19 Weeks
- Insulation Color :
- Black
- Lead Free :
- Lead Free
- Plating Thickness :
- 380 nm
- Contact Style :
- Straight
- PCB Mounting Orientation :
- Vertical
- Voltage - Rated :
- 250VAC
- Contact Finish - Mating :
- Gold
- Contact Type :
- Male Pin
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Housing Material :
- Nylon
- Lifecycle Status :
- ACTIVE (Last Updated: 5 months ago)
- Current Rating (Amps) :
- Varies by WireGAuge
- Contact Finish - Post :
- Tin
- PCB Mount Alignment :
- Without
- Length :
- 5.08mm
- Contact Gender :
- Male
- Material Flammability Rating :
- UL94 V-0
- Max Voltage Rating (AC) :
- 250V
- Underplate Material :
- Nickel
- Mounting Type :
- Surface Mount
- PCB Mount Retention :
- Without
- Contact Plating :
- Gold, Tin
- Height :
- 8.81mm
- Radiation Hardening :
- No
- Contact Current Rating :
- 5A
- Series :
- MTA-100
- Packaging :
- Bulk
- Number of Positions :
- 2
- RoHS Status :
- RoHS Compliant
- Operating Temperature :
- -55°C~105°C
- Color :
- Black
- Contact Finish Thickness - Mating :
- 15.0μin 0.38μm
- Insulation Material :
- Polyamide (PA46), Nylon 4/6
- Pitch :
- 2.54mm
- Housing Color :
- Black
- Mount :
- Surface Mount
- Mating Retention :
- With
- Applications :
- GENERAL PURPOSE
- Depth :
- 6.36mm
- Sealable :
- No
- Approval Agency :
- CSA
- ELV :
- Compliant
- Mating Post Length :
- 7.37mm
- Plating :
- Gold
- Fastening Type :
- Friction Lock
- Pitch - Mating :
- 0.100 2.54mm
- Contact Material :
- COPPER ALLOY
- Number of Rows :
- 1
- Max Operating Temperature :
- 221°C
- Orientation :
- Vertical
- Contact Resistance :
- 6mOhm
- Current Rating :
- 5A
- Contact Shape :
- Square
- Min Operating Temperature :
- -67°C
- Insulation Height :
- 0.347 8.81mm
- Connector Type :
- Header
- Datasheets
- 3-647167-2
MTA-100 Series 1-Row Header Solder Copper Alloy Bulk Surface Mount Gold Polyamide (PA46), Nylon 4/6 2-Position Board to Cable/Wire 0.347 8.81mm Height
3-647167-2 Overview
The packaging contains Header.There is a Surface Mount mounting type for the device.This product is packaged in a case marked Bulk.Product number MTA-100 belongs to the MTA-100 Series.Whenever the temperature is below 221°C, it's best.There is a minimum temperature requirement of [0°C] for this device.In addition to General Purpose, there are other possible applications for the device.There is a Surface Mount mount on the part.A 250V voltage is used to supply power to this memory.This device operates at a temperature of -55°C~105°C.
3-647167-2 Features
MTA-100 series
3-647167-2 Applications
There are a lot of TE Connectivity AMP Connectors
3-647167-2 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
