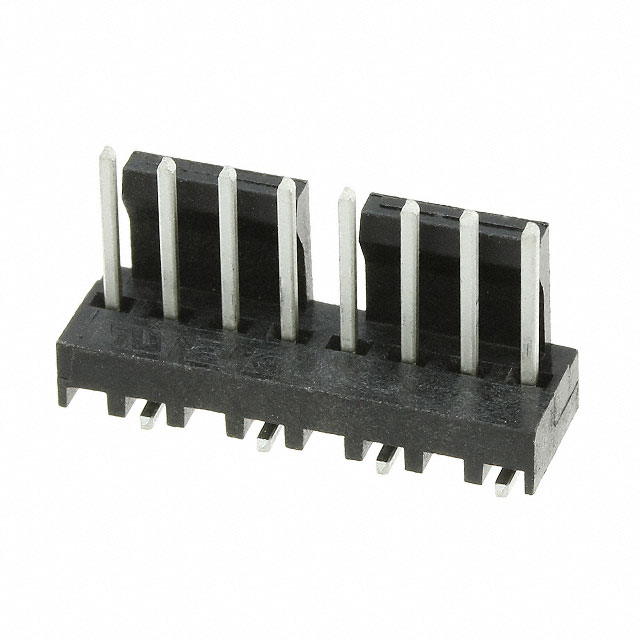

3-647166-8
Or copy the link below:
- Mfr.Part #
- 3-647166-8
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER SMD 8POS 2.54MM
- Stock
- 798
- In Stock ：
- 798
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Operating Supply Voltage :
- 250V
- Insulation Color :
- Black
- Contact Current Rating :
- 5A
- Depth :
- 6.35mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Housing Material :
- Nylon
- Insulation Height :
- 0.347 8.81mm
- Color :
- Black
- Lead Length :
- 3.18mm
- Sealable :
- No
- Contact Length - Mating :
- 0.290 7.37mm
- Underplate Material :
- Nickel
- ELV :
- Compliant
- Number of Positions Loaded :
- All
- Length :
- 20.32mm
- Orientation :
- Vertical
- Voltage - Rated AC :
- 250V
- Lead Free :
- Lead Free
- Mounting Type :
- Surface Mount
- Factory Lead Time :
- 19 Weeks
- Housing Color :
- Black
- Mating Post Length :
- 7.37mm
- Height :
- 8.81mm
- Circuit Application :
- Signal
- Contact Type :
- Male Pin
- Pitch :
- 2.54mm
- Insulation Material :
- Polyamide (PA46), Nylon 4/6
- Min Operating Temperature :
- -67°C
- Max Voltage Rating (AC) :
- 250V
- Current Rating (Amps) :
- Varies by WireGAuge
- RoHS Status :
- RoHS Compliant
- Current Rating :
- 5A
- Plating :
- Tin
- Applications :
- GENERAL PURPOSE
- Shrouding :
- Shrouded - 1 Wall
- Contact Shape :
- Square
- PCB Mount Retention :
- Without
- Contact Material :
- COPPER ALLOY
- Flammability Rating :
- UL94 V-0
- Style :
- Board to Cable/Wire
- Connector Type :
- Header
- Contact Style :
- Straight
- Material Flammability Rating :
- UL94 V-0
- Series :
- MTA-100
- Max Operating Temperature :
- 221°C
- Radiation Hardening :
- No
- Approval Agency :
- CSA
- Number of Positions :
- 8
- Contact Resistance :
- 6mOhm
- Published :
- 2008
- Mating Retention :
- With
- Lifecycle Status :
- ACTIVE (Last Updated: 2 days ago)
- PCB Mounting Orientation :
- Vertical
- Packaging :
- Bulk
- Mount :
- Surface Mount
- Plating Thickness :
- 6.3μm
- Operating Temperature :
- -55°C~105°C
- Voltage - Rated :
- 250VAC
- Contact Finish - Mating :
- Tin
- PCB Mount Alignment :
- Without
- Fastening Type :
- Friction Lock
- Number of Contacts :
- 8
- Termination :
- Solder
- Pitch - Mating :
- 0.100 2.54mm
- Contact Gender :
- Male
- Contact Finish - Post :
- Tin
- PCB Thickness :
- 250μm
- Number of Rows :
- 1
- Contact Plating :
- Tin
- Datasheets
- 3-647166-8
MTA-100 Series 1-Row Header Solder Copper Alloy Bulk Surface Mount Tin Polyamide (PA46), Nylon 4/6 8-Position Board to Cable/Wire 0.347 8.81mm Height
3-647166-8 Overview
The packaging is Header.Mounting type is Surface Mount.To package the product, we use a Bulk case.This product is from the MTA-100 Series.It is best used at temperatures below 221°C.-67°C is the minimum temperature this device can operate at.A possible application is General Purpose.Mounted by Surface Mount.In this memory, the operating supply voltage is 250V.Device runs at -55°C~105°C Operating Temperature.
3-647166-8 Features
MTA-100 series
3-647166-8 Applications
There are a lot of TE Connectivity AMP Connectors
3-647166-8 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
