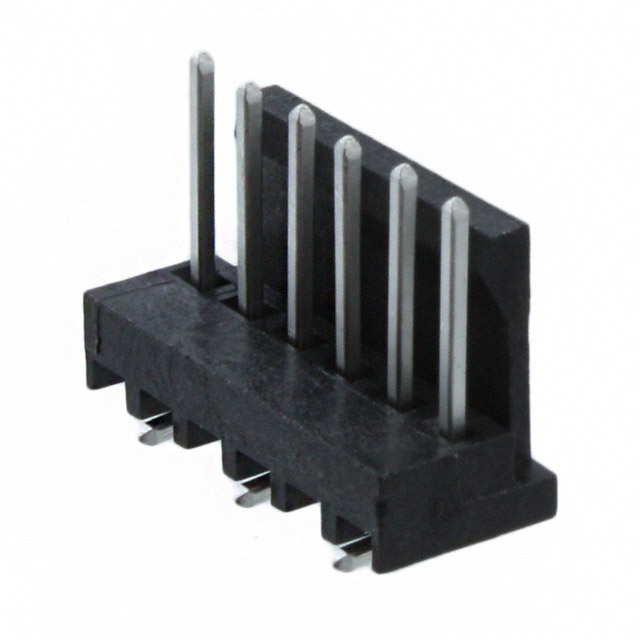

3-647166-6
Or copy the link below:
- Mfr.Part #
- 3-647166-6
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER SMD 6POS 2.54MM
- Stock
- 3,942
- In Stock ：
- 3,942
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Contact Style :
- Straight
- Contact Length - Mating :
- 0.290 7.37mm
- Current Rating :
- 5A
- Contact Material :
- COPPER ALLOY
- Pitch - Mating :
- 0.100 2.54mm
- Mating Retention :
- With
- Termination :
- Solder
- Max Voltage Rating (AC) :
- 250V
- PCB Contact Pattern :
- STAGGERED
- Body Breadth :
- 0.25 inch
- RoHS Status :
- RoHS Compliant
- Connector Type :
- Header
- Housing Material :
- Nylon
- Operating Temperature :
- -55°C~105°C
- Material Flammability Rating :
- UL94 V-0
- Contact Resistance :
- 6mOhm
- Insulation Height :
- 0.347 8.81mm
- Height :
- 8.81mm
- ECCN Code :
- EAR99
- Applications :
- GENERAL PURPOSE
- Dielectric Withstanding Voltage :
- 750VAC V
- Contact Shape :
- Square
- Total Number of Contacts :
- 6
- PCB Thickness :
- 250μm
- Terminal Pitch :
- 2.54mm
- Number of Conductors :
- ONE
- PCB Mount Alignment :
- Without
- Reliability :
- COMMERCIAL
- Polarization Key :
- POLARIZED HOUSING
- Mount :
- Surface Mount
- Series :
- MTA-100
- Number of Positions :
- 6
- Depth :
- 6.35mm
- Orientation :
- Vertical
- Shrouding :
- Shrouded - 1 Wall
- Number of Rows :
- 1
- Operating Supply Voltage :
- 250V
- Number Of PCB Rows :
- 2
- Published :
- 2008
- Mounting Type :
- Surface Mount
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Sealable :
- No
- Contact Current Rating :
- 5A
- Lead Length :
- 3.18mm
- Voltage - Rated :
- 250VAC
- Underplate Material :
- Nickel
- Length :
- 15.24mm
- Contact Type :
- Male Pin
- Circuit Application :
- Signal
- Factory Lead Time :
- 19 Weeks
- Mating Post Length :
- 7.37mm
- Contact Finish - Mating :
- Tin
- Insulation Resistance :
- 5000000000Ohm
- Fastening Type :
- Friction Lock
- Approval Agency :
- CSA
- PCB Contact Row Spacing :
- 2.9972 mm
- REACH SVHC :
- No SVHC
- IEC Conformance :
- No
- Flammability Rating :
- UL94 V-0
- Filter Feature :
- No
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Durability :
- 25 Cycles
- DIN Conformance :
- No
- Housing Color :
- Black
- Style :
- Board to Cable/Wire
- Insulation Material :
- Polyamide (PA46), Nylon 4/6
- MIL Conformance :
- No
- Packaging :
- Bulk
- Mixed Contacts :
- No
- Pbfree Code :
- yes
- Number of Positions Loaded :
- All
- Contact Gender :
- Male
- Current Rating (Amps) :
- Varies by WireGAuge
- Plating Thickness :
- 6.3μm
- Datasheets
- 3-647166-6
MTA-100 Series 1-Row Header Solder Copper Alloy Bulk Surface Mount Tin Polyamide (PA46), Nylon 4/6 6-Position Board to Cable/Wire 0.347 8.81mm Height
3-647166-6 Overview
Packaging is Header.Surface Mount is the mounting type.Packaging for the product is carried out via a Bulk case.As a product of the MTA-100 Series, it can be found in this category.A possible application of the device would be General Purpose.In this case, Surface Mount mounts the part.The memory's operating supply voltage is 250V.The device is operating at -55°C~105°C Operating Temperature.
3-647166-6 Features
MTA-100 series
3-647166-6 Applications
There are a lot of TE Connectivity AMP Connectors
3-647166-6 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
