3-647166-5
Or copy the link below:
- Mfr.Part #
- 3-647166-5
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER SMD 5POS 2.54MM
- Stock
- 3,767
- In Stock ：
- 3,767
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Contact Shape :
- Square
- Length :
- 12.7mm
- Contact Material :
- COPPER ALLOY
- Voltage - Rated :
- 250VAC
- Fastening Type :
- Friction Lock
- Pbfree Code :
- yes
- Operating Supply Voltage :
- 250V
- Height :
- 8.81mm
- Mating Post Length :
- 7.37mm
- Polarization Key :
- POLARIZED HOUSING
- Mount :
- Surface Mount
- Number of Conductors :
- ONE
- Factory Lead Time :
- 19 Weeks
- Lead Length :
- 3.18mm
- REACH SVHC :
- Unknown
- Max Voltage Rating (AC) :
- 250V
- Series :
- MTA-100
- Current Rating (Amps) :
- Varies by WireGAuge
- Termination :
- Solder
- PCB Thickness :
- 250μm
- Sealable :
- No
- Number of Positions :
- 5
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- ECCN Code :
- EAR99
- Contact Gender :
- Male
- Underplate Material :
- Nickel
- Plating Thickness :
- 6.3μm
- Applications :
- GENERAL PURPOSE
- Lifecycle Status :
- ACTIVE (Last Updated: 1 day ago)
- Number of Positions Loaded :
- All
- Orientation :
- Vertical
- Operating Temperature :
- -55°C~105°C
- Circuit Application :
- Signal
- DIN Conformance :
- No
- Approval Agency :
- CSA
- Contact Length - Mating :
- 0.290 7.37mm
- Total Number of Contacts :
- 5
- Insulation Material :
- Polyamide (PA46), Nylon 4/6
- Contact Style :
- Straight
- Contact Type :
- Male Pin
- Insulation Height :
- 0.347 8.81mm
- Material Flammability Rating :
- UL94 V-0
- Mounting Type :
- Surface Mount
- Housing Material :
- Nylon
- Housing Color :
- Black
- Flammability Rating :
- UL94 V-0
- Style :
- Board to Cable/Wire
- Published :
- 2008
- PCB Contact Row Spacing :
- 2.9972 mm
- Mating Retention :
- With
- Packaging :
- Bulk
- Shrouding :
- Shrouded - 1 Wall
- Connector Type :
- Header
- Depth :
- 6.35mm
- Contact Resistance :
- 6mOhm
- Current Rating :
- 5A
- RoHS Status :
- RoHS Compliant
- Number of Rows :
- 1
- PCB Mount Alignment :
- Without
- Contact Current Rating :
- 5A
- Number Of PCB Rows :
- 2
- Mixed Contacts :
- No
- Insertion Force-Max :
- 8.896 N
- Pitch - Mating :
- 0.100 2.54mm
- PCB Contact Pattern :
- STAGGERED
- Filter Feature :
- No
- Reliability :
- COMMERCIAL
- IEC Conformance :
- No
- Contact Finish - Mating :
- Tin
- MIL Conformance :
- No
- Datasheets
- 3-647166-5

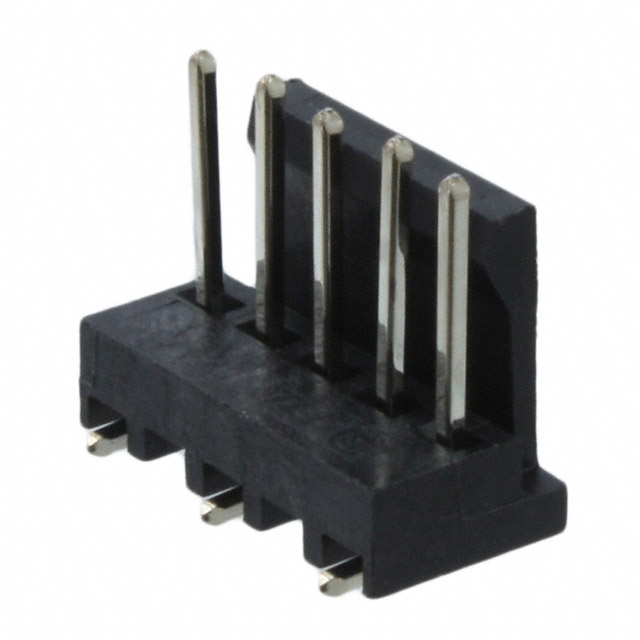

MTA-100 Series 1-Row Header Solder Copper Alloy Bulk Surface Mount Tin Polyamide (PA46), Nylon 4/6 5-Position Board to Cable/Wire 0.347 8.81mm Height
3-647166-5 Overview
Packaging is Header.Surface Mount is the mounting type.Packaging for the product is carried out via a Bulk case.As a product of the MTA-100 Series, it can be found in this category.A possible application of the device would be General Purpose.In this case, Surface Mount mounts the part.The memory's operating supply voltage is 250V.The device is operating at -55°C~105°C Operating Temperature.
3-647166-5 Features
MTA-100 series
3-647166-5 Applications
There are a lot of TE Connectivity AMP Connectors
3-647166-5 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
