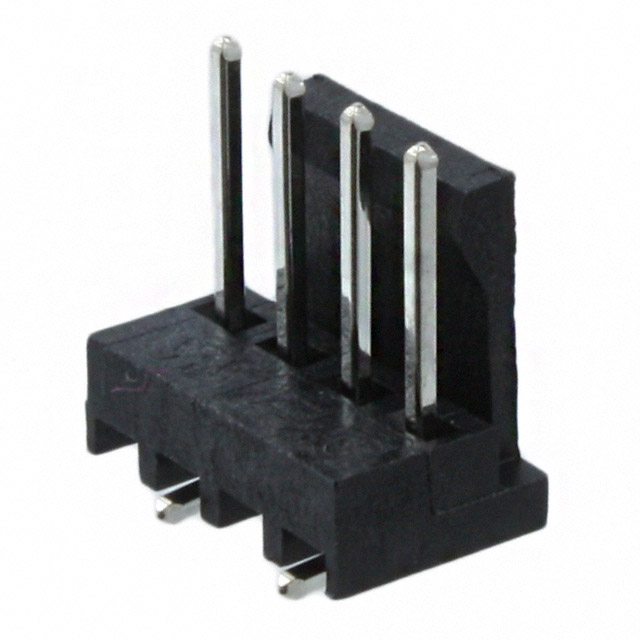

3-647166-4

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Headers, Male Pins

MIL Conformance :

No

Contact Pattern :

RECTANGULAR

Packaging :

Bag/Box

Product Category :

Headers and Wire Housings

Mating Contact Pitch :

0.1 inch

Number of Rows :

1 Row

Housing Color :

Black

Number Of PCB Rows :

2

Dielectric Withstanding Voltage :

750VAC V

Type :

Wire to Board

Mounting Style :

Surface Mount

Mounting Type :

BOARD

Total Number of Contacts :

4

PCB Contact Pattern :

STAGGERED

Reach Compliance Code :

Compliant

Contact Plating :

TIN OVER NICKEL

Pitch :

2.5400 mm

Insulation Resistance :

5000000000 Ω

Product :

Headers

IEC Conformance :

No

Number of Contact Rows :

1

Contact Gender :

Pin (Male)

Contact Material :

COPPER ALLOY

Series :

MTA-100

Body Orientation :

Straight

Contact Resistance Max :

10(mohm)

Current Rating (Max) :

5/Contact(A)

Product Depth (mm) :

8.08(mm)

Number of Positions :

4 Position

Product Length (mm) :

10.16(mm)

Pbfree Code :

yes

Minimum Operating Temperature :

- 55 C

Termination Post Length :

3.18 mm

Brand :

TE Connectivity

Factory Lead Time :

16 Weeks

Termination Type :

Surface Mount

RoHS :

Details

Voltage Rating :

250 V

Gender :

HDR

Mounting Option 2 :

Friction Lock

Contact Style :

SQ PIN-SKT

Flammability Rating :

UL 94 V-0

Voltage Rating Max :

250VAC

Reliability :

COMMERCIAL

Base/Housing Material :

NYLON 46

Filter Feature :

No

Insulator Color :

Black

Terminal Pitch :

2.54 mm

Housing Material :

Nylon 4/6

Mixed Contacts :

No

DIN Conformance :

No

Body Breadth :

0.25 inch

Contact Resistance :

10 MΩ

Polarization Key :

POLARIZED HOUSING

Product Height (mm) :

10.55(mm)

Product Length :

10.16 mm

Operating Temp Range :

-55C to 105C

Tradename :

MTA

Connector Type :

BOARD CONNECTOR

Subcategory :

Headers and Wire Housings

Durability :

25 Cycles

Pitch (mm) :

2.54(mm)

Body Depth :

0.347 inch

Option :

GENERAL PURPOSE

Maximum Operating Temperature :

+ 105 C

Number of Contacts :

4(POS)

Insertion Force-Max :

8.896 N

Operating Temperature :

-55 to 105 °C

Mounting Option 1 :

LOCKING

Body/Shell Style :

PLUG

Brand Name :

AMP

PCB Contact Row Spacing :

2.9972 mm

Mounting :

Surface Mount

Manufacturer :

TE Connectivity

Application :

Wire-to-Board

Reference Standard :

UL, CSA

Termination Style :

Solder

Termination Method :

Solder

Product Type :

Headers and Wire Housings

Withdrawl Force-Min :

3.614 N

Mounting Angle :

Straight
