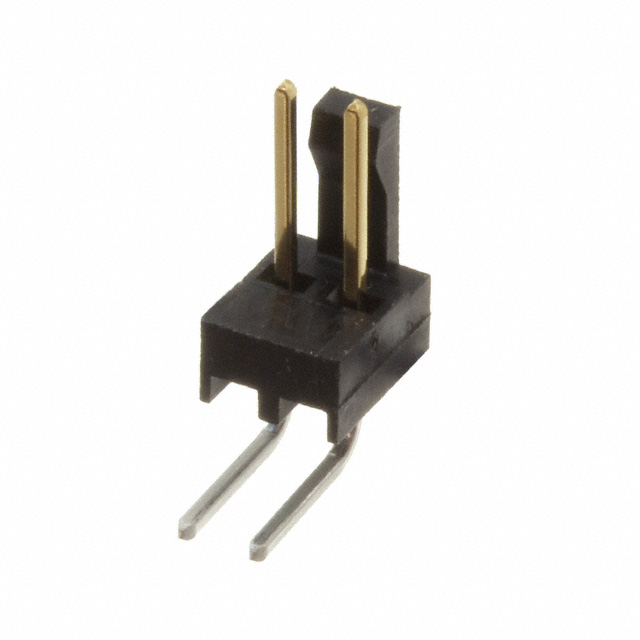

3-647079-2
Or copy the link below:
- Mfr.Part #
- 3-647079-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER R/A 2POS 2.54MM
- Stock
- 4,353
- In Stock ：
- 4,353
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Contact Current Rating :
- 5A
- Published :
- 2007
- PCB Thickness :
- 1.5748mm
- Contact Resistance :
- 6mOhm
- Connector Type :
- Header
- Housing Color :
- Black
- Contact Length - Post :
- 0.140 3.56mm
- Voltage - Rated :
- 250VAC
- Max Voltage Rating (AC) :
- 250V
- Length :
- 5.08mm
- Contact Finish Thickness - Mating :
- 15.0μin 0.38μm
- Voltage - Rated AC :
- 250V
- Contact Material :
- COPPER ALLOY
- Operating Temperature :
- -55°C~105°C
- Max Operating Temperature :
- 221°C
- Pitch :
- 2.54mm
- Radiation Hardening :
- No
- Number of Positions Loaded :
- All
- Length - Tail :
- 3.56mm
- Underplate Material :
- Nickel
- Sealable :
- No
- Number of Rows :
- 1
- Mating Post Length :
- 7.37mm
- PCB Mount Retention :
- Without
- Fastening Type :
- Friction Lock
- Insulation Material :
- Polyamide (PA46), Nylon 4/6
- Mount :
- Through Hole
- RoHS Status :
- RoHS Compliant
- Mating Retention :
- With
- Applications :
- GENERAL PURPOSE
- Color :
- Black
- Depth :
- 13.71mm
- Termination :
- Solder
- Pitch - Mating :
- 0.100 2.54mm
- Current Rating :
- 5A
- PCB Mounting Orientation :
- RIGHT ANGLE
- Lead Length :
- 3.18mm
- Circuit Application :
- Signal
- Contact Shape :
- Square
- Style :
- Board to Cable/Wire
- ELV :
- Compliant
- Plating Thickness :
- 380 nm
- PCB Mount Alignment :
- Without
- Min Operating Temperature :
- -67°C
- Material Flammability Rating :
- UL94 V-0
- Series :
- MTA-100
- Operating Supply Voltage :
- 250V
- Contact Gender :
- Male
- Contact Type :
- Male Pin
- Lifecycle Status :
- ACTIVE (Last Updated: 5 months ago)
- Approval Agency :
- CSA
- Orientation :
- RIGHT ANGLE
- Housing Material :
- Nylon
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Packaging :
- Tube
- Flammability Rating :
- UL94 V-0
- Shrouding :
- Shrouded - 1 Wall
- Number of Contacts :
- 2
- Factory Lead Time :
- 17 Weeks
- Current Rating (Amps) :
- Varies by WireGAuge
- Contact Plating :
- Gold, Tin
- Insulation Height :
- 0.250 6.35mm
- Contact Finish - Post :
- Tin
- Contact Finish - Mating :
- Gold
- Plating :
- Gold
- Insulation Color :
- Black
- Height :
- 8.81mm
- Number of Positions :
- 2
- Mounting Type :
- Through Hole, Right Angle
- Datasheets
- 3-647079-2
MTA-100 Series 1-Row Header Solder Copper Alloy Tube Through Hole, Right Angle Gold Polyamide (PA46), Nylon 4/6 2-Position Board to Cable/Wire 0.250 6.35mm Height
3-647079-2 Overview
The product comes in a package of Header.Through Hole, Right Angle is the type of mounting for the device.To package the product, a Tube case is used.The product is a member of the MTA-100 Series.Use it when the temperature is below 221°C.Temperatures below -67°C are required for this device to operate.The device may be used for the following applications: General Purpose.It is mounted by Through Hole.Its operating supply voltage is 250V.It operates at an operating temperature of -55°C~105°C.
3-647079-2 Features
MTA-100 series
3-647079-2 Applications
There are a lot of TE Connectivity AMP Connectors
3-647079-2 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
