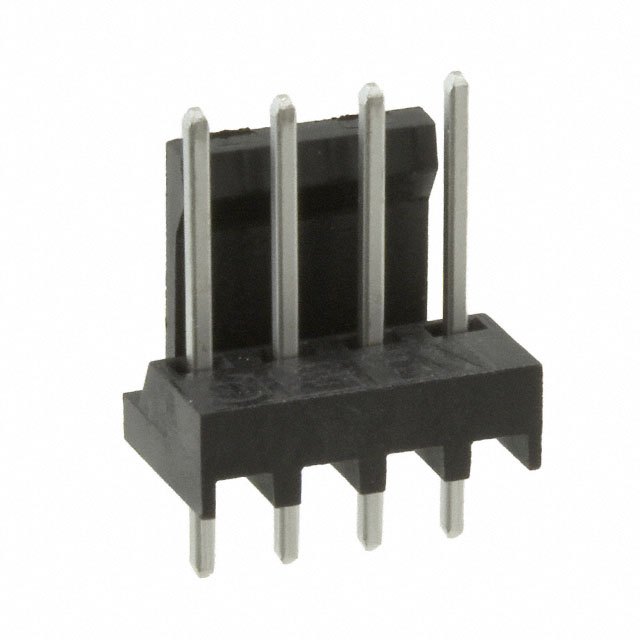

3-647050-4
Or copy the link below:
- Mfr.Part #
- 3-647050-4
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 4POS 2.54MM
- Stock
- 10,802
- In Stock ：
- 10,802
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Contact Finish Thickness - Post :
- 150.0μin 3.81μm
- Voltage - Rated AC :
- 250V
- Contact Current Rating :
- 5A
- RoHS Status :
- RoHS Compliant
- Number of Positions :
- 4
- Insertion Force-Max :
- 8.896 N
- Pitch - Mating :
- 0.100 2.54mm
- Number Of PCB Rows :
- 1
- Housing Material :
- Nylon
- Filter Feature :
- No
- Body Breadth :
- 0.25 inch
- Insulation Resistance :
- 5000000000Ohm
- Termination :
- Solder
- Housing Color :
- Black
- Connector Type :
- Header
- Insulation Height :
- 0.347 8.81mm
- Overall Contact Length :
- 0.550 13.97mm
- Factory Lead Time :
- 19 Weeks
- DIN Conformance :
- No
- Mating Post Length :
- 7.37mm
- Depth :
- 6.35mm
- Insulation Material :
- Polyamide (PA4T), Nylon 4T
- Flammability Rating :
- UL94 V-0
- Mount :
- Through Hole
- Shrouding :
- Shrouded - 1 Wall
- Sealable :
- No
- Mixed Contacts :
- No
- Voltage - Rated :
- 250VAC
- Orientation :
- Vertical
- Published :
- 2008
- Contact Style :
- Straight
- Number of Rows :
- 1
- Current Rating (Amps) :
- Varies by WireGAuge
- Contact Resistance :
- 6mOhm
- PCB Contact Pattern :
- RECTANGULAR
- Plating Thickness :
- 6.3μm
- Height :
- 8.81mm
- Applications :
- GENERAL PURPOSE
- Series :
- MTA-100
- Dielectric Withstanding Voltage :
- 750VAC V
- Operating Supply Voltage :
- 250V
- PCB Thickness :
- 1.5748mm
- IEC Conformance :
- No
- ECCN Code :
- EAR99
- Pbfree Code :
- yes
- ELV :
- Compliant
- PCB Mount Alignment :
- Without
- Contact Length - Post :
- 0.135 3.43mm
- Reliability :
- COMMERCIAL
- JESD-609 Code :
- e3
- Contact Material :
- COPPER ALLOY
- Mounting Type :
- Through Hole
- Contact Gender :
- Male
- Fastening Type :
- Friction Lock
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Finish - Mating :
- Tin
- Lifecycle Status :
- ACTIVE (Last Updated: 1 day ago)
- Length :
- 10.16mm
- Polarization Key :
- POLARIZED HOUSING
- Contact Type :
- Male Pin
- Contact Length - Mating :
- 0.290 7.37mm
- Circuit Application :
- Signal
- MIL Conformance :
- No
- Underplate Material :
- Nickel
- Lead Length :
- 3.18mm
- Approval Agency :
- CSA
- Material Flammability Rating :
- UL94 V-0
- Current Rating :
- 5A
- Lead Pitch :
- 2.54mm
- Contact Finish Thickness - Mating :
- 80.0μin 2.03μm
- Number of Conductors :
- ONE
- Packaging :
- Bulk
- Lead Free :
- Lead Free
- Style :
- Board to Cable/Wire
- Length - Tail :
- 3.43mm
- Max Voltage Rating (AC) :
- 250V
- Number of Positions Loaded :
- All
- Contact Shape :
- Square
- Additional Feature :
- POLARIZED
- Durability :
- 25 Cycles
- Mating Retention :
- With
- Operating Temperature :
- -55°C~105°C
- Datasheets
- 3-647050-4
MTA-100 Series 1-Row Header Solder Copper Alloy Bulk Through Hole Tin Polyamide (PA4T), Nylon 4T 4-Position Board to Cable/Wire 0.347 8.81mm Height
3-647050-4 Overview
Packaging is in the form of Header.This device has a Through Hole mounting type.An orange Bulk case is used to package the product.Specifically, it is one of the products in the MTA-100 Series.Other features include POLARIZED, to name just a few.There are a variety of possible applications for this device, including General Purpose.There is a mounting hole at Through Hole.It runs on 250V voltage.Devices operate at -55°C~105°C operating temperatures.
3-647050-4 Features
MTA-100 series
3-647050-4 Applications
There are a lot of TE Connectivity AMP Connectors
3-647050-4 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
