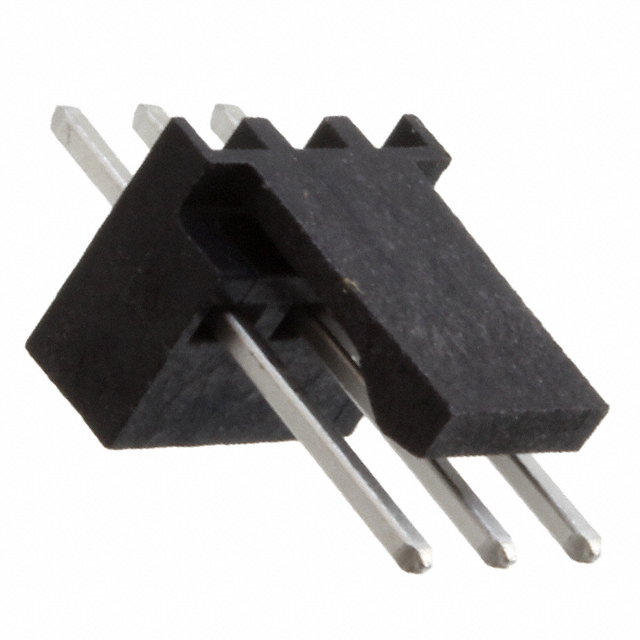

3-647050-3
Or copy the link below:
- Mfr.Part #
- 3-647050-3
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 3POS 2.54MM
- Stock
- 3,600
- In Stock ：
- 3,600
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Contact Resistance :
- 6mOhm
- Material Flammability Rating :
- UL94 V-0
- Voltage - Rated :
- 250VAC
- Insulation Color :
- Black
- ELV :
- Compliant
- Termination :
- Solder
- Housing Color :
- Black
- RoHS Status :
- RoHS Compliant
- Pitch :
- 2.54mm
- Flammability Rating :
- UL94 V-0
- Underplate Material :
- Nickel
- Fastening Type :
- Friction Lock
- Max Voltage Rating (AC) :
- 250V
- Shrouding :
- Shrouded - 1 Wall
- Contact Finish Thickness - Mating :
- 80.0μin 2.03μm
- Packaging :
- Bulk
- Contact Finish Thickness - Post :
- 150.0μin 3.81μm
- Length - Tail :
- 3.43mm
- Number of Positions Loaded :
- All
- Housing Material :
- Nylon
- Insulation Material :
- Polyamide (PA4T), Nylon 4T
- Connector Type :
- Header
- Current Rating :
- 5A
- Contact Current Rating :
- 5A
- Plating Thickness :
- 6.3μm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Current Rating (Amps) :
- Varies by WireGAuge
- Number of Contacts :
- 3
- Published :
- 2008
- Applications :
- GENERAL PURPOSE
- Mounting Type :
- Through Hole
- Contact Length - Mating :
- 0.290 7.37mm
- Sealable :
- No
- Contact Material :
- COPPER ALLOY
- Operating Supply Voltage :
- 250V
- Mating Retention :
- With
- Contact Type :
- Male Pin
- Mount :
- Through Hole
- Number of Positions :
- 3
- Pitch - Mating :
- 0.100 2.54mm
- Radiation Hardening :
- No
- Voltage - Rated AC :
- 250V
- Plating :
- Tin
- Contact Plating :
- Tin
- PCB Mount Retention :
- Without
- Insulation Height :
- 0.347 8.81mm
- Factory Lead Time :
- 18 Weeks
- Contact Gender :
- Male
- Contact Style :
- Straight
- Orientation :
- Vertical
- PCB Mount Alignment :
- Without
- Contact Shape :
- Square
- Contact Finish - Post :
- Tin
- Approval Agency :
- CSA
- Height :
- 8.81mm
- Length :
- 7.62mm
- Lead Length :
- 3.18mm
- Min Operating Temperature :
- -67°C
- Series :
- MTA-100
- Overall Contact Length :
- 0.550 13.97mm
- Operating Temperature :
- -55°C~105°C
- Circuit Application :
- Signal
- PCB Mounting Orientation :
- Vertical
- Style :
- Board to Cable/Wire
- PCB Thickness :
- 1.5748mm
- Contact Finish - Mating :
- Tin
- Color :
- Black
- Depth :
- 6.35mm
- Lifecycle Status :
- ACTIVE (Last Updated: 2 days ago)
- Contact Length - Post :
- 0.135 3.43mm
- Max Operating Temperature :
- 221°C
- Mating Post Length :
- 7.37mm
- Number of Rows :
- 1
- Datasheets
- 3-647050-3
MTA-100 Series 1-Row Header Solder Copper Alloy Bulk Through Hole Tin Polyamide (PA4T), Nylon 4T 3-Position Board to Cable/Wire 0.347 8.81mm Height
3-647050-3 Overview
A Header package is included with it.Its mounting type is Through Hole.Packaging is performed using a Bulk case.It is part of the MTA-100 Series of products.Whenever it's below 221°C, it's best to use it.The device must operate at a temperature of -67°C at all times.It is possible for the device to be used for the application General Purpose.Through Hole mounts the part.A voltage of 250V is required to operate this memory.There is no operating temperature for the device.
3-647050-3 Features
MTA-100 series
3-647050-3 Applications
There are a lot of TE Connectivity AMP Connectors
3-647050-3 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
