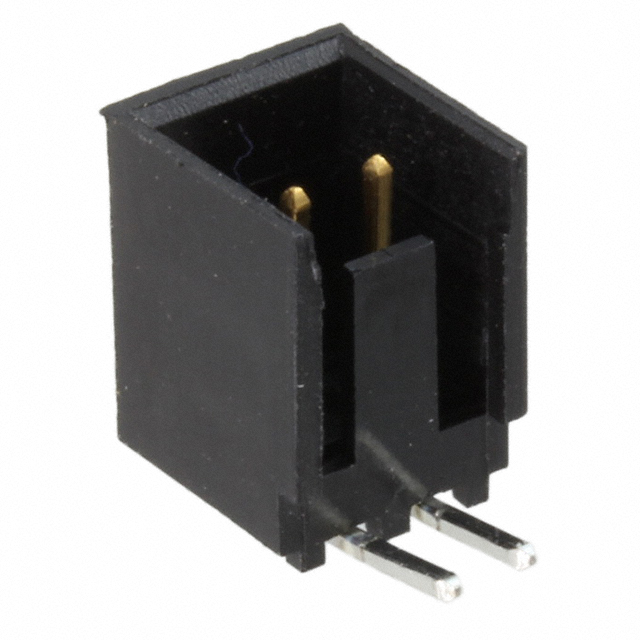

3-644898-2
Or copy the link below:
- Mfr.Part #
- 3-644898-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER R/A 2POS 2.54MM
- Stock
- 22,988
- In Stock ：
- 22,988
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Series :
- CST-100
- Contact Material :
- COPPER ALLOY
- Contact Finish - Post :
- Tin
- Insulation Material :
- Polyester
- Pitch - Mating :
- 0.100 2.54mm
- Insulation Color :
- Black
- Mating Retention :
- With
- Contact Length - Mating :
- 0.280 7.11mm
- Sealable :
- No
- Housing Material :
- Polyester
- Plating Thickness :
- 6.35μm
- Voltage - Rated :
- 250VAC
- Underplate Material :
- Nickel
- Published :
- 2008
- Plating :
- Gold
- Length - Tail :
- 3.3mm
- PCB Mount Retention :
- Without
- Orientation :
- RIGHT ANGLE
- Insulation Height :
- 0.313 7.95mm
- Mount :
- Through Hole
- Contact Current Rating :
- 4A
- Flammability Rating :
- UL94 V-0
- Packaging :
- Bulk
- Connector Type :
- Header
- Current Rating :
- 4A
- ELV :
- Compliant
- Housing Color :
- Black
- Radiation Hardening :
- No
- Pitch :
- 2.54mm
- PCB Mounting Orientation :
- RIGHT ANGLE
- Contact Type :
- Male Pin
- Termination :
- Solder
- Number of Positions :
- 2
- Min Operating Temperature :
- -67°C
- Operating Temperature :
- -55°C~105°C
- Max Operating Temperature :
- 221°C
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- Approval Agency :
- CSA
- Applications :
- General Purpose, Lighting
- Color :
- Black
- Mating Post Length :
- 7.112mm
- Number of Contacts :
- 2
- Operating Supply Voltage :
- 250V
- Length :
- 7.21mm
- Number of Rows :
- 1
- Lifecycle Status :
- ACTIVE (Last Updated: 1 week ago)
- Contact Finish - Mating :
- Gold
- Contact Length - Post :
- 0.130 3.30mm
- Shrouding :
- Shrouded - 4 Wall
- PCB Thickness :
- 1.6002mm
- Factory Lead Time :
- 17 Weeks
- Style :
- Board to Cable/Wire
- Current Rating (Amps) :
- Varies by WireGAuge
- Height :
- 10.41mm
- Fastening Type :
- Friction Lock
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Circuit Application :
- Signal
- PCB Mount Alignment :
- Without
- Material Flammability Rating :
- UL94 V-0
- Voltage - Rated AC :
- 250V
- RoHS Status :
- RoHS Compliant
- Number of Positions Loaded :
- All
- Contact Shape :
- Square
- Contact Plating :
- Gold, Tin
- Mounting Type :
- Through Hole, Right Angle
- Datasheets
- 3-644898-2
CST-100 Series 1-Row Header Solder Copper Alloy Bulk Through Hole, Right Angle Gold Polyester 2-Position Board to Cable/Wire 0.313 7.95mm Height
3-644898-2 Overview
A Header packaging is included.It's mounted Through Hole, Right Angle.We use a Bulk case to package the product.It's from the CST-100 Series.Ideally, it should be used at temperatures below 221°C.Temperatures below -67°C are required for this device.The device could be used for General Purpose, Lighting.It's mounted by Through Hole.Operating voltage is 250V.-55°C~105°C Operating Temperature is what the device runs at.
3-644898-2 Features
CST-100 series
3-644898-2 Applications
There are a lot of TE Connectivity AMP Connectors
3-644898-2 Rectangular Connectors applications.
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
