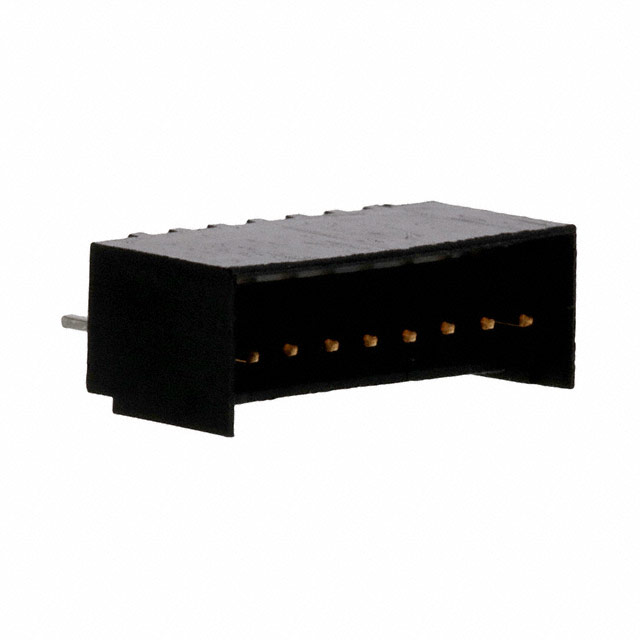

3-644897-8
Or copy the link below:
- Mfr.Part #
- 3-644897-8
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 8POS 2.54MM
- Stock
- 4,948
- In Stock ：
- 4,948
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Contact Resistance :
- 6mOhm
- Plating Thickness :
- 6.35μm
- Voltage - Rated AC :
- 250V
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Min Operating Temperature :
- -67°C
- Contact Plating :
- Gold, Tin
- ELV :
- Compliant
- Radiation Hardening :
- No
- RoHS Status :
- RoHS Compliant
- Pitch - Mating :
- 0.100 2.54mm
- Applications :
- General Purpose, Lighting
- Sealable :
- No
- Depth :
- 7.95mm
- Lifecycle Status :
- ACTIVE (Last Updated: 4 days ago)
- Pitch :
- 2.54mm
- Number of Contacts :
- 8
- Feature :
- Board Guide
- Mating Post Length :
- 7.112mm
- Plating :
- Gold
- Circuit Application :
- Signal
- Operating Temperature :
- -55°C~105°C
- Max Operating Temperature :
- 221°C
- Insulation Material :
- Polyester
- Contact Length - Post :
- 0.140 3.56mm
- Contact Current Rating :
- 4A
- Number of Positions :
- 8
- Contact Shape :
- Square
- Termination :
- Solder
- Published :
- 2008
- Overall Contact Length :
- 0.520 13.21mm
- Length - Tail :
- 3.56mm
- Packaging :
- Bulk
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- Voltage - Rated :
- 250VAC
- Contact Material :
- COPPER ALLOY
- Factory Lead Time :
- 19 Weeks
- Mounting Type :
- Through Hole
- Current Rating :
- 4A
- Connector Type :
- Header
- Color :
- Black
- Height :
- 10.41mm
- Contact Finish - Mating :
- Gold
- Housing Material :
- Polyester
- Lead Length :
- 3.56mm
- Flammability Rating :
- UL94 V-0
- Fastening Type :
- Friction Lock
- PCB Mount Alignment :
- With
- Contact Finish - Post :
- Tin
- Contact Gender :
- Male
- Material Flammability Rating :
- UL94 V-0
- Insulation Color :
- Black
- Contact Style :
- Straight
- Orientation :
- Vertical
- Underplate Material :
- Nickel
- Operating Supply Voltage :
- 250V
- Number of Positions Loaded :
- All
- Number of Rows :
- 1
- Approval Agency :
- CSA
- PCB Mount Retention :
- With
- Contact Length - Mating :
- 0.280 7.11mm
- Contact Type :
- Male Pin
- Housing Color :
- Black
- Mating Retention :
- With
- Shrouding :
- Shrouded - 4 Wall
- Current Rating (Amps) :
- Varies by WireGAuge
- PCB Thickness :
- 1.6002mm
- Length :
- 22.45mm
- Max Voltage Rating (AC) :
- 250V
- PCB Mounting Orientation :
- Vertical
- Style :
- Board to Cable/Wire
- Insulation Height :
- 0.410 10.41mm
- Series :
- CST-100
- Mount :
- Through Hole
- Datasheets
- 3-644897-8
3-644897-8 Documents
CST-100 Series 1-Row Header Solder Copper Alloy Bulk Through Hole Gold Polyester 8-Position Board to Cable/Wire 0.410 10.41mm Height
3-644897-8 Overview
Currently, it is packaged in Header.Mounting type Through Hole is assigned to the device.Packaging the product involves using a Bulk case.Among the products in the CST-100 Series, it is one of the most popular.It works best at below 221°C.The device must be operated at a temperature of -67°C.The device could be used for General Purpose, Lighting.A number of benefits can be derived from the Board Guide feature of this application.Through Hole is the mounting point for the part.There is a note indicating that this memory operates at an 250V volt supply voltage.-55°C~105°C Operating Temperature is used by the device.
3-644897-8 Features
CST-100 series
3-644897-8 Applications
There are a lot of TE Connectivity AMP Connectors
3-644897-8 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
