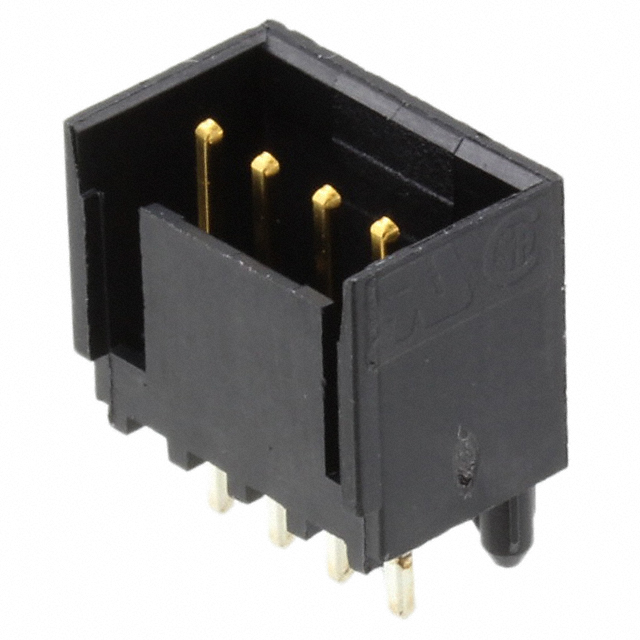

3-644897-4
Or copy the link below:
- Mfr.Part #
- 3-644897-4
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 4POS 2.54MM
- Stock
- 3,277
- In Stock ：
- 3,277
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Applications :
- General Purpose, Lighting
- Current Rating :
- 4A
- Length - Tail :
- 3.56mm
- Shrouding :
- Shrouded - 4 Wall
- Underplate Material :
- Nickel
- Material Flammability Rating :
- UL94 V-0
- Reliability :
- COMMERCIAL
- Contact Type :
- Male Pin
- Circuit Application :
- Signal
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- Insulation Material :
- Polyester
- Filter Feature :
- No
- Contact Plating :
- Gold, Tin
- RoHS Status :
- RoHS Compliant
- Packaging :
- Bulk
- Style :
- Board to Cable/Wire
- Insulation Height :
- 0.410 10.41mm
- Number of Positions Loaded :
- All
- Number of Rows :
- 1
- Current Rating (Amps) :
- Varies by WireGAuge
- Length :
- 12.29mm
- Pitch - Mating :
- 0.100 2.54mm
- Lead Length :
- 3.56mm
- Mount :
- Through Hole
- Operating Temperature :
- -55°C~105°C
- PCB Thickness :
- 1.6002mm
- MIL Conformance :
- No
- Voltage - Rated AC :
- 250V
- Number Of PCB Rows :
- 1
- Contact Finish - Post :
- Tin
- Feature :
- Board Guide
- ELV :
- Compliant
- Mating Post Length :
- 7.112mm
- Approval Agency :
- CSA
- Height :
- 10.41mm
- Contact Shape :
- Square
- Fastening Type :
- Friction Lock
- Plating Thickness :
- 6.35μm
- IEC Conformance :
- No
- DIN Conformance :
- No
- JESD-609 Code :
- e3
- Contact Material :
- COPPER ALLOY
- Lifecycle Status :
- ACTIVE (Last Updated: 1 week ago)
- Overall Contact Length :
- 0.520 13.21mm
- Contact Length - Post :
- 0.140 3.56mm
- Published :
- 2008
- Orientation :
- Vertical
- Termination :
- Solder
- Sealable :
- No
- Contact Gender :
- Male
- Mixed Contacts :
- No
- Operating Supply Voltage :
- 250V
- ECCN Code :
- EAR99
- Pbfree Code :
- yes
- Contact Style :
- Straight
- Contact Current Rating :
- 4A
- Connector Type :
- Header
- Series :
- CST-100
- PCB Mount Retention :
- With
- Contact Finish - Mating :
- Gold
- Factory Lead Time :
- 17 Weeks
- Number of Conductors :
- ONE
- PCB Contact Pattern :
- RECTANGULAR
- Voltage - Rated :
- 250VAC
- Insertion Force-Max :
- 8.896 N
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Number of Positions :
- 4
- Contact Length - Mating :
- 0.280 7.11mm
- Flammability Rating :
- UL94 V-0
- Insulation Color :
- Black
- Mounting Type :
- Through Hole
- Datasheets
- 3-644897-4
3-644897-4 Documents
CST-100 Series 1-Row Header Solder Copper Alloy Bulk Through Hole Gold Polyester 4-Position Board to Cable/Wire 0.410 10.41mm Height
3-644897-4 Overview
The product is packaged in Header.This device is mounted in the Through Hole position.It has been determined that a Bulk case is necessary to package the product.There is a product in the CST-100 Series.The device could be used for the following application: General Purpose, Lighting.There are a number of advantages to its Board Guide feature.Part Through Hole is mounted to the part.250V is the operating supply voltage for this memory.As a result, the device runs at -55°C~105°C Operating Temperature.
3-644897-4 Features
CST-100 series
3-644897-4 Applications
There are a lot of TE Connectivity AMP Connectors
3-644897-4 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
