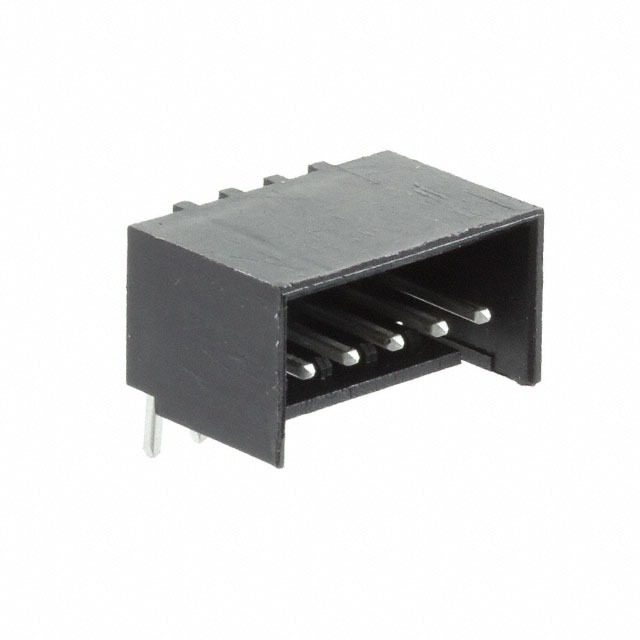

3-644894-5
Or copy the link below:
- Mfr.Part #
- 3-644894-5
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER R/A 5POS 2.54MM
- Stock
- 10
- In Stock ：
- 10
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Factory Lead Time :
- 19 Weeks
- Mounting Type :
- Through Hole, Right Angle
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Underplate Material :
- Nickel
- Published :
- 2008
- Contact Finish - Mating :
- Tin
- Contact Current Rating :
- 4A
- Contact Gender :
- Male
- Number of Contacts :
- 5
- Plating :
- Tin
- Contact Resistance :
- 6mOhm
- Operating Temperature :
- -55°C~105°C
- Fastening Type :
- Friction Lock
- Mating Post Length :
- 7.112mm
- Housing Material :
- Polyester
- Pitch :
- 2.54mm
- Plating Thickness :
- 6.35μm
- ELV :
- Compliant
- Lead Length :
- 3.56mm
- Min Operating Temperature :
- -67°C
- Max Operating Temperature :
- 221°C
- Depth :
- 10.41mm
- Material Flammability Rating :
- UL94 V-0
- Mount :
- Through Hole
- Voltage - Rated :
- 250VAC
- PCB Mount Alignment :
- Without
- Series :
- CST-100
- Contact Finish - Post :
- Tin
- Length :
- 14.8336mm
- Current Rating (Amps) :
- Varies by WireGAuge
- Contact Type :
- Male Pin
- Orientation :
- RIGHT ANGLE
- Current Rating :
- 4A
- Contact Length - Post :
- 0.130 3.30mm
- Lifecycle Status :
- ACTIVE (Last Updated: 4 days ago)
- RoHS Status :
- RoHS Compliant
- Max Voltage Rating (AC) :
- 250V
- Approval Agency :
- CSA
- Pitch - Mating :
- 0.100 2.54mm
- Insulation Material :
- Polyester
- Insulation Color :
- Black
- Shrouding :
- Shrouded - 4 Wall
- PCB Mounting Orientation :
- RIGHT ANGLE
- Packaging :
- Bulk
- Mating Retention :
- With
- Length - Tail :
- 3.3mm
- Contact Length - Mating :
- 0.280 7.11mm
- Flammability Rating :
- UL94 V-0
- Housing Color :
- Black
- Termination :
- Solder
- Circuit Application :
- Signal
- Connector Type :
- Header
- PCB Thickness :
- 1.6002mm
- Contact Shape :
- Square
- Lead Free :
- Lead Free
- Applications :
- General Purpose, Lighting
- Height :
- 10.41mm
- Voltage - Rated AC :
- 250V
- Number of Positions Loaded :
- All
- Style :
- Board to Cable/Wire
- Color :
- Black
- Contact Material :
- COPPER ALLOY
- Number of Rows :
- 1
- Contact Plating :
- Tin
- Number of Positions :
- 5
- Radiation Hardening :
- No
- Operating Supply Voltage :
- 250V
- Sealable :
- No
- Insulation Height :
- 0.313 7.95mm
- PCB Mount Retention :
- Without
- Datasheets
- 3-644894-5
CST-100 Series 1-Row Header Solder Copper Alloy Bulk Through Hole, Right Angle Tin Polyester 5-Position Board to Cable/Wire 0.313 7.95mm Height
3-644894-5 Overview
Packaging is Header.Through Hole, Right Angle is the mounting type.Packaging for the product is carried out via a Bulk case.As a product of the CST-100 Series, it can be found in this category.Temperatures below 221°C are best for using it.There's a minimum temperature of -67°C for this device.A possible application of the device would be General Purpose, Lighting.In this case, Through Hole mounts the part.The memory's operating supply voltage is 250V.The device is operating at -55°C~105°C Operating Temperature.
3-644894-5 Features
CST-100 series
3-644894-5 Applications
There are a lot of TE Connectivity AMP Connectors
3-644894-5 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
