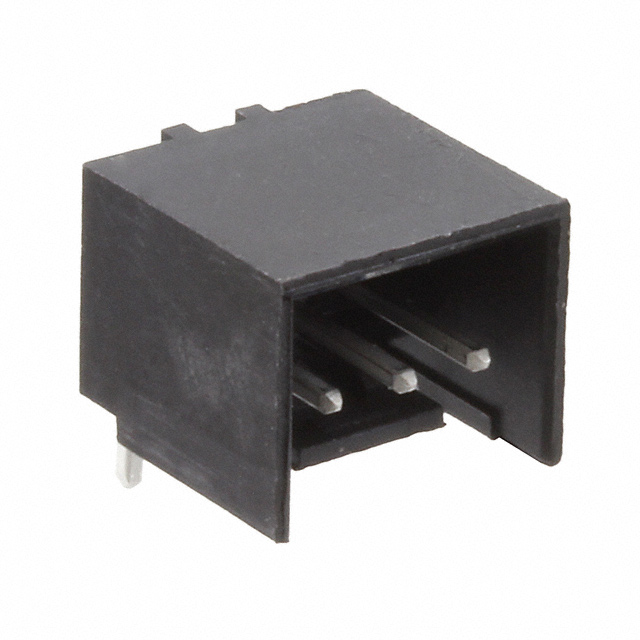

3-644894-3
Or copy the link below:
- Mfr.Part #
- 3-644894-3
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER R/A 3POS 2.54MM
- Stock
- 5,519
- In Stock ：
- 5,519
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Termination :
- Solder
- Mating Post Length :
- 7.112mm
- Housing Material :
- Polyester
- Number of Positions :
- 3
- PCB Mounting Orientation :
- RIGHT ANGLE
- Applications :
- General Purpose, Lighting
- Contact Plating :
- Tin
- Max Operating Temperature :
- 221°C
- Series :
- CST-100
- Contact Shape :
- Square
- Current Rating (Amps) :
- Varies by WireGAuge
- PCB Thickness :
- 1.6002mm
- ELV :
- Compliant
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Voltage - Rated :
- 250VAC
- Length - Tail :
- 3.3mm
- Lifecycle Status :
- ACTIVE (Last Updated: 2 days ago)
- Number of Rows :
- 1
- Published :
- 2008
- Contact Gender :
- Male
- Length :
- 9.75mm
- Contact Material :
- COPPER ALLOY
- Number of Positions Loaded :
- All
- Min Operating Temperature :
- -67°C
- Mount :
- Through Hole
- RoHS Status :
- RoHS Compliant
- Insulation Height :
- 0.313 7.95mm
- Contact Finish - Post :
- Tin
- Lead Length :
- 3.56mm
- Contact Current Rating :
- 4A
- Contact Length - Mating :
- 0.280 7.11mm
- Flammability Rating :
- UL94 V-0
- Contact Type :
- Male Pin
- Approval Agency :
- CSA
- Insulation Material :
- Polyester
- Pitch :
- 2.54mm
- Connector Type :
- Header
- Style :
- Board to Cable/Wire
- Contact Length - Post :
- 0.130 3.30mm
- Circuit Application :
- Signal
- Number of Contacts :
- 3
- Insulation Color :
- Black
- Operating Supply Voltage :
- 250V
- Underplate Material :
- Nickel
- Packaging :
- Bulk
- Factory Lead Time :
- 19 Weeks
- Mating Retention :
- With
- Sealable :
- No
- PCB Mount Retention :
- Without
- Color :
- Black
- Mounting Type :
- Through Hole, Right Angle
- Voltage - Rated AC :
- 250V
- PCB Mount Alignment :
- Without
- Material Flammability Rating :
- UL94 V-0
- Plating :
- Tin
- Height :
- 10.41mm
- Contact Finish - Mating :
- Tin
- Operating Temperature :
- -55°C~105°C
- Radiation Hardening :
- No
- Fastening Type :
- Friction Lock
- Orientation :
- RIGHT ANGLE
- Current Rating :
- 4A
- Plating Thickness :
- 6.35μm
- Pitch - Mating :
- 0.100 2.54mm
- Shrouding :
- Shrouded - 4 Wall
- Housing Color :
- Black
- Datasheets
- 3-644894-3
CST-100 Series 1-Row Header Solder Copper Alloy Bulk Through Hole, Right Angle Tin Polyester 3-Position Board to Cable/Wire 0.313 7.95mm Height
3-644894-3 Overview
Packaging is in the form of Header.This device has a Through Hole, Right Angle mounting type.An orange Bulk case is used to package the product.Specifically, it is one of the products in the CST-100 Series.If the temperature is below 221°C, it's best to use it.-67°C is the minimum temperature for this device.There are a variety of possible applications for this device, including General Purpose, Lighting.There is a mounting hole at Through Hole.It runs on 250V voltage.Devices operate at -55°C~105°C operating temperatures.
3-644894-3 Features
CST-100 series
3-644894-3 Applications
There are a lot of TE Connectivity AMP Connectors
3-644894-3 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
