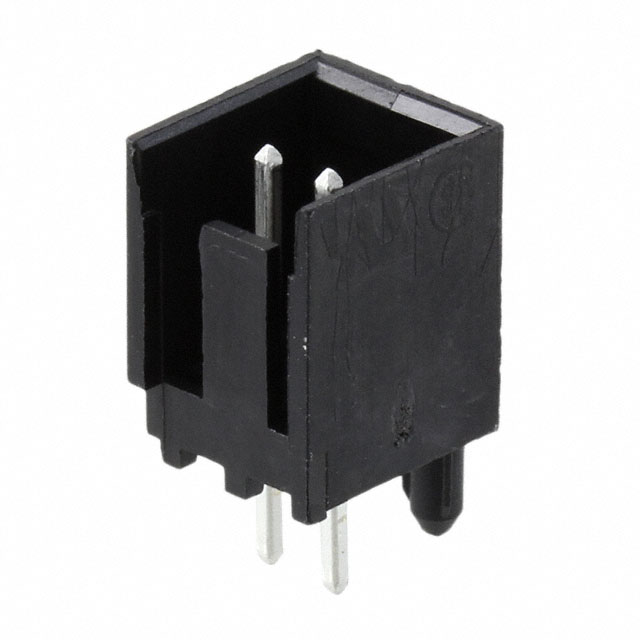

3-644893-2
Or copy the link below:
- Mfr.Part #
- 3-644893-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 2POS 2.54MM
- Stock
- 3,942
- In Stock ：
- 3,942
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- ELV :
- Compliant
- Style :
- Board to Cable/Wire
- Number of Rows :
- 1
- Shrouding :
- Shrouded - 4 Wall
- Length - Tail :
- 3.56mm
- Pitch :
- 2.54mm
- Packaging :
- Bulk
- Contact Style :
- Straight
- Factory Lead Time :
- 18 Weeks
- Operating Temperature :
- -55°C~105°C
- Mating Retention :
- With
- Fastening Type :
- Friction Lock
- Depth :
- 7.95mm
- Lead Free :
- Lead Free
- Published :
- 2008
- Contact Shape :
- Square
- Contact Gender :
- Male
- Contact Length - Post :
- 0.140 3.56mm
- RoHS Status :
- RoHS Compliant
- Series :
- CST-100
- Contact Finish - Post :
- Tin
- Operating Supply Voltage :
- 250V
- Housing Color :
- Black
- Voltage - Rated :
- 250VAC
- Insulation Height :
- 0.410 10.41mm
- Housing Material :
- Polyester
- Material Flammability Rating :
- UL94 V-0
- Contact Resistance :
- 6mOhm
- Current Rating :
- 4A
- Feature :
- Board Guide
- Max Operating Temperature :
- 221°C
- Underplate Material :
- Nickel
- PCB Mount Retention :
- With
- Orientation :
- Vertical
- Termination :
- Solder
- Contact Type :
- Male Pin
- Height :
- 10.41mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Insulation Material :
- Polyester
- Applications :
- General Purpose, Lighting
- Min Operating Temperature :
- -67°C
- Mount :
- Through Hole
- Plating Thickness :
- 6.35μm
- Lead Length :
- 3.56mm
- Lifecycle Status :
- ACTIVE (Last Updated: 1 day ago)
- Max Voltage Rating (AC) :
- 250V
- PCB Mounting Orientation :
- Vertical
- Length :
- 7.21mm
- Contact Plating :
- Tin
- Radiation Hardening :
- No
- PCB Mount Alignment :
- With
- PCB Thickness :
- 1.6002mm
- Number of Positions Loaded :
- All
- Plating :
- Tin
- Sealable :
- No
- Flammability Rating :
- UL94 V-0
- Overall Contact Length :
- 0.520 13.21mm
- Contact Length - Mating :
- 0.280 7.11mm
- Pitch - Mating :
- 0.100 2.54mm
- Insulation Color :
- Black
- Circuit Application :
- Signal
- Number of Contacts :
- 2
- Contact Finish - Mating :
- Tin
- Current Rating (Amps) :
- Varies by WireGAuge
- Mating Post Length :
- 7.112mm
- Contact Material :
- COPPER ALLOY
- Mounting Type :
- Through Hole
- Number of Positions :
- 2
- Contact Current Rating :
- 4A
- Approval Agency :
- CSA
- Connector Type :
- Header
- Color :
- Black
- Voltage - Rated AC :
- 250V
- Datasheets
- 3-644893-2
CST-100 Series 1-Row Header Solder Copper Alloy Bulk Through Hole Tin Polyester 2-Position Board to Cable/Wire 0.410 10.41mm Height
3-644893-2 Overview
Currently, it is packaged in Header.The mounting type of the device is Through Hole.A Bulk case is used to package the product.A product of the CST-100 Series, it belongs to the range of products of that series.A temperature below 221°C is best for using it.The device must run at -67°C degrees.This device may be used for the purpose of General Purpose, Lighting.A number of features make the Board Guide feature more powerful.Through Hole represents the mounting point for the part.You're going to need 250V to power this memory.-55°C~105°C Operating Temperature is the default operating temperature for the device.
3-644893-2 Features
CST-100 series
3-644893-2 Applications
There are a lot of TE Connectivity AMP Connectors
3-644893-2 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
