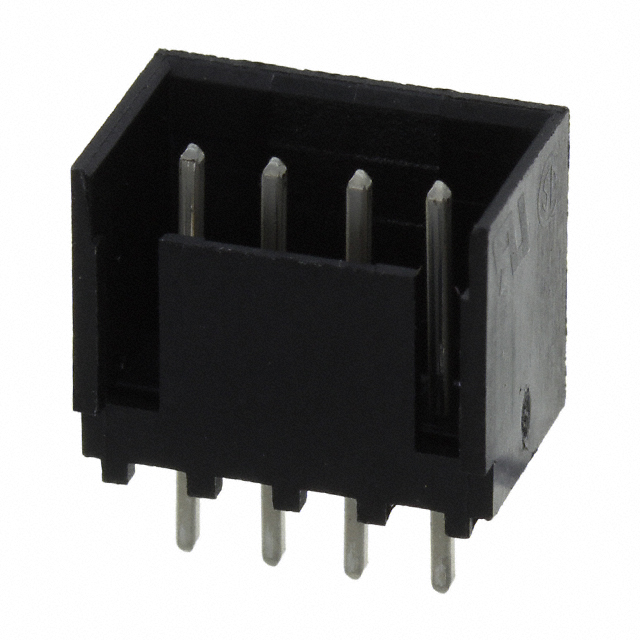

3-644892-4
Or copy the link below:
- Mfr.Part #
- 3-644892-4
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 4POS 2.54MM
- Stock
- 36,400
- In Stock ：
- 36,400
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Contact Current Rating :
- 4A
- Applications :
- General Purpose, Lighting
- Housing Color :
- Black
- Length - Tail :
- 3.56mm
- Current Rating :
- 4A
- Operating Temperature :
- -55°C~105°C
- Material Flammability Rating :
- UL94 V-0
- Pitch - Mating :
- 0.100 2.54mm
- Style :
- Board to Cable/Wire
- Max Operating Temperature :
- 221°C
- Min Operating Temperature :
- -67°C
- Contact Gender :
- Male
- Contact Length - Mating :
- 0.280 7.11mm
- Depth :
- 7.95mm
- Plating Thickness :
- 6.35μm
- Voltage - Rated AC :
- 250V
- PCB Mount Alignment :
- Without
- Contact Length - Post :
- 0.140 3.56mm
- Fastening Type :
- Friction Lock
- Flammability Rating :
- UL94 V-0
- Mount :
- Through Hole
- Underplate Material :
- Nickel
- Radiation Hardening :
- No
- Number of Positions Loaded :
- All
- Number of Contacts :
- 4
- PCB Mounting Orientation :
- Vertical
- Packaging :
- Bulk
- Termination :
- Solder
- Color :
- Black
- Max Voltage Rating (AC) :
- 250V
- Operating Supply Voltage :
- 250V
- RoHS Status :
- RoHS Compliant
- Contact Plating :
- Tin
- Contact Finish - Mating :
- Tin
- PCB Thickness :
- 1.6002mm
- Contact Material :
- COPPER ALLOY
- Mating Retention :
- With
- Sealable :
- No
- Lifecycle Status :
- ACTIVE (Last Updated: 1 day ago)
- Insulation Material :
- Polyester
- Insulation Height :
- 0.410 10.41mm
- Height :
- 10.41mm
- Voltage - Rated :
- 250VAC
- Mating Post Length :
- 7.112mm
- Shrouding :
- Shrouded - 4 Wall
- Lead Length :
- 3.56mm
- Contact Type :
- Male Pin
- Number of Rows :
- 1
- Circuit Application :
- Signal
- Pitch :
- 2.54mm
- Orientation :
- Vertical
- Mounting Type :
- Through Hole
- Contact Resistance :
- 6mOhm
- Number of Positions :
- 4
- Plating :
- Tin
- Published :
- 2008
- PCB Mount Retention :
- Without
- Housing Material :
- Polyester
- Approval Agency :
- CSA
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Overall Contact Length :
- 0.520 13.21mm
- ELV :
- Compliant
- Series :
- CST-100
- Connector Type :
- Header
- Contact Shape :
- Square
- Contact Finish - Post :
- Tin
- Length :
- 12.29mm
- Contact Style :
- Straight
- Insulation Color :
- Black
- Current Rating (Amps) :
- Varies by WireGAuge
- Factory Lead Time :
- 19 Weeks
- Datasheets
- 3-644892-4
CST-100 Series 1-Row Header Solder Copper Alloy Bulk Through Hole Tin Polyester 4-Position Board to Cable/Wire 0.410 10.41mm Height
3-644892-4 Overview
It comes in Header packaging.The device's mounting type is Through Hole.In order to package the product, a Bulk case is used.It belongs to the CST-100 Series of products.It's best to use it when the temperature is below 221°C.This device must operate at a minimum temperature of -67°C.General Purpose, Lighting is a possible application for the device.The part is mounted by Through Hole.This memory's operating supply voltage is 250V.The device runs in -55°C~105°C Operating Temperature.
3-644892-4 Features
CST-100 series
3-644892-4 Applications
There are a lot of TE Connectivity AMP Connectors
3-644892-4 Rectangular Connectors applications.
- Industrial Automation
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
