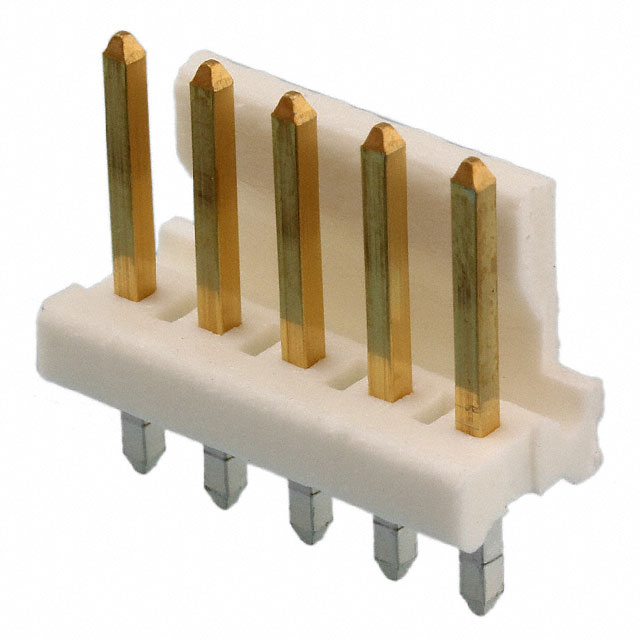

3-644759-5
Or copy the link below:
- Mfr.Part #
- 3-644759-5
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 5POS 3.96MM
- Stock
- 1,595
- In Stock ：
- 1,595
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Contact Gender :
- Male
- Underplate Material :
- Nickel
- Style :
- Board to Cable/Wire
- Radiation Hardening :
- No
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Mating Post Length :
- 10.16mm
- Min Operating Temperature :
- -67°C
- Contact Finish - Mating :
- Gold
- Fastening Type :
- Friction Lock
- Pitch :
- 3.9624mm
- RoHS Status :
- RoHS Compliant
- Voltage - Rated AC :
- 600V
- Color :
- Natural
- Contact Shape :
- Square
- Circuit Application :
- Power
- Series :
- MTA-156
- Length :
- 19.81mm
- Contact Retention :
- Without
- Packaging :
- Bulk
- Connector Type :
- Header
- Insulation Height :
- 0.425 10.80mm
- Number of Positions Loaded :
- All
- Factory Lead Time :
- 16 Weeks
- Contact Material :
- COPPER ALLOY
- Contact Current Rating :
- 7A
- Shrouding :
- Shrouded - 1 Wall
- Insulation Color :
- Natural
- Mounting Type :
- Through Hole
- Current Rating (Amps) :
- Varies by WireGAuge
- Plating Thickness :
- 2.54μm
- Height :
- 13.33mm
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Pitch - Mating :
- 0.156 3.96mm
- PCB Thickness :
- 1.57mm
- Sealable :
- No
- Orientation :
- Vertical
- Number of Rows :
- 1
- ELV :
- Compliant
- Material Flammability Rating :
- UL94 V-0
- Voltage - Rated :
- 600VAC
- Housing Color :
- Natural, White
- PCB Mounting Orientation :
- Vertical
- Number of Power Positions :
- 5
- Max Operating Temperature :
- 221°C
- Number of Positions :
- 5
- Current Rating :
- 7A
- Mount :
- Through Hole
- Flammability Rating :
- UL94 V-0
- Contact Plating :
- Tin, Gold
- Termination :
- Solder
- Published :
- 2008
- Approval Agency :
- CSA
- Insulation Material :
- Thermoplastic, Glass Filled
- Housing Material :
- Polyester
- Lead Length :
- 4.45mm
- Contact Type :
- Male Pin
- Operating Temperature :
- -55°C~105°C
- Applications :
- General Purpose, Industrial
- Contact Finish - Post :
- Tin
- Number of Contacts :
- 5
- Contact Length - Post :
- 0.175 4.45mm
- Number of Signal Positions :
- 0
- Overall Contact Length :
- 0.700 17.78mm
- Contact Length - Mating :
- 0.400 10.16mm
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- Operating Supply Voltage :
- 600V
- Datasheets
- 3-644759-5
3-644759-5 Documents
MTA-156 Series 1-Row Header Solder Copper Alloy Bulk Through Hole Gold Thermoplastic, Glass Filled 5-Position Board to Cable/Wire 0.425 10.80mm Height
3-644759-5 Overview
Currently, it is packaged in Header.Mounting type Through Hole is assigned to the device.Packaging the product involves using a Bulk case.Among the products in the MTA-156 Series, it is one of the most popular.It works best at below 221°C.The device must be operated at a temperature of -67°C.The device could be used for General Purpose, Industrial.Through Hole is the mounting point for the part.There is a note indicating that this memory operates at an 600V volt supply voltage.-55°C~105°C Operating Temperature is used by the device.
3-644759-5 Features
MTA-156 series
3-644759-5 Applications
There are a lot of TE Connectivity AMP Connectors
3-644759-5 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
