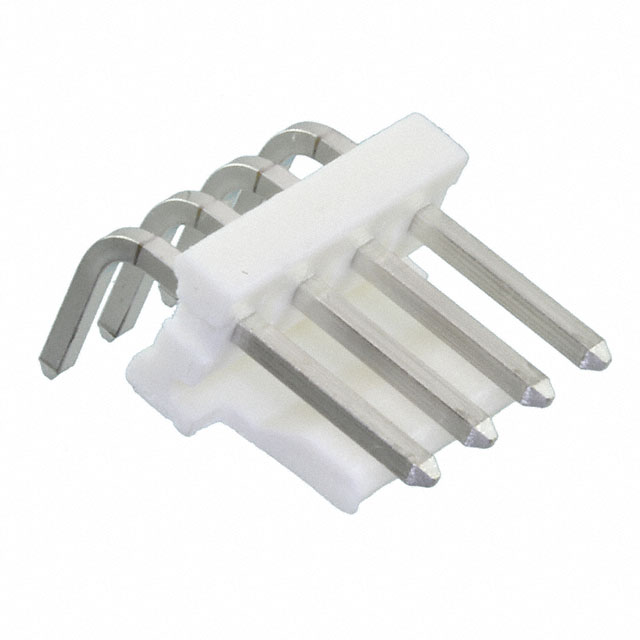

3-644755-4
Or copy the link below:
- Mfr.Part #
- 3-644755-4
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER R/A 4POS 3.96MM
- Stock
- 29,451
- In Stock ：
- 29,451
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Packaging :
- Bulk
- Contact Current Rating :
- 7A
- RoHS Status :
- RoHS Compliant
- Current Rating :
- 7A
- Depth :
- 17.32mm
- Max Voltage Rating (AC) :
- 600V
- Number of Positions Loaded :
- All
- Termination :
- Solder
- Current Rating (Amps) :
- Varies by WireGAuge
- Contact Finish - Post :
- Tin
- Number of Power Positions :
- 4
- Fastening Type :
- Friction Lock
- Contact Plating :
- Tin
- Lifecycle Status :
- ACTIVE (Last Updated: 2 days ago)
- Applications :
- General Purpose, Industrial
- Insulation Color :
- Natural
- Insulation Material :
- Thermoplastic, Glass Filled
- PCB Thickness :
- 1.57mm
- Published :
- 2008
- Pitch - Mating :
- 0.156 3.96mm
- Contact Type :
- Male Pin
- Contact Retention :
- Without
- Voltage - Rated :
- 600VAC
- Material Flammability Rating :
- UL94 V-0
- Max Operating Temperature :
- 221°C
- Min Operating Temperature :
- -67°C
- Connector Type :
- Header
- Contact Finish - Mating :
- Tin
- Contact Material :
- COPPER ALLOY
- Style :
- Board to Cable/Wire
- Operating Supply Voltage :
- 600V
- Contact Shape :
- Square
- Lead Length :
- 4.45mm
- Factory Lead Time :
- 26 Weeks
- Plating :
- Tin
- Approval Agency :
- CSA
- Contact Length - Post :
- 0.175 4.45mm
- Housing Color :
- Natural
- Circuit Application :
- Power
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Mating Post Length :
- 10.16mm
- ELV :
- Compliant
- Sealable :
- No
- Number of Rows :
- 1
- Length :
- 15.8496mm
- Contact Length - Mating :
- 0.400 10.16mm
- PCB Mounting Orientation :
- Vertical
- Pitch :
- 3.96mm
- Color :
- Natural
- Mounting Type :
- Through Hole, Right Angle
- Number of Contacts :
- 4
- Shrouding :
- Shrouded - 1 Wall
- Contact Resistance :
- 3mOhm
- Housing Material :
- Polyester
- Mount :
- Through Hole
- Contact Gender :
- Male
- Radiation Hardening :
- No
- Insulation Height :
- 0.300 7.62mm
- Series :
- MTA-156
- Underplate Material :
- Nickel
- Orientation :
- RIGHT ANGLE
- Number of Positions :
- 4
- Operating Temperature :
- -55°C~105°C
- Plating Thickness :
- 2.54μm
- Flammability Rating :
- UL94 V-0
- Datasheets
- 3-644755-4
MTA-156 Series 1-Row Header Solder Copper Alloy Bulk Through Hole, Right Angle Tin Thermoplastic, Glass Filled 4-Position Board to Cable/Wire 0.300 7.62mm Height
3-644755-4 Overview
It comes in Header packaging.The device's mounting type is Through Hole, Right Angle.In order to package the product, a Bulk case is used.It belongs to the MTA-156 Series of products.It's best to use it when the temperature is below 221°C.This device must operate at a minimum temperature of -67°C.General Purpose, Industrial is a possible application for the device.The part is mounted by Through Hole.This memory's operating supply voltage is 600V.The device runs in -55°C~105°C Operating Temperature.
3-644755-4 Features
MTA-156 series
3-644755-4 Applications
There are a lot of TE Connectivity AMP Connectors
3-644755-4 Rectangular Connectors applications.
- Industrial Automation
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
