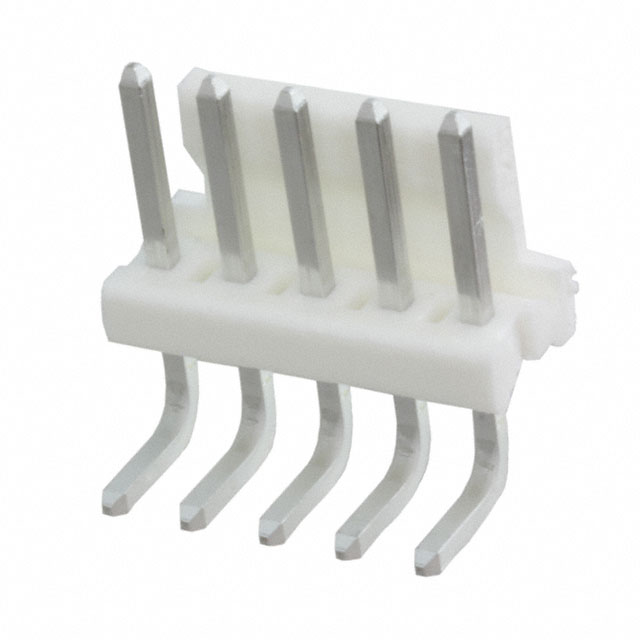

3-644754-5
Or copy the link below:
- Mfr.Part #
- 3-644754-5
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER R/A 5POS 3.96MM
- Stock
- 3,320
- In Stock ：
- 3,320
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Contact Material :
- COPPER ALLOY
- Length :
- 19.81mm
- Plating Thickness :
- 2.54μm
- Series :
- MTA-156
- Number of Rows :
- 1
- Number of Positions :
- 5
- Sealable :
- No
- Number of Power Positions :
- 5
- Mount :
- Through Hole
- Shrouding :
- Shrouded - 1 Wall
- Contact Finish - Mating :
- Tin
- Contact Resistance :
- 3mOhm
- Number of Positions Loaded :
- All
- Contact Current Rating :
- 7A
- Fastening Type :
- Friction Lock
- Material Flammability Rating :
- UL94 V-0
- ELV :
- Compliant
- Insulation Material :
- Thermoplastic, Glass Filled
- Pitch :
- 3.96mm
- Voltage - Rated :
- 600VAC
- Applications :
- General Purpose, Industrial
- Mounting Type :
- Through Hole, Right Angle
- Pitch - Mating :
- 0.156 3.96mm
- Current Rating :
- 7A
- Lead Length :
- 4.45mm
- Min Operating Temperature :
- -67°C
- Circuit Application :
- Power
- Contact Gender :
- Male
- Approval Agency :
- CSA
- RoHS Status :
- RoHS Compliant
- Contact Retention :
- Without
- Operating Temperature :
- -55°C~105°C
- Connector Type :
- Header
- Flammability Rating :
- UL94 V-0
- Radiation Hardening :
- No
- Insulation Color :
- Natural
- Orientation :
- RIGHT ANGLE
- Contact Length - Mating :
- 0.400 10.16mm
- Housing Color :
- Natural
- PCB Thickness :
- 1.57mm
- Contact Length - Post :
- 0.175 4.45mm
- Plating :
- Tin
- Underplate Material :
- Nickel
- Operating Supply Voltage :
- 600V
- Contact Shape :
- Square
- Mating Post Length :
- 10.16mm
- Style :
- Board to Cable/Wire
- Current Rating (Amps) :
- Varies by WireGAuge
- Color :
- Natural
- Depth :
- 18.71mm
- Number of Contacts :
- 5
- Contact Type :
- Male Pin
- Published :
- 2008
- Contact Finish - Post :
- Tin
- Max Operating Temperature :
- 221°C
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Termination :
- Solder
- Packaging :
- Bulk
- Insulation Height :
- 0.300 7.62mm
- Max Voltage Rating (AC) :
- 600V
- PCB Mounting Orientation :
- RIGHT ANGLE
- Factory Lead Time :
- 16 Weeks
- Housing Material :
- Polyester
- Contact Plating :
- Tin
- Datasheets
- 3-644754-5
3-644754-5 Documents
MTA-156 Series 1-Row Header Solder Copper Alloy Bulk Through Hole, Right Angle Tin Thermoplastic, Glass Filled 5-Position Board to Cable/Wire 0.300 7.62mm Height
3-644754-5 Overview
The packaging is Header.Mounting type is Through Hole, Right Angle.To package the product, we use a Bulk case.This product is from the MTA-156 Series.It is best used at temperatures below 221°C.-67°C is the minimum temperature this device can operate at.A possible application is General Purpose, Industrial.Mounted by Through Hole.In this memory, the operating supply voltage is 600V.Device runs at -55°C~105°C Operating Temperature.
3-644754-5 Features
MTA-156 series
3-644754-5 Applications
There are a lot of TE Connectivity AMP Connectors
3-644754-5 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
