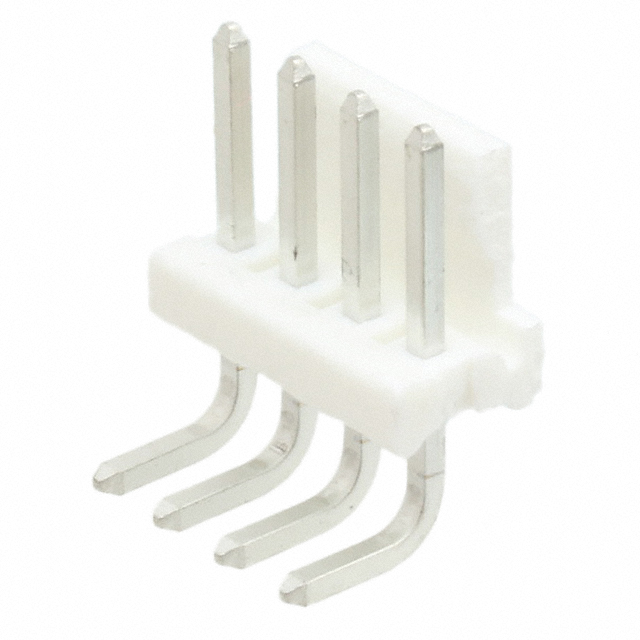

3-644754-4
Or copy the link below:
- Mfr.Part #
- 3-644754-4
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER R/A 4POS 3.96MM
- Stock
- 2,203
- In Stock ：
- 2,203
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Style :
- Board to Cable/Wire
- Material Flammability Rating :
- UL94 V-0
- Contact Type :
- Male Pin
- Series :
- MTA-156
- Mount :
- Through Hole
- Connector Type :
- Header
- Insulation Height :
- 0.300 7.62mm
- Color :
- Natural
- Contact Retention :
- Without
- Lifecycle Status :
- ACTIVE (Last Updated: 5 days ago)
- Contact Current Rating :
- 7A
- Housing Material :
- Polyester
- Termination :
- Solder
- Contact Resistance :
- 3mOhm
- Circuit Application :
- Power
- Max Voltage Rating (AC) :
- 600V
- Depth :
- 18.71mm
- Operating Temperature :
- -55°C~105°C
- Factory Lead Time :
- 16 Weeks
- Contact Plating :
- Tin
- PCB Thickness :
- 1.57mm
- Pitch - Mating :
- 0.156 3.96mm
- Number of Rows :
- 1
- Shrouding :
- Shrouded - 1 Wall
- Contact Shape :
- Square
- Orientation :
- RIGHT ANGLE
- Published :
- 2008
- Mounting Type :
- Through Hole, Right Angle
- RoHS Status :
- RoHS Compliant
- Insulation Color :
- Natural
- Contact Length - Mating :
- 0.400 10.16mm
- Flammability Rating :
- UL94 V-0
- Contact Material :
- COPPER ALLOY
- Operating Supply Voltage :
- 600V
- Approval Agency :
- CSA
- Voltage - Rated :
- 600VAC
- Current Rating :
- 7A
- Plating :
- Tin
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Packaging :
- Bulk
- PCB Mounting Orientation :
- RIGHT ANGLE
- Fastening Type :
- Friction Lock
- Number of Positions Loaded :
- All
- Underplate Material :
- Nickel
- Contact Length - Post :
- 0.175 4.45mm
- Lead Length :
- 4.45mm
- Contact Gender :
- Male
- Contact Finish - Mating :
- Tin
- Pitch :
- 3.9624mm
- Insulation Material :
- Thermoplastic, Glass Filled
- Min Operating Temperature :
- -67°C
- Length :
- 15.8496mm
- Number of Positions :
- 4
- Max Operating Temperature :
- 221°C
- Housing Color :
- Natural
- Radiation Hardening :
- No
- Plating Thickness :
- 2.54μm
- Sealable :
- No
- Current Rating (Amps) :
- Varies by WireGAuge
- Number of Contacts :
- 4
- Mating Post Length :
- 10.16mm
- Applications :
- General Purpose, Industrial
- Number of Power Positions :
- 4
- Contact Finish - Post :
- Tin
- Datasheets
- 3-644754-4
3-644754-4 Documents
MTA-156 Series 1-Row Header Solder Copper Alloy Bulk Through Hole, Right Angle Tin Thermoplastic, Glass Filled 4-Position Board to Cable/Wire 0.300 7.62mm Height
3-644754-4 Overview
This product is packaged in a Header box.Through Hole, Right Angle indicates that the device is mounted.An Bulk case is utilized for packaging the product.The product is a part of the MTA-156 Series.Use it below 221°C.A minimum temperature of -67°C must be maintained for the operation of this device.There is the possibility of using the device for General Purpose, Industrial.By Through Hole, the part is mounted.The operating voltage of this memory is 600V.Operating temperature is set to -55°C~105°C.
3-644754-4 Features
MTA-156 series
3-644754-4 Applications
There are a lot of TE Connectivity AMP Connectors
3-644754-4 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
