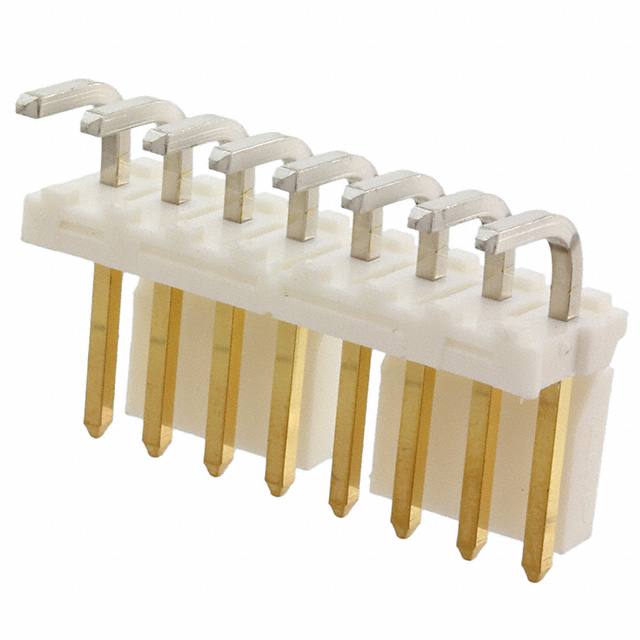

3-644629-8
Or copy the link below:
- Mfr.Part #
- 3-644629-8
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER R/A 8POS 3.96MM
- Stock
- 22,551
- In Stock ：
- 22,551
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Packaging :
- Bulk
- Number of Rows :
- 1
- Depth :
- 19.69mm
- Voltage - Rated AC :
- 600V
- Voltage - Rated :
- 600V
- RoHS Status :
- RoHS Compliant
- Max Voltage Rating (AC) :
- 600V
- JESD-609 Code :
- e3
- Contact Length - Mating :
- 11.43mm
- Mount :
- Through Hole
- Published :
- 2008
- Fastening Type :
- Friction
- ELV :
- Compliant
- Lead Length :
- 3.18mm
- Min Operating Temperature :
- -55°C
- Filter Feature :
- No
- UL Flammability Code :
- 94V-0
- Number of Contacts :
- 8
- Flammability Rating :
- UL94 V-0
- Shrouding :
- No
- Additional Feature :
- POLARIZED
- PCB Mounting Orientation :
- RIGHT ANGLE
- Pbfree Code :
- yes
- Contact Plating :
- Tin, Gold
- Connector Type :
- Header, Pin, Plug
- Orientation :
- RIGHT ANGLE
- Contact Shape :
- Square
- MIL Conformance :
- No
- Color :
- Natural
- Termination :
- Solder
- Contact Material :
- COPPER ALLOY
- Housing Material :
- Polyester
- Factory Lead Time :
- 18 Weeks
- IEC Conformance :
- No
- Contact Gender :
- Male
- Option :
- GENERAL PURPOSE
- Max Operating Temperature :
- 105°C
- DIN Conformance :
- No
- Length :
- 31.57mm
- Mixed Contacts :
- No
- Contact Finish - Mating :
- GOLD (30)
- Contact Resistance :
- 3mOhm
- Current Rating :
- 7A
- ECCN Code :
- EAR99
- Pitch :
- 3.96mm
- Datasheets
- 3-644629-8
1-Row Header, Pin, Plug Solder COPPER ALLOY Bulk GOLD (30)
3-644629-8 Overview
Packaging is in the form of Header, Pin, Plug.An orange Bulk case is used to package the product.Other features include POLARIZED, to name just a few.If the temperature is below 105°C, it's best to use it.-55°C is the minimum temperature for this device.There is a mounting hole at Through Hole.
3-644629-8 Features
3-644629-8 Applications
There are a lot of TE Connectivity
3-644629-8 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
