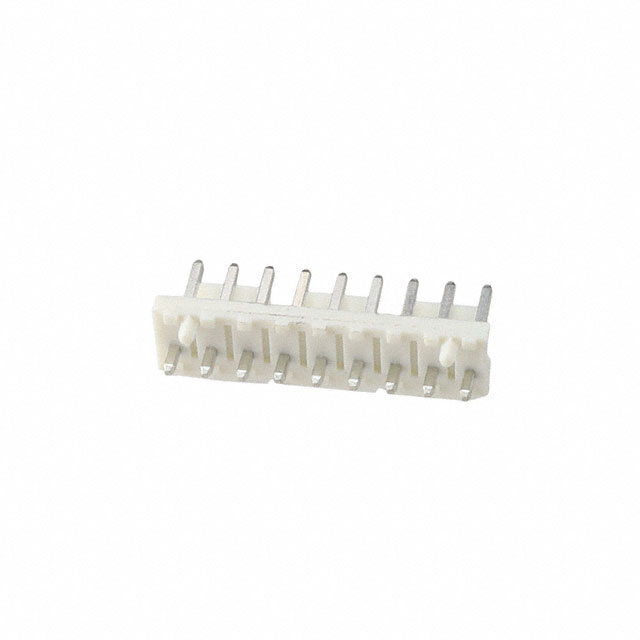

3-644615-9
Or copy the link below:
- Mfr.Part #
- 3-644615-9
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 9POS 3.96MM
- Stock
- 1,370
- In Stock ：
- 1,370
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Contact Current Rating :
- 7A
- Lifecycle Status :
- ACTIVE (Last Updated: 5 months ago)
- Factory Lead Time :
- 16 Weeks
- Underplate Material :
- Nickel
- Circuit Application :
- Power
- Operating Temperature :
- -55°C~105°C
- Termination :
- Solder
- Sealable :
- No
- Contact Length - Post :
- 0.125 3.18mm
- Min Operating Temperature :
- -67°C
- Flammability Rating :
- UL94 V-0
- Feature :
- Board Guide, Keying Slot
- Shrouding :
- Shrouded - 1 Wall
- Insulation Height :
- 0.545 13.84mm
- Mounting Type :
- Through Hole
- Overall Contact Length :
- 0.700 17.78mm
- Number of Power Positions :
- 9
- Series :
- MTA-156
- Max Voltage Rating (AC) :
- 600V
- Contact Shape :
- Square
- Contact Length - Mating :
- 0.450 11.43mm
- Connector Type :
- Header
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Insulation Material :
- Thermoplastic, Glass Filled
- Current Rating :
- 7A
- Mount :
- Through Hole
- Operating Supply Voltage :
- 600V
- Current Rating (Amps) :
- Varies by WireGAuge
- Lead Free :
- Lead Free
- Applications :
- General Purpose, Industrial
- Contact Finish - Post :
- Tin
- RoHS Status :
- RoHS Compliant
- Pitch :
- 3.9624mm
- Length :
- 35.5346mm
- Voltage - Rated :
- 600VAC
- Contact Retention :
- Without
- Orientation :
- Vertical
- Packaging :
- Bulk
- Contact Finish Thickness - Mating :
- 150.0μin 3.81μm
- Style :
- Board to Cable/Wire
- Published :
- 2008
- Contact Plating :
- Tin
- Plating :
- Tin
- Approval Agency :
- CSA
- Mating Post Length :
- 11.43mm
- Material Flammability Rating :
- UL94 V-0
- Housing Material :
- Polyester
- Lead Length :
- 3.18mm
- Contact Gender :
- Male
- Contact Finish Thickness - Post :
- 150.0μin 3.81μm
- Number of Rows :
- 1
- Max Operating Temperature :
- 221°C
- ELV :
- Compliant
- Number of Positions :
- 9
- Fastening Type :
- Friction Lock
- Color :
- Natural
- Voltage - Rated AC :
- 600V
- Contact Type :
- Male Pin
- Housing Color :
- White, Natural
- Radiation Hardening :
- No
- Height :
- 13.843mm
- Number of Positions Loaded :
- All
- Depth :
- 10.8mm
- Contact Finish - Mating :
- Tin
- PCB Thickness :
- 1.57mm
- Contact Material :
- COPPER ALLOY
- Contact Resistance :
- 3mOhm
- Number of Contacts :
- 9
- PCB Mounting Orientation :
- Vertical
- Plating Thickness :
- 150μm
- Insulation Color :
- Natural
- Pitch - Mating :
- 0.156 3.96mm
- Datasheets
- 3-644615-9
MTA-156 Series 1-Row Header Solder Copper Alloy Bulk Through Hole Tin Thermoplastic, Glass Filled 9-Position Board to Cable/Wire 0.545 13.84mm Height
3-644615-9 Overview
The product is packaged in Header.This device is mounted in the Through Hole position.It has been determined that a Bulk case is necessary to package the product.There is a product in the MTA-156 Series.When the temperature is below 221°C, it is best to use it.A minimum operating temperature of -67°C is required for this device.The device could be used for the following application: General Purpose, Industrial.There are a number of advantages to its Board Guide, Keying Slot feature.Part Through Hole is mounted to the part.600V is the operating supply voltage for this memory.As a result, the device runs at -55°C~105°C Operating Temperature.
3-644615-9 Features
MTA-156 series
3-644615-9 Applications
There are a lot of TE Connectivity AMP Connectors
3-644615-9 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
