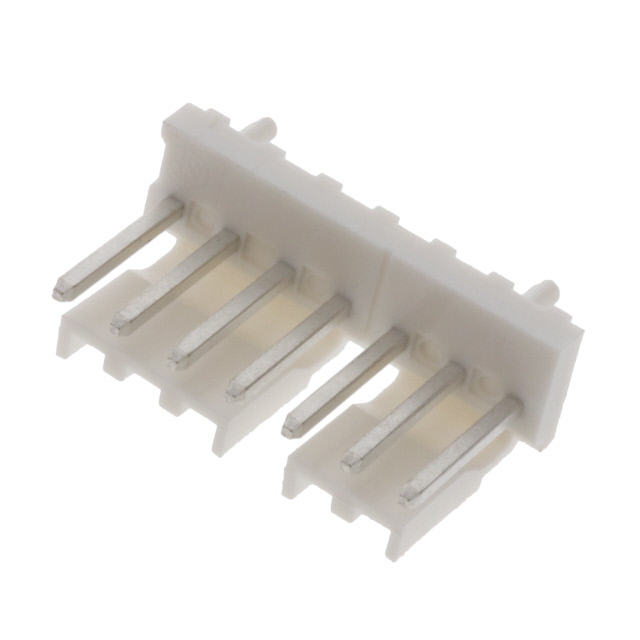

3-644615-7
Or copy the link below:
- Mfr.Part #
- 3-644615-7
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 7POS 3.96MM
- Stock
- 1,874
- In Stock ：
- 1,874
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Insulation Material :
- Thermoplastic, Glass Filled
- PCB Thickness :
- 1.57mm
- Contact Retention :
- Without
- Height :
- 13.843mm
- Contact Plating :
- Tin
- Pitch :
- 3.96mm
- Contact Finish - Post :
- Tin
- Feature :
- Board Guide, Keying Slot
- Housing Material :
- Polyester
- Number of Positions :
- 7
- Radiation Hardening :
- No
- Termination :
- Solder
- Contact Gender :
- Male
- Sealable :
- No
- Connector Type :
- Header
- Housing Color :
- White, Natural
- Contact Length - Post :
- 0.125 3.18mm
- Contact Shape :
- Square
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Overall Contact Length :
- 0.700 17.78mm
- Max Operating Temperature :
- 221°C
- RoHS Status :
- RoHS Compliant
- Max Voltage Rating (AC) :
- 600V
- Depth :
- 10.8mm
- Shrouding :
- Shrouded - 1 Wall
- Insulation Height :
- 0.545 13.84mm
- Circuit Application :
- Power
- Current Rating (Amps) :
- Varies by WireGAuge
- Packaging :
- Bulk
- Contact Finish - Mating :
- Tin
- Length :
- 27.61mm
- Color :
- Natural
- Voltage - Rated :
- 600VAC
- Orientation :
- Vertical
- Pitch - Mating :
- 0.156 3.96mm
- Mating Post Length :
- 11.43mm
- Factory Lead Time :
- 16 Weeks
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Current Rating :
- 7A
- Fastening Type :
- Friction Lock
- PCB Mounting Orientation :
- Vertical
- Underplate Material :
- Nickel
- Lead Length :
- 3.18mm
- Contact Finish Thickness - Post :
- 150.0μin 3.81μm
- Approval Agency :
- CSA
- Operating Supply Voltage :
- 600V
- Series :
- MTA-156
- Min Operating Temperature :
- -67°C
- Material Flammability Rating :
- UL94 V-0
- Plating Thickness :
- 150μm
- Number of Positions Loaded :
- All
- Contact Type :
- Male Pin
- Mount :
- Through Hole
- Number of Power Positions :
- 7
- Mounting Type :
- Through Hole
- Contact Finish Thickness - Mating :
- 150.0μin 3.81μm
- Voltage - Rated AC :
- 600V
- Operating Temperature :
- -55°C~105°C
- Number of Contacts :
- 7
- Contact Material :
- COPPER ALLOY
- Insulation Color :
- Natural
- Style :
- Board to Cable/Wire
- Contact Resistance :
- 3mOhm
- Contact Length - Mating :
- 0.450 11.43mm
- Published :
- 2007
- ELV :
- Compliant
- Flammability Rating :
- UL94 V-0
- Applications :
- General Purpose, Industrial
- Current Rating :
- 7A
- Number of Rows :
- 1
- Plating :
- Tin
- Datasheets
- 3-644615-7
MTA-156 Series 1-Row Header Solder Copper Alloy Bulk Through Hole Tin Thermoplastic, Glass Filled 7-Position Board to Cable/Wire 0.545 13.84mm Height
3-644615-7 Overview
The product comes in a package of Header.Through Hole is the type of mounting for the device.To package the product, a Bulk case is used.The product is a member of the MTA-156 Series.Use it when the temperature is below 221°C.Temperatures below -67°C are required for this device to operate.The device may be used for the following applications: General Purpose, Industrial.It is more powerful in many ways due to its Board Guide, Keying Slot feature.It is mounted by Through Hole.Its operating supply voltage is 600V.It operates at an operating temperature of -55°C~105°C.
