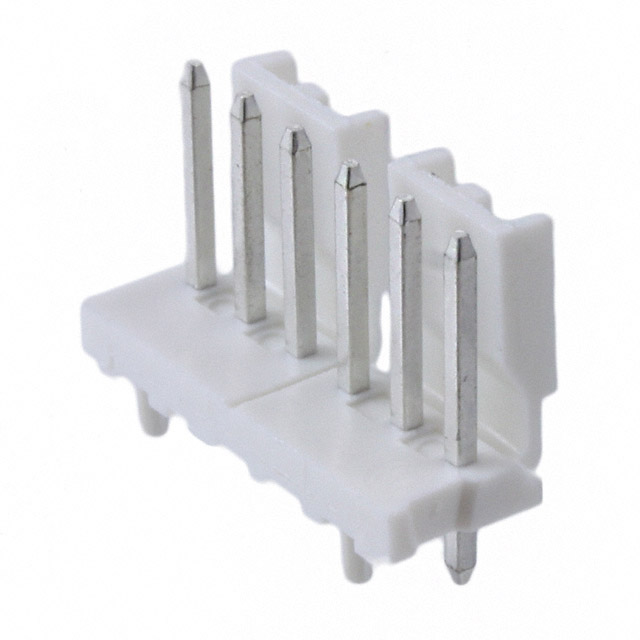

3-644615-6
Or copy the link below:
- Mfr.Part #
- 3-644615-6
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 6POS 3.96MM
- Stock
- 2,007
- In Stock ：
- 2,007
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Contact Finish - Post :
- Tin
- Mating Post Length :
- 11.43mm
- Insulation Color :
- Natural
- Plating :
- Tin
- Number of Positions Loaded :
- All
- Length :
- 23.65mm
- Style :
- Board to Cable/Wire
- Contact Material :
- COPPER ALLOY
- Packaging :
- Bulk
- Pitch :
- 3.9624mm
- Depth :
- 10.8mm
- Contact Finish Thickness - Post :
- 150.0μin 3.81μm
- Contact Finish - Mating :
- Tin
- Color :
- Natural
- Overall Contact Length :
- 0.700 17.78mm
- Contact Finish Thickness - Mating :
- 150.0μin 3.81μm
- Applications :
- General Purpose, Industrial
- Feature :
- Board Guide, Keying Slot
- Circuit Application :
- Power
- Number of Positions :
- 6
- Housing Color :
- Natural
- Underplate Material :
- Nickel
- Lead Free :
- Lead Free
- Material Flammability Rating :
- UL94 V-0
- Housing Material :
- Polyester
- Operating Temperature :
- -55°C~105°C
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Published :
- 2008
- Contact Current Rating :
- 7A
- Flammability Rating :
- UL94 V-0
- Fastening Type :
- Friction Lock
- PCB Mounting Orientation :
- Vertical
- RoHS Status :
- RoHS Compliant
- Contact Shape :
- Square
- Pitch - Mating :
- 0.156 3.96mm
- Voltage - Rated :
- 600VAC
- Approval Agency :
- CSA
- Contact Plating :
- Tin
- Sealable :
- No
- Connector Type :
- Header
- PCB Thickness :
- 1.57mm
- Orientation :
- Vertical
- Min Operating Temperature :
- -67°C
- Contact Gender :
- Male
- Number of Power Positions :
- 6
- Current Rating :
- 7A
- Termination :
- Solder
- Gender :
- Male
- Current Rating (Amps) :
- Varies by WireGAuge
- Factory Lead Time :
- 16 Weeks
- Insulation Height :
- 0.545 13.84mm
- Number of Rows :
- 1
- Mounting Type :
- Through Hole
- Number of Contacts :
- 6
- Shrouding :
- Shrouded - 1 Wall
- Contact Resistance :
- 3mOhm
- Insulation Material :
- Thermoplastic, Glass Filled
- Plating Thickness :
- 150μm
- Operating Supply Voltage :
- 600V
- Mount :
- Through Hole
- Contact Length - Post :
- 0.125 3.18mm
- Contact Type :
- Male Pin
- Series :
- MTA-156
- ELV :
- Compliant
- Height :
- 13.843mm
- Lead Length :
- 3.18mm
- Voltage - Rated AC :
- 600V
- Radiation Hardening :
- No
- Max Operating Temperature :
- 221°C
- Contact Retention :
- Without
- Contact Length - Mating :
- 0.450 11.43mm
- Max Voltage Rating (AC) :
- 600V
- Datasheets
- 3-644615-6
MTA-156 Series 1-Row Header Solder Copper Alloy Bulk Through Hole Tin Thermoplastic, Glass Filled 6-Position Board to Cable/Wire 0.545 13.84mm Height
3-644615-6 Overview
It comes in Header packaging.The device's mounting type is Through Hole.In order to package the product, a Bulk case is used.It belongs to the MTA-156 Series of products.It's best to use it when the temperature is below 221°C.This device must operate at a minimum temperature of -67°C.General Purpose, Industrial is a possible application for the device.Its Board Guide, Keying Slot feature renders it more powerful in many ways.The part is mounted by Through Hole.This memory's operating supply voltage is 600V.The device runs in -55°C~105°C Operating Temperature.
3-644615-6 Features
MTA-156 series
3-644615-6 Applications
There are a lot of TE Connectivity AMP Connectors
3-644615-6 Rectangular Connectors applications.
- Industrial Automation
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
