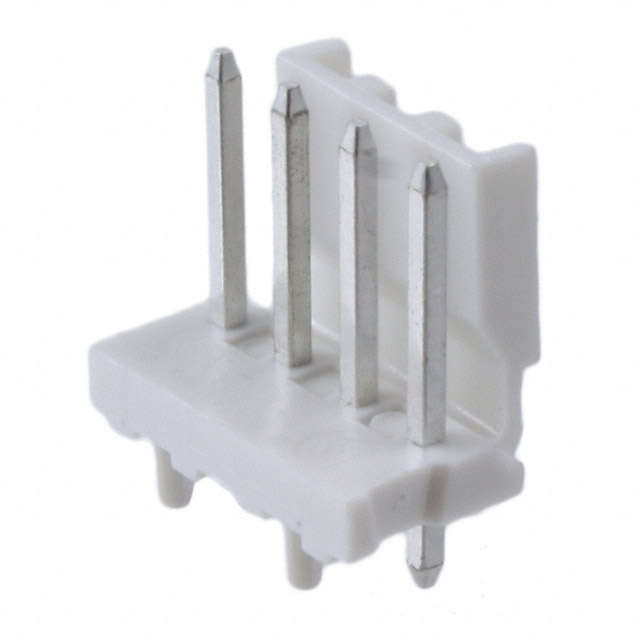

3-644615-4
Or copy the link below:
- Mfr.Part #
- 3-644615-4
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 4POS 3.96MM
- Stock
- 1
- In Stock ：
- 1
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Contact Current Rating :
- 7A
- PCB Thickness :
- 1.57mm
- IEC Conformance :
- No
- Insulation Height :
- 0.545 13.84mm
- Insulation Color :
- Natural
- Applications :
- General Purpose, Industrial
- Fastening Type :
- Friction Lock
- Circuit Application :
- Power
- Lead Length :
- 3.18mm
- Length :
- 15.7226mm
- Approval Agency :
- CSA
- Terminal Pitch :
- 3.96mm
- Plating Thickness :
- 150μm
- Insulation Material :
- Thermoplastic, Glass Filled
- Contact Finish - Mating :
- Tin
- Contact Length - Post :
- 0.125 3.18mm
- Mounting Type :
- Through Hole
- Number of Power Positions :
- 4
- Material Flammability Rating :
- UL94 V-0
- Pbfree Code :
- yes
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Sealable :
- No
- Polarization Key :
- POLARIZED HOUSING
- Shrouding :
- Shrouded - 1 Wall
- ECCN Code :
- EAR99
- Flammability Rating :
- UL94 V-0
- Insertion Force-Max :
- .8896 N
- Durability :
- 25 Cycles
- Orientation :
- Vertical
- Insulation Resistance :
- 5000000000Ohm
- Current Rating (Amps) :
- Varies by WireGAuge
- JESD-609 Code :
- e3
- Mixed Contacts :
- No
- DIN Conformance :
- No
- Housing Material :
- Polyester
- Contact Type :
- Male Pin
- Voltage - Rated AC :
- 600V
- Depth :
- 10.8mm
- Mount :
- Through Hole
- Max Voltage Rating (AC) :
- 600V
- PCB Contact Pattern :
- RECTANGULAR
- Underplate Material :
- Nickel
- Number of Rows :
- 1
- Lifecycle Status :
- ACTIVE (Last Updated: 4 days ago)
- Contact Resistance :
- 3mOhm
- Dielectric Withstanding Voltage :
- 2200VAC V
- RoHS Status :
- RoHS Compliant
- Height :
- 13.843mm
- Operating Temperature :
- -55°C~105°C
- Factory Lead Time :
- 16 Weeks
- MIL Conformance :
- No
- Number Of PCB Rows :
- 1
- Termination :
- Solder
- Housing Color :
- White, Natural
- Contact Finish Thickness - Post :
- 150.0μin 3.81μm
- Contact Finish Thickness - Mating :
- 150.0μin 3.81μm
- Connector Type :
- Header
- Contact Gender :
- Male
- Style :
- Board to Cable/Wire
- Series :
- MTA-156
- Current Rating :
- 7A
- Reliability :
- COMMERCIAL
- Contact Shape :
- Square
- Overall Contact Length :
- 0.700 17.78mm
- Published :
- 2007
- Voltage - Rated :
- 600VAC
- ELV :
- Compliant
- Pitch - Mating :
- 0.156 3.96mm
- Contact Material :
- COPPER ALLOY
- Mating Post Length :
- 11.43mm
- Contact Length - Mating :
- 0.450 11.43mm
- Filter Feature :
- No
- Contact Retention :
- Without
- Operating Supply Voltage :
- 600V
- Number of Positions Loaded :
- All
- Number of Conductors :
- ONE
- Feature :
- Board Guide
- Packaging :
- Bulk
- Datasheets
- 3-644615-4
MTA-156 Series 1-Row Header Solder Copper Alloy Bulk Through Hole Tin Thermoplastic, Glass Filled Board to Cable/Wire 0.545 13.84mm Height
3-644615-4 Overview
The product comes in a package of Header.Through Hole is the type of mounting for the device.To package the product, a Bulk case is used.The product is a member of the MTA-156 Series.The device may be used for the following applications: General Purpose, Industrial.It is more powerful in many ways due to its Board Guide feature.It is mounted by Through Hole.Its operating supply voltage is 600V.It operates at an operating temperature of -55°C~105°C.
3-644615-4 Features
MTA-156 series
3-644615-4 Applications
There are a lot of TE Connectivity AMP Connectors
3-644615-4 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
