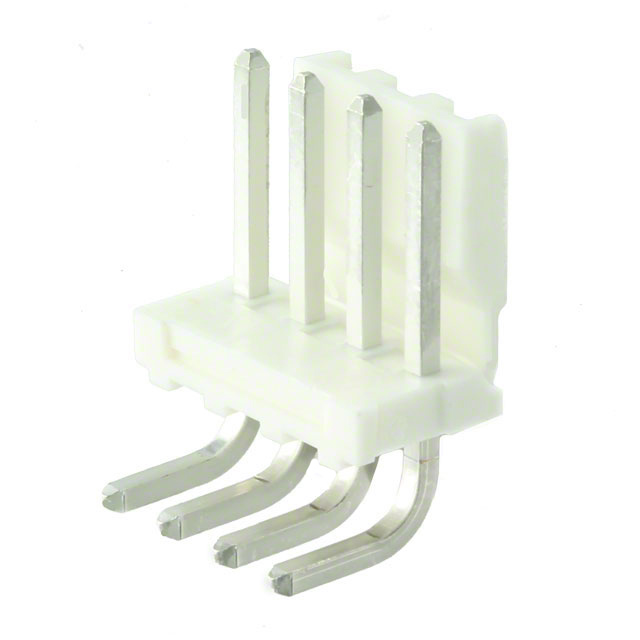

3-644613-4
Or copy the link below:
- Mfr.Part #
- 3-644613-4
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER R/A 4POS 3.96MM
- Stock
- 2,621
- In Stock ：
- 2,621
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Number of Rows :
- 1
- Connector Type :
- Header
- Mating Post Length :
- 11.43mm
- Contact Finish Thickness - Mating :
- 150.0μin 3.81μm
- Termination :
- Solder
- ELV :
- Compliant
- Sealable :
- No
- Pitch - Mating :
- 0.156 3.96mm
- Lifecycle Status :
- ACTIVE (Last Updated: 4 days ago)
- Circuit Application :
- Power
- Plating :
- Tin
- Height :
- 19.81mm
- Current Rating :
- 7A
- Number of Signal Positions :
- 0
- Contact Type :
- Male Pin
- RoHS Status :
- RoHS Compliant
- Contact Finish - Mating :
- Tin
- Max Operating Temperature :
- 221°C
- Insulation Height :
- 0.300 7.62mm
- Contact Length - Mating :
- 0.450 11.43mm
- Fastening Type :
- Friction Lock
- Packaging :
- Bulk
- PCB Thickness :
- 1.57mm
- Operating Temperature :
- -55°C~105°C
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Length - Post :
- 0.125 3.18mm
- Current Rating (Amps) :
- Varies by WireGAuge
- Length :
- 15.7226mm
- Plating Thickness :
- 5.9μm
- Depth :
- 19.69mm
- Pitch :
- 3.9624mm
- Material Flammability Rating :
- UL94 V-0
- Applications :
- General Purpose, Industrial
- Number of Positions :
- 4
- Mount :
- Through Hole
- Contact Plating :
- Tin
- Flammability Rating :
- UL94 V-0
- Contact Finish Thickness - Post :
- 150.0μin 3.81μm
- Orientation :
- RIGHT ANGLE
- Insulation Color :
- Natural
- Operating Supply Voltage :
- 600V
- Contact Finish - Post :
- Tin
- Insulation Material :
- Thermoplastic, Glass Filled
- Contact Gender :
- Male
- Lead Length :
- 3.18mm
- Style :
- Board to Cable/Wire
- Contact Retention :
- Without
- Min Operating Temperature :
- -67°C
- Number of Positions Loaded :
- All
- PCB Mounting Orientation :
- RIGHT ANGLE
- Published :
- 2008
- Approval Agency :
- CSA
- Housing Color :
- White, Natural
- Contact Material :
- COPPER ALLOY
- Number of Power Positions :
- 4
- Housing Material :
- Polyester
- Underplate Material :
- Nickel
- Color :
- Natural
- Contact Current Rating :
- 7A
- Mounting Type :
- Through Hole, Right Angle
- Number of Contacts :
- 4
- Voltage - Rated AC :
- 600V
- Contact Resistance :
- 3mOhm
- Max Voltage Rating (AC) :
- 600V
- Contact Shape :
- Square
- Voltage - Rated :
- 600VAC
- Factory Lead Time :
- 18 Weeks
- Shrouding :
- Shrouded - 1 Wall
- Series :
- MTA-156
- Radiation Hardening :
- No
- Datasheets
- 3-644613-4
3-644613-4 Documents
MTA-156 Series 1-Row Header Solder Copper Alloy Bulk Through Hole, Right Angle Tin Thermoplastic, Glass Filled 4-Position Board to Cable/Wire 0.300 7.62mm Height
3-644613-4 Overview
It comes in Header packaging.The device's mounting type is Through Hole, Right Angle.In order to package the product, a Bulk case is used.It belongs to the MTA-156 Series of products.It's best to use it when the temperature is below 221°C.This device must operate at a minimum temperature of -67°C.General Purpose, Industrial is a possible application for the device.The part is mounted by Through Hole.This memory's operating supply voltage is 600V.The device runs in -55°C~105°C Operating Temperature.
3-644613-4 Features
MTA-156 series
3-644613-4 Applications
There are a lot of TE Connectivity AMP Connectors
3-644613-4 Rectangular Connectors applications.
- Industrial Automation
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
