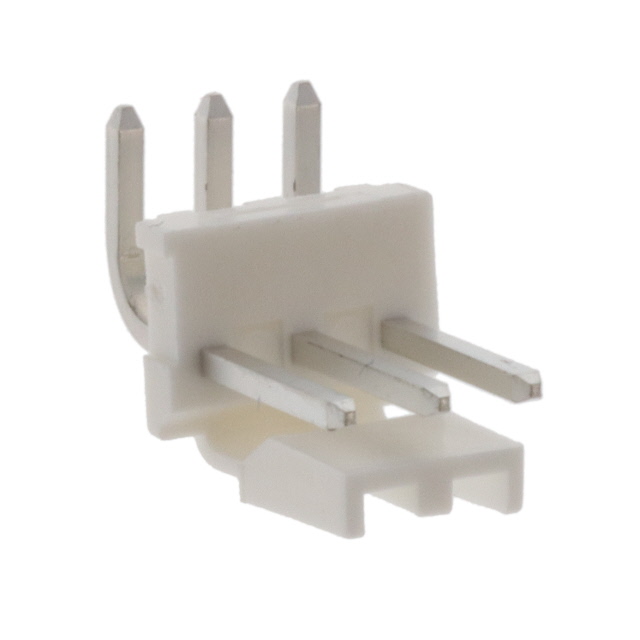

3-644613-3
Or copy the link below:
- Mfr.Part #
- 3-644613-3
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER R/A 3POS 3.96MM
- Stock
- 1,417
- In Stock ：
- 1,417
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Shrouding :
- Shrouded - 1 Wall
- Material Flammability Rating :
- UL94 V-0
- Contact Length - Post :
- 0.125 3.18mm
- Voltage - Rated AC :
- 600V
- Voltage - Rated :
- 600VAC
- Insulation Material :
- Thermoplastic, Glass Filled
- Flammability Rating :
- UL94 V-0
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Resistance :
- 3mOhm
- Contact Retention :
- Without
- Contact Finish Thickness - Post :
- 150.0μin 3.81μm
- Number of Signal Positions :
- 0
- Contact Length - Mating :
- 0.450 11.43mm
- Approval Agency :
- CSA
- Contact Gender :
- Male
- Sealable :
- No
- Contact Current Rating :
- 7A
- Lifecycle Status :
- ACTIVE (Last Updated: 1 day ago)
- Length :
- 11.7602mm
- Number of Power Positions :
- 3
- Mount :
- Through Hole
- Radiation Hardening :
- No
- Contact Type :
- Male Pin
- Contact Plating :
- Tin
- Contact Material :
- COPPER ALLOY
- Depth :
- 19.69mm
- Style :
- Board to Cable/Wire
- Max Voltage Rating (AC) :
- 600V
- Number of Positions Loaded :
- All
- Connector Type :
- Header
- Max Operating Temperature :
- 221°C
- ELV :
- Compliant
- Housing Color :
- White, Natural
- Number of Rows :
- 1
- Housing Material :
- Polyester
- Height :
- 19.81mm
- Insulation Height :
- 0.300 7.62mm
- Applications :
- General Purpose, Industrial
- Fastening Type :
- Friction Lock
- Factory Lead Time :
- 20 Weeks
- Number of Contacts :
- 3
- Lead Length :
- 3.18mm
- Mounting Type :
- Through Hole, Right Angle
- Plating Thickness :
- 5.9μm
- Pitch :
- 3.9624mm
- Min Operating Temperature :
- -67°C
- Operating Supply Voltage :
- 600V
- Number of Positions :
- 3
- RoHS Status :
- RoHS Compliant
- Termination :
- Solder
- Plating :
- Tin
- Pitch - Mating :
- 0.156 3.96mm
- Underplate Material :
- Nickel
- Packaging :
- Bulk
- Orientation :
- RIGHT ANGLE
- Mating Post Length :
- 11.43mm
- Circuit Application :
- Power
- Insulation Color :
- Natural
- Operating Temperature :
- -55°C~105°C
- Series :
- MTA-156
- Current Rating :
- 7A
- Contact Finish Thickness - Mating :
- 150.0μin 3.81μm
- PCB Thickness :
- 1.57mm
- Contact Finish - Mating :
- Tin
- Color :
- Natural
- PCB Mounting Orientation :
- RIGHT ANGLE
- Contact Finish - Post :
- Tin
- Contact Shape :
- Square
- Current Rating (Amps) :
- Varies by WireGAuge
- Published :
- 2008
- Datasheets
- 3-644613-3
3-644613-3 Documents
MTA-156 Series 1-Row Header Solder Copper Alloy Bulk Through Hole, Right Angle Tin Thermoplastic, Glass Filled 3-Position Board to Cable/Wire 0.300 7.62mm Height
3-644613-3 Overview
You get it in Header packaging.Mounting type Through Hole, Right Angle is selected for the device.Packaged in a Bulk case.A member of the MTA-156 Series.Using it at a temperature below 221°C is ideal.A minimum temperature of -67°C is needed for this device.Here's a possible application for the device: General Purpose, Industrial.There's a Through Hole mount on the part.It operates at a voltage of 600V.Device runs in -55°C~105°C operating temperature.
3-644613-3 Features
MTA-156 series
3-644613-3 Applications
There are a lot of TE Connectivity AMP Connectors
3-644613-3 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
