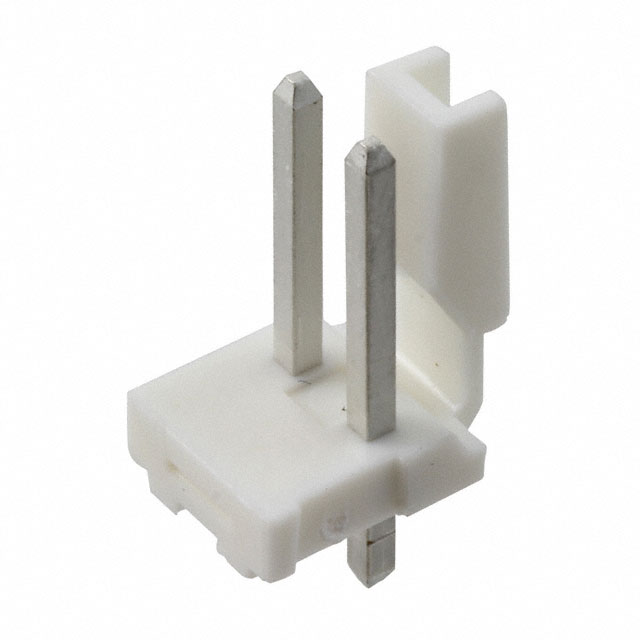

3-644611-2
Or copy the link below:
- Mfr.Part #
- 3-644611-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 2POS 3.96MM
- Stock
- 5,224
- In Stock ：
- 5,224
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Series :
- MTA-156
- Voltage - Rated :
- 600VAC
- IEC Conformance :
- No
- Flammability Rating :
- UL94 V-0
- Current Rating :
- 7A
- PCB Thickness :
- 1.57mm
- Applications :
- General Purpose, Industrial
- Depth :
- 10.8mm
- Contact Type :
- Male Pin
- Contact Current Rating :
- 7A
- Housing Material :
- Polyester
- Sealable :
- No
- Packaging :
- Bulk
- Underplate Material :
- Nickel
- Contact Finish Thickness - Post :
- 150.0μin 3.81μm
- Contact Material :
- COPPER ALLOY
- Contact Finish Thickness - Mating :
- 150.0μin 3.81μm
- Approval Agency :
- CSA
- Housing Color :
- Natural
- UL Flammability Code :
- 94V-0
- Insulation Material :
- Thermoplastic, Glass Filled
- Termination :
- Solder
- Mounting Type :
- Through Hole
- Current Rating (Amps) :
- Varies by WireGAuge
- Length :
- 7.8mm
- MIL Conformance :
- No
- Lead Length :
- 3.18mm
- Shrouding :
- Shrouded - 1 Wall
- Connector Type :
- Header
- Height :
- 13.843mm
- Voltage - Rated AC :
- 600V
- Pitch - Mating :
- 0.156 3.96mm
- Published :
- 2008
- Filter Feature :
- No
- Material Flammability Rating :
- UL94 V-0
- Plating Thickness :
- 150μm
- Overall Contact Length :
- 0.700 17.78mm
- Number of Rows :
- 1
- Pbfree Code :
- yes
- Contact Finish - Mating :
- Tin
- Operating Supply Voltage :
- 600V
- Contact Retention :
- Without
- Mount :
- Through Hole
- Factory Lead Time :
- 19 Weeks
- Style :
- Board to Cable/Wire
- DIN Conformance :
- No
- Number of Power Positions :
- 2
- Mating Post Length :
- 11.43mm
- ELV :
- Compliant
- Contact Gender :
- Male
- Terminal Pitch :
- 3.96mm
- Operating Temperature :
- -55°C~105°C
- Lifecycle Status :
- ACTIVE (Last Updated: 1 week ago)
- Contact Shape :
- Square
- Contact Length - Mating :
- 0.450 11.43mm
- JESD-609 Code :
- e3
- Contact Length - Post :
- 0.125 3.18mm
- Mixed Contacts :
- No
- Max Voltage Rating (AC) :
- 600V
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- RoHS Status :
- RoHS Compliant
- Circuit Application :
- Power
- Contact Resistance :
- 3mOhm
- Number of Positions Loaded :
- All
- Insulation Height :
- 0.545 13.84mm
- Orientation :
- Vertical
- Fastening Type :
- Friction Lock
- Datasheets
- 3-644611-2
MTA-156 Series 1-Row Header Solder Copper Alloy Bulk Through Hole Tin Thermoplastic, Glass Filled Board to Cable/Wire 0.545 13.84mm Height
3-644611-2 Overview
Packaging is in the form of Header.This device has a Through Hole mounting type.An orange Bulk case is used to package the product.Specifically, it is one of the products in the MTA-156 Series.There are a variety of possible applications for this device, including General Purpose, Industrial.There is a mounting hole at Through Hole.It runs on 600V voltage.Devices operate at -55°C~105°C operating temperatures.
3-644611-2 Features
MTA-156 series
3-644611-2 Applications
There are a lot of TE Connectivity AMP Connectors
3-644611-2 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
