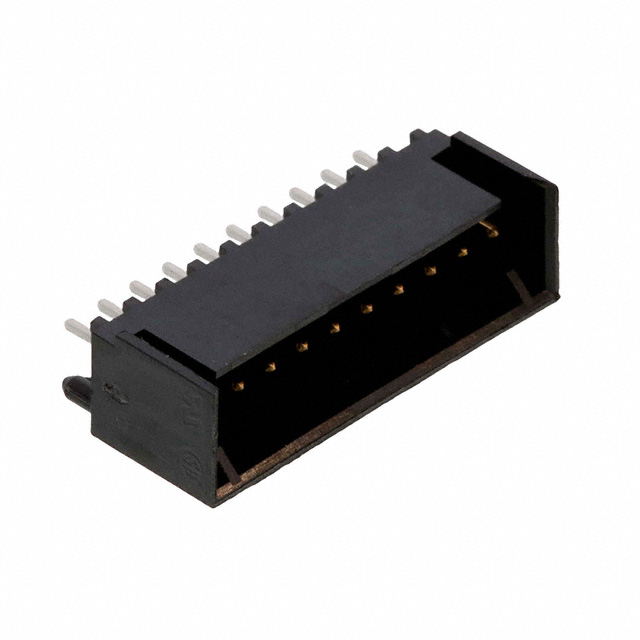

3-644487-0
Or copy the link below:
- Mfr.Part #
- 3-644487-0
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 10POS 2.54MM
- Stock
- 1,001
- In Stock ：
- 1,001
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Pitch - Mating :
- 0.100 2.54mm
- Depth :
- 7.95mm
- Approval Agency :
- CSA
- PCB Mounting Orientation :
- Vertical
- Housing Material :
- Polyester
- Underplate Material :
- Nickel
- Series :
- MTA-100
- Max Voltage Rating (AC) :
- 250V
- Sealable :
- No
- Length :
- 27.53mm
- Contact Length - Post :
- 0.140 3.56mm
- Number of Rows :
- 1
- Feature :
- Board Guide
- Lead Free :
- Lead Free
- Connector Type :
- Header
- Voltage - Rated :
- 250VAC
- Termination :
- Solder
- Overall Contact Length :
- 0.440 11.18mm
- Lead Length :
- 3.56mm
- PCB Thickness :
- 1.6002mm
- Housing Color :
- Black
- Plating Thickness :
- 760 nm
- Radiation Hardening :
- No
- Color :
- Black
- Contact Type :
- Male Pin
- Min Operating Temperature :
- -67°C
- Mating Retention :
- With
- Orientation :
- Vertical
- Style :
- Board to Cable/Wire
- PCB Mount Alignment :
- With
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- Current Rating (Amps) :
- Varies by WireGAuge
- Mount :
- Through Hole
- Max Operating Temperature :
- 221°C
- Flammability Rating :
- UL94 V-0
- Contact Current Rating :
- 5A
- Contact Finish - Mating :
- Gold
- Number of Positions :
- 10
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Insulation Material :
- Polyester
- Current Rating :
- 5A
- Contact Shape :
- Square
- Operating Temperature :
- -55°C~105°C
- Operating Supply Voltage :
- 250V
- Voltage - Rated AC :
- 250V
- Plating :
- Gold
- RoHS Status :
- RoHS Compliant
- Pitch :
- 2.54mm
- Shrouding :
- Shrouded - 4 Wall
- Applications :
- GENERAL PURPOSE
- Length - Tail :
- 3.56mm
- Insulation Color :
- Black
- Contact Resistance :
- 6mOhm
- Insulation Height :
- 0.410 10.41mm
- ELV :
- Compliant
- PCB Mount Retention :
- With
- Contact Length - Mating :
- 0.200 5.08mm
- Fastening Type :
- Friction Lock
- Contact Plating :
- Tin, Gold
- Material Flammability Rating :
- UL94 V-0
- Circuit Application :
- Signal
- Number of Contacts :
- 10
- Packaging :
- Bulk
- Contact Gender :
- Male
- Factory Lead Time :
- 19 Weeks
- Number of Positions Loaded :
- All
- Contact Style :
- Straight
- Height :
- 10.41mm
- Mating Post Length :
- 5.1mm
- Lifecycle Status :
- ACTIVE (Last Updated: 5 days ago)
- Contact Finish - Post :
- Tin
- Mounting Type :
- Through Hole
- Contact Material :
- COPPER ALLOY
- Published :
- 2008
- Datasheets
- 3-644487-0
MTA-100 Series 1-Row Header Solder Copper Alloy Bulk Through Hole Gold Polyester 10-Position Board to Cable/Wire 0.410 10.41mm Height
3-644487-0 Overview
Packaging for this item is Header.There is a mounting type of Through Hole for this device.It is necessary to use a Bulk case for packaging the product.This product is part of the MTA-100 Series.You should use it when it's below 221°C.A minimum temperature of -67°C is required for the operation of this device.A possible application for the device is General Purpose.In many ways, its Board Guide feature makes it more powerful.Through Hole is used to mount the part.The operating supply voltage of this memory is 250V.In this case, the device operates at -55°C~105°C Operating Temperature.
3-644487-0 Features
MTA-100 series
3-644487-0 Applications
There are a lot of TE Connectivity AMP Connectors
3-644487-0 Rectangular Connectors applications.
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
