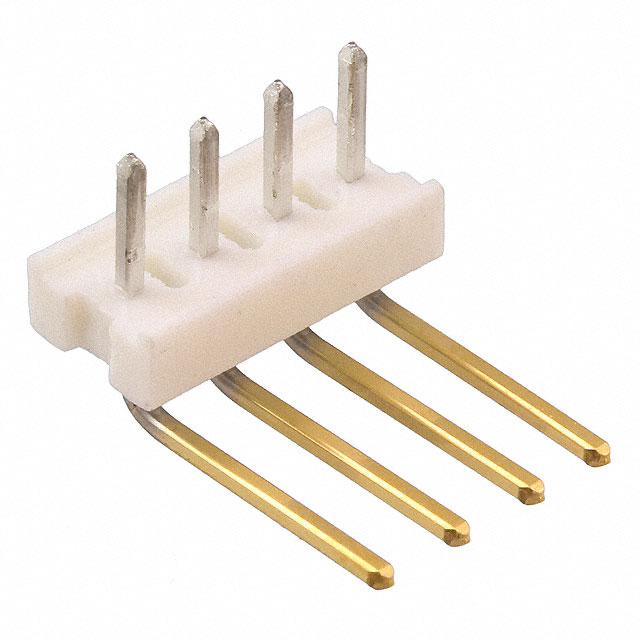

3-641212-4
Or copy the link below:
- Mfr.Part #
- 3-641212-4
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER R/A 4POS 2.54MM
- Stock
- 4,278
- In Stock ：
- 4,278
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Contact Plating :
- Tin, Gold
- Color :
- Natural
- ELV :
- Compliant
- Contact Gender :
- Male
- Packaging :
- Bulk
- Circuit Application :
- Signal
- Sealable :
- No
- Operating Temperature :
- -55°C~105°C
- PCB Thickness :
- 1.6002mm
- Length - Tail :
- 3.56mm
- Plating :
- Gold
- Lead Length :
- 3.56mm
- Series :
- MTA-100
- Contact Length - Post :
- 0.140 3.56mm
- PCB Mounting Orientation :
- RIGHT ANGLE
- Operating Supply Voltage :
- 250V
- Pitch - Mating :
- 0.100 2.54mm
- Voltage - Rated AC :
- 250V
- Length :
- 10.16mm
- Connector Type :
- Header
- Termination :
- Solder
- Min Operating Temperature :
- -67°C
- Pitch :
- 2.54mm
- PCB Mount Alignment :
- Without
- Current Rating :
- 5A
- Insulation Color :
- Natural
- Number of Contacts :
- 4
- Insulation Material :
- Thermoplastic
- Contact Finish - Mating :
- Gold
- PCB Mount Retention :
- Without
- Mating Post Length :
- 7.49mm
- Plating Thickness :
- 1.27μm
- Mating Retention :
- Without
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- RoHS Status :
- RoHS Compliant
- Voltage - Rated :
- 250VAC
- Number of Positions :
- 4
- Published :
- 2005
- Contact Type :
- Male Pin
- Shrouding :
- Unshrouded
- Contact Length - Mating :
- 0.295 7.49mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Finish - Post :
- Tin
- Insulation Height :
- 0.100 2.54mm
- Flammability Rating :
- UL94 V-0
- Contact Current Rating :
- 5A
- Housing Material :
- Polyester
- Contact Finish Thickness - Post :
- 150.0μin 3.81μm
- Mount :
- Through Hole
- Contact Shape :
- Square
- Number of Positions Loaded :
- All
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Current Rating (Amps) :
- Varies by WireGAuge
- Housing Color :
- Natural, White
- Factory Lead Time :
- 17 Weeks
- Radiation Hardening :
- No
- Number of Rows :
- 1
- Orientation :
- RIGHT ANGLE
- Mounting Type :
- Through Hole, Right Angle
- Max Operating Temperature :
- 221°C
- Applications :
- GENERAL PURPOSE
- Approval Agency :
- CSA
- Material Flammability Rating :
- UL94 V-0
- Contact Material :
- COPPER ALLOY
- Style :
- Board to Cable/Wire
- Underplate Material :
- Nickel
- Datasheets
- 3-641212-4
MTA-100 Series 1-Row Header Solder Copper Alloy Bulk Through Hole, Right Angle Gold Thermoplastic 4-Position Board to Cable/Wire 0.100 2.54mm Height
3-641212-4 Overview
Currently, it is packaged in Header.The mounting type of the device is Through Hole, Right Angle.A Bulk case is used to package the product.A product of the MTA-100 Series, it belongs to the range of products of that series.A temperature below 221°C is best for using it.The device must run at -67°C degrees.This device may be used for the purpose of General Purpose.Through Hole represents the mounting point for the part.You're going to need 250V to power this memory.-55°C~105°C Operating Temperature is the default operating temperature for the device.
3-641212-4 Features
MTA-100 series
3-641212-4 Applications
There are a lot of TE Connectivity AMP Connectors
3-641212-4 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
