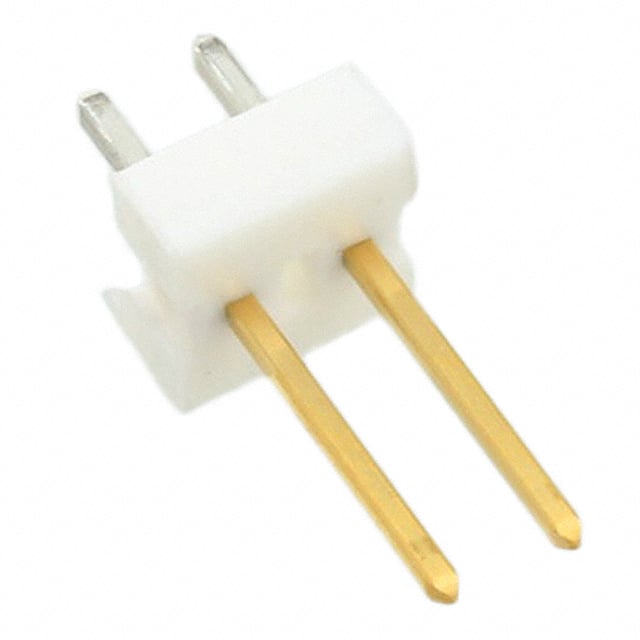

3-641211-2
Or copy the link below:
- Mfr.Part #
- 3-641211-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 2POS 2.54MM
- Stock
- 5,542
- In Stock ：
- 5,542
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Underplate Material :
- Nickel
- Height :
- 2.54mm
- PCB Mounting Orientation :
- Vertical
- Contact Length - Post :
- 0.140 3.56mm
- Number of Positions :
- 2
- Depth :
- 5.08mm
- Current Rating :
- 5A
- Max Voltage Rating (AC) :
- 250V
- Voltage - Rated AC :
- 250V
- Operating Supply Voltage :
- 250V
- Operating Temperature :
- -55°C~105°C
- Min Operating Temperature :
- -67°C
- Voltage - Rated :
- 250VAC
- PCB Thickness :
- 1.6002mm
- Contact Shape :
- Square
- ELV :
- Compliant
- Pitch :
- 2.54mm
- Number of Positions Loaded :
- All
- Number of Rows :
- 1
- Insulation Color :
- Natural
- Contact Plating :
- Tin, Gold
- Shrouding :
- Unshrouded
- Mating Retention :
- Without
- Lead Length :
- 3.56mm
- PCB Mount Retention :
- Without
- Contact Current Rating :
- 5A
- Style :
- Board to Cable/Wire
- Contact Type :
- Male Pin
- Applications :
- GENERAL PURPOSE
- Sealable :
- No
- Contact Material :
- COPPER ALLOY
- Material Flammability Rating :
- UL94 V-0
- Mounting Type :
- Through Hole
- Contact Finish Thickness - Post :
- 150.0μin 3.81μm
- Lead Free :
- Lead Free
- Contact Finish - Mating :
- Gold
- Housing Material :
- Polyester
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Published :
- 2008
- Overall Contact Length :
- 0.535 13.59mm
- Flammability Rating :
- UL94 V-0
- Circuit Application :
- Signal
- Current Rating (Amps) :
- Varies by WireGAuge
- Approval Agency :
- CSA
- Packaging :
- Bulk
- Number of Contacts :
- 2
- Contact Resistance :
- 6mOhm
- Insulation Material :
- Thermoplastic
- Color :
- Natural
- Termination :
- Solder
- Series :
- MTA-100
- Contact Style :
- Straight
- Contact Finish - Post :
- Tin
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- Housing Color :
- Natural, White
- Insulation Height :
- 0.100 2.54mm
- Pitch - Mating :
- 0.100 2.54mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Length - Mating :
- 0.295 7.49mm
- Plating Thickness :
- 380 nm
- PCB Mount Alignment :
- Without
- Contact Gender :
- Male
- Plating :
- Gold
- Connector Type :
- Header
- Length - Tail :
- 3.56mm
- Radiation Hardening :
- No
- Length :
- 5.08mm
- Mating Post Length :
- 7.49mm
- Factory Lead Time :
- 18 Weeks
- Mount :
- Through Hole
- Orientation :
- Vertical
- Max Operating Temperature :
- 221°C
- RoHS Status :
- RoHS Compliant
- Datasheets
- 3-641211-2
MTA-100 Series 1-Row Header Solder Copper Alloy Bulk Through Hole Gold Thermoplastic 2-Position Board to Cable/Wire 0.100 2.54mm Height
3-641211-2 Overview
This product is packaged in a Header box.Through Hole indicates that the device is mounted.An Bulk case is utilized for packaging the product.The product is a part of the MTA-100 Series.Use it below 221°C.A minimum temperature of -67°C must be maintained for the operation of this device.There is the possibility of using the device for General Purpose.By Through Hole, the part is mounted.The operating voltage of this memory is 250V.Operating temperature is set to -55°C~105°C.
3-641211-2 Features
MTA-100 series
3-641211-2 Applications
There are a lot of TE Connectivity AMP Connectors
3-641211-2 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
