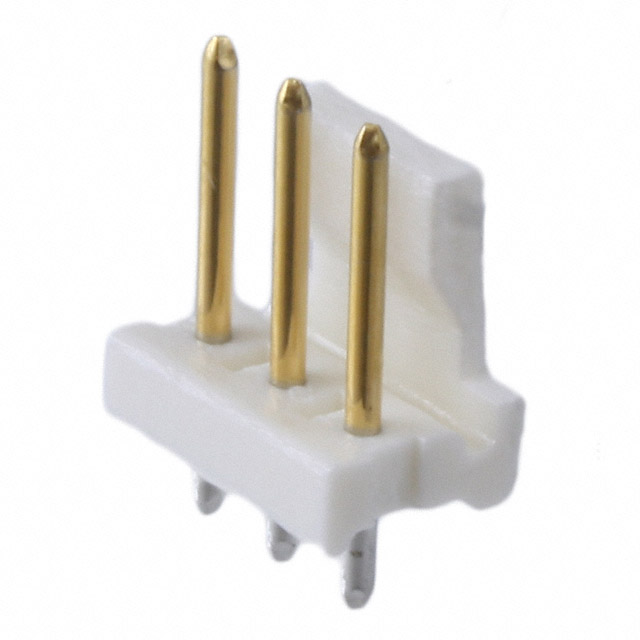

3-641208-3
Or copy the link below:
- Mfr.Part #
- 3-641208-3
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 3POS 3.96MM
- Stock
- 2,013
- In Stock ：
- 2,013
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Contact Length - Post :
- 0.125 3.18mm
- Approval Agency :
- CSA
- ELV :
- Compliant
- Flammability Rating :
- UL94 V-0
- Length :
- 11.8872mm
- Voltage - Rated AC :
- 600V
- Overall Contact Length :
- 0.650 16.51mm
- Insulation Color :
- Natural
- Housing Material :
- Polyester
- Mating Post Length :
- 10.16mm
- Mixed Contacts :
- No
- IEC Conformance :
- No
- Contact Finish - Post :
- Tin
- Filter Feature :
- No
- Lead Length :
- 3.18mm
- JESD-609 Code :
- e3
- Current Rating :
- 7A
- MIL Conformance :
- No
- Circuit Application :
- Power
- PCB Thickness :
- 1.57mm
- Series :
- MTA-156
- Orientation :
- Vertical
- DIN Conformance :
- No
- Lead Pitch :
- 3.96mm
- Operating Supply Voltage :
- 600V
- UL Flammability Code :
- 94V-0
- Contact Material :
- COPPER ALLOY
- Max Voltage Rating (AC) :
- 600V
- Applications :
- General Purpose, Industrial
- Insulation Material :
- Thermoplastic, Glass Filled
- Material Flammability Rating :
- UL94 V-0
- Packaging :
- Bulk
- Height :
- 10.795mm
- Contact Length - Mating :
- 0.400 10.16mm
- REACH SVHC :
- Unknown
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Resistance :
- 3mOhm
- Contact Current Rating :
- 7A
- Number of Rows :
- 1
- Shrouding :
- Shrouded - 1 Wall
- Voltage - Rated :
- 600VAC
- Contact Finish - Mating :
- Gold
- Current Rating (Amps) :
- Varies by WireGAuge
- Mount :
- Through Hole
- Mounting Type :
- Through Hole
- Lifecycle Status :
- ACTIVE (Last Updated: 2 days ago)
- ECCN Code :
- EAR99
- Contact Retention :
- Without
- Underplate Material :
- Nickel
- Factory Lead Time :
- 14 Weeks
- Published :
- 2008
- Contact Gender :
- Male
- Number of Positions Loaded :
- All
- Pbfree Code :
- yes
- Sealable :
- No
- Pitch - Mating :
- 0.156 3.96mm
- Contact Type :
- Male Pin
- RoHS Status :
- RoHS Compliant
- Fastening Type :
- Friction Lock
- Number of Power Positions :
- 3
- Connector Type :
- Header
- Insulation Height :
- 0.425 10.80mm
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- Contact Shape :
- Square
- Plating Thickness :
- 2.54μm
- Style :
- Board to Cable/Wire
- Termination :
- Solder
- Operating Temperature :
- -55°C~105°C
- Depth :
- 7.62mm
- Lead Free :
- Lead Free
- Contact Plating :
- Gold, Tin
- Datasheets
- 3-641208-3
MTA-156 Series 1-Row Header Solder Copper Alloy Bulk Through Hole Gold Thermoplastic, Glass Filled Board to Cable/Wire 0.425 10.80mm Height
3-641208-3 Overview
The product comes in a package of Header.Through Hole is the type of mounting for the device.To package the product, a Bulk case is used.The product is a member of the MTA-156 Series.The device may be used for the following applications: General Purpose, Industrial.It is mounted by Through Hole.Its operating supply voltage is 600V.It operates at an operating temperature of -55°C~105°C.
3-641208-3 Features
MTA-156 series
3-641208-3 Applications
There are a lot of TE Connectivity AMP Connectors
3-641208-3 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
