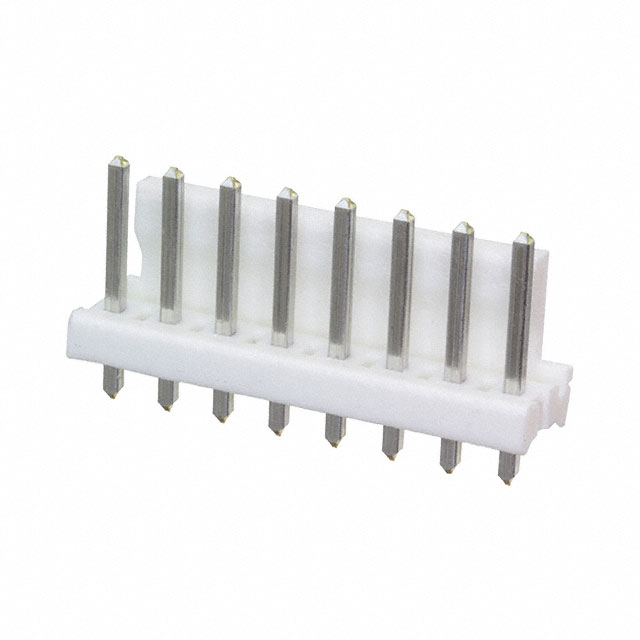

3-640445-8
Or copy the link below:
- Mfr.Part #
- 3-640445-8
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 8POS 3.96MM
- Stock
- 5,117
- In Stock ：
- 5,117
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Lifecycle Status :
- ACTIVE (Last Updated: 4 days ago)
- Flammability Rating :
- UL94 V-0
- Contact Retention :
- Without
- Orientation :
- Vertical
- Depth :
- 7.62mm
- Series :
- MTA-156
- Housing Material :
- Polyester
- Contact Resistance :
- 3mOhm
- Height :
- 10.79mm
- Insulation Height :
- 0.425 10.80mm
- Min Operating Temperature :
- -67°C
- Number of Rows :
- 1
- PCB Thickness :
- 1.57mm
- Number of Contacts :
- 8
- Approval Agency :
- CSA
- Mounting Type :
- Through Hole
- Packaging :
- Bulk
- Contact Type :
- Male Pin
- Fastening Type :
- Friction Lock
- Current Rating (Amps) :
- Varies by WireGAuge
- Style :
- Board to Cable/Wire
- Voltage - Rated :
- 600VAC
- Contact Finish - Mating :
- Tin
- Material Flammability Rating :
- UL94 V-0
- Mount :
- Through Hole
- Sealable :
- No
- Number of Power Positions :
- 8
- Operating Temperature :
- -55°C~105°C
- Circuit Application :
- Power
- Contact Current Rating :
- 7A
- Factory Lead Time :
- 17 Weeks
- Number of Positions :
- 8
- Contact Finish - Post :
- Tin
- Voltage - Rated AC :
- 600V
- Shrouding :
- Shrouded - 1 Wall
- Operating Supply Voltage :
- 600V
- RoHS Status :
- RoHS Compliant
- Connector Type :
- Header
- Contact Length - Mating :
- 0.400 10.16mm
- Mating Post Length :
- 10.16mm
- Contact Length - Post :
- 0.125 3.18mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Plating :
- Tin
- Color :
- Natural
- Pitch :
- 3.96mm
- Plating Thickness :
- 2.54μm
- Lead Free :
- Lead Free
- Contact Shape :
- Square
- Current Rating :
- 7A
- Housing Color :
- White, Natural
- Length :
- 31.6992mm
- Max Voltage Rating (AC) :
- 600V
- ELV :
- Compliant
- Applications :
- General Purpose, Industrial
- Insulation Material :
- Thermoplastic, Glass Filled
- Number of Positions Loaded :
- All
- Underplate Material :
- Nickel
- Contact Gender :
- Male
- Pitch - Mating :
- 0.156 3.96mm
- Published :
- 2008
- Plating :
- Tin
- Overall Contact Length :
- 0.650 16.51mm
- Termination :
- Solder
- PCB Mounting Orientation :
- Vertical
- Max Operating Temperature :
- 221°C
- Lead Length :
- 3.18mm
- Contact Material :
- COPPER ALLOY
- Insulation Color :
- Natural
- Radiation Hardening :
- No
- Datasheets
- 3-640445-8
MTA-156 Series 1-Row Header Solder Copper Alloy Bulk Through Hole Tin Thermoplastic, Glass Filled 8-Position Board to Cable/Wire 0.425 10.80mm Height
3-640445-8 Overview
A Header package is included with it.Its mounting type is Through Hole.Packaging is performed using a Bulk case.It is part of the MTA-156 Series of products.Whenever it's below 221°C, it's best to use it.The device must operate at a temperature of -67°C at all times.It is possible for the device to be used for the application General Purpose, Industrial.Through Hole mounts the part.A voltage of 600V is required to operate this memory.There is no operating temperature for the device.
3-640445-8 Features
MTA-156 series
3-640445-8 Applications
There are a lot of TE Connectivity AMP Connectors
3-640445-8 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
