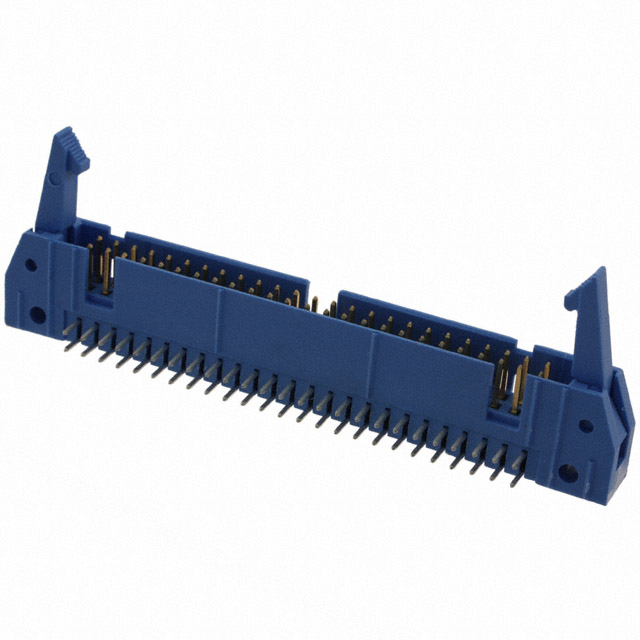

3-5499141-0

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Headers, Male Pins

Current Rating :

1A

Height :

13.94mm

ECCN Code :

EAR99

RoHS Status :

RoHS Compliant

Packaging :

Tray

Pitch - Mating :

0.100 2.54mm

Insulation Height :

0.315 8.00mm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Current Rating (Amps) :

1A per Contact

Housing Material :

Nylon

Operating Temperature :

-65°C~105°C

Reference Standard :

UL

Shrouded End Dimension :

3.81 mm

Mount :

Through Hole

Circuit Application :

Signal

Dielectric Withstanding Voltage :

1000VAC V

Connector Type :

Header

Material Flammability Rating :

UL94 V-0

Contact Material :

Brass

Fastening Type :

Latch Lock/Eject Hooks, Long

Feature :

Keying Slot, Mounting Flange

Pbfree Code :

yes

Orientation :

RIGHT ANGLE

Published :

2001

Flammability Rating :

UL94 V-0

ELV :

Compliant

DIN Conformance :

No

Plating Thickness :

760 nm

PCB Contact Pattern :

RECTANGULAR

Mating Connector Lock :

With

Mounting Type :

Through Hole, Right Angle

Contact Gender :

Male

Series :

AMP-Latch

Radiation Hardening :

No

Contact Length - Mating :

0.240 6.10mm

Contact Finish Thickness - Mating :

30.0μin 0.76μm

Voltage - Rated :

250VAC

Contact Type :

Male Pin

Depth :

27.31mm

Lifecycle Status :

ACTIVE (Last Updated: 4 days ago)

Contact Shape :

Square

Factory Lead Time :

9 Weeks

Number of Positions Loaded :

All

Reliability :

COMMERCIAL

Row Spacing - Mating :

0.100 (2.54mm)

Contact Plating :

Gold, Tin

Contact Finish - Post :

Tin

HTS Code :

8536.69.40.40

MIL Conformance :

No

Contact Length - Post :

0.110 2.79mm

Number Of PCB Rows :

2

Filter Feature :

No

Termination :

Solder

Mixed Contacts :

No

UL Flammability Code :

94V-0

IEC Conformance :

No

Insulation Color :

Blue

Contact Finish Thickness - Post :

100.0μin 2.54μm

Shrouding :

Shrouded - 4 Wall

PCB Mounting Orientation :

RIGHT ANGLE

Lead Length :

2.79mm

Mating Contact Pitch :

0.1 inch

Body Breadth :

0.336 inch

Option :

GENERAL PURPOSE

Operating Supply Voltage :

250V

PCB Mount Retention :

Without

Number of Rows :

2

Contact Finish - Mating :

Gold or Gold-Palladium

Contact Current Rating :

1A

Polarization Key :

DUAL POLARIZED

Number of Conductors :

ONE

Number of Positions :

50

Insulation Resistance :

5GOhm

Style :

Board to Cable/Wire

Max Voltage Rating (AC) :

250V

Length :

82.804mm
