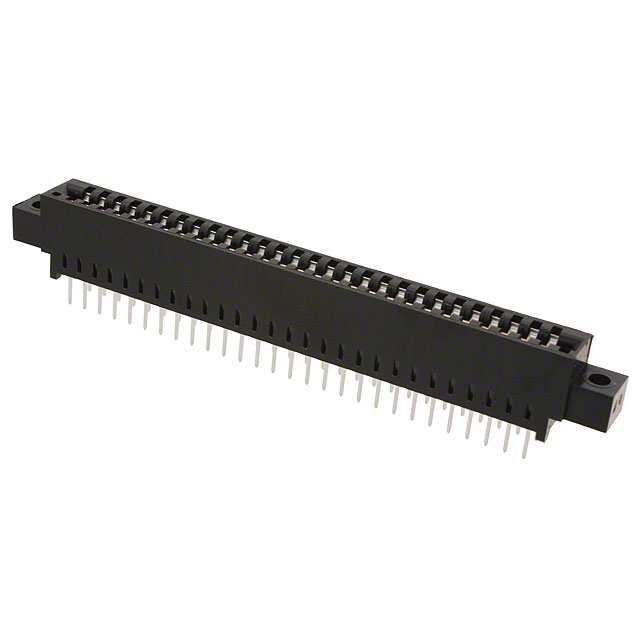

3-531341-0
Or copy the link below:
- Mfr.Part #
- 3-531341-0
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN EDGE DUAL FMALE 56POS 0.125
- Stock
- 1
- In Stock ：
- 1
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Edgeboard Connectors
- Card Type :
- Non Specified - Dual Edge
- Lead Pitch :
- 3.18mm
- Option :
- GENERAL PURPOSE
- HTS Code :
- 8536.69.40.40
- Mount :
- Through Hole
- Rated Current (Signal) :
- 3A
- Length - Termination :
- 0.187 inch
- Max Voltage Rating (AC) :
- 400V
- Lifecycle Status :
- ACTIVE (Last Updated: 7 months ago)
- Underplate Material :
- Nickel
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Published :
- 2004
- JESD-609 Code :
- e3
- Body Length or Diameter :
- 4.305 inch
- Contact Finish :
- Gold
- MIL Conformance :
- No
- Packaging :
- Bulk
- Card Thickness :
- 0.054 ~ 0.070 1.37mm ~ 1.78mm
- Read Out :
- Dual
- Material - Insulation :
- Polyester, Glass Filled
- Color :
- Black
- Contact Current Rating :
- 3A
- Reference Standard :
- UL, CSA
- Factory Lead Time :
- 15 Weeks
- Additional Feature :
- AMP
- Housing Material :
- Glass
- IEC Conformance :
- No
- PCB Contact Pattern :
- RECTANGULAR
- Filter Feature :
- No
- Connector Type :
- Connector, Receptacle, Socket
- Gender :
- FEMALE
- Termination :
- Solder
- Body Depth :
- 0.61 inch
- Number of Contacts :
- 28
- Contact Style :
- BELLOWED TYPE
- Pitch :
- 0.125 3.18mm
- Row Spacing :
- 6.11 mm
- Insertion Force-Max :
- 1.668 N
- UL Flammability Code :
- 94V-0
- Plating Thickness :
- 760 nm
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Operating Temperature :
- -55°C~ 85°C
- RoHS Status :
- Non-RoHS Compliant
- Orientation :
- Vertical
- Number Of PCB Rows :
- 2
- ECCN Code :
- EAR99
- Number of Positions :
- 56
- Contact Resistance :
- 10MOhm
- Mounting Type :
- Through Hole
- Dielectric Withstanding Voltage :
- 1500VAC V
- Circuit Application :
- Signal
- Reliability :
- COMMERCIAL
- ELV :
- Compliant
- Current Rating :
- 3A
- Insulation Resistance :
- 5000000000Ohm
- Number of Conductors :
- ONE
- Height :
- 15.494mm
- Body Breadth :
- 0.368 inch
- Flammability Rating :
- UL94 V-0
- Series :
- Standard Edge II
- Contact Material :
- Phosphor Bronze
- Flange Feature :
- Top Mount Opening, Unthreaded, 0.128 (3.25mm) Dia
- Number of Rows :
- 2
- Lead Length :
- 4.7498mm
- Lead Free :
- Contains Lead
- Mixed Contacts :
- No
- Contact Pattern :
- RECTANGULAR
- DIN Conformance :
- No
- Datasheets
- 3-531341-0
