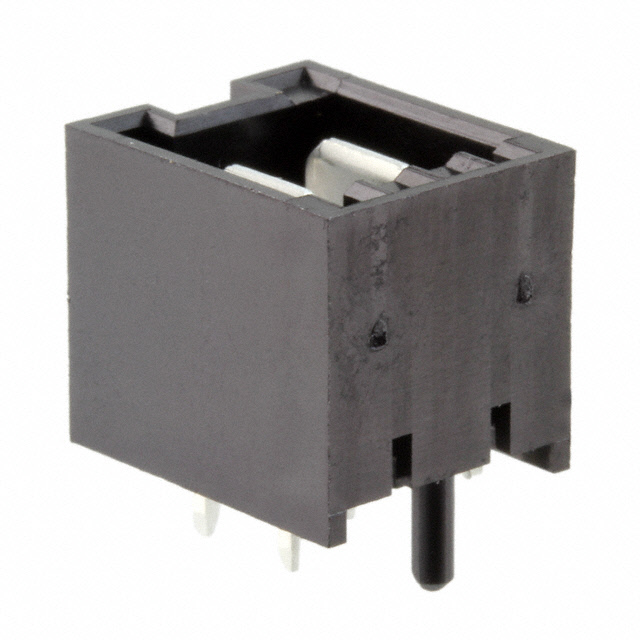

3-521383-2
Or copy the link below:
- Mfr.Part #
- 3-521383-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 2POS 5MM
- Stock
- 8,320
- In Stock ：
- 8,320
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Orientation :
- Vertical
- Contact Plating :
- Tin
- Pitch - Mating :
- 0.197 5.00mm
- Contact Material :
- Brass
- PCB Mount Retention :
- Without
- Lifecycle Status :
- ACTIVE (Last Updated: 1 day ago)
- Material :
- Nylon
- Number of Ports :
- 1
- Housing Material :
- Nylon
- Insulation Height :
- 0.504 12.80mm
- Flammability Rating :
- UL94 V-0
- Number of Contacts :
- 2
- Applications :
- GENERAL PURPOSE
- Color :
- Black
- Mount :
- Through Hole
- Insulation Material :
- Polyamide (PA66), Nylon 6/6
- Plating :
- Tin
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Circuit Application :
- Signal
- Pitch :
- 5mm
- Packaging :
- Bulk
- Contact Finish Thickness - Mating :
- 150.0μin 3.81μm
- Contact Type :
- Tab
- Length :
- 12.3mm
- Depth :
- 14.9mm
- Material Flammability Rating :
- UL94 V-0
- Housing Color :
- Black
- Contact Shape :
- RECTANGULAR
- Operating Temperature :
- -40°C~120°C
- Connector Type :
- Header
- Sealable :
- No
- Number of Rows :
- 1
- Voltage - Rated :
- 250VAC
- Contact Finish - Mating :
- Tin
- Style :
- Board to Cable/Wire
- Feature :
- Board Guide, Glow Wire Compliant
- Preloaded :
- yes
- Shrouding :
- Shrouded - 4 Wall
- Fastening Type :
- Latch Holder
- Contact Length - Post :
- 0.138 3.50mm
- Published :
- 2008
- RoHS Status :
- RoHS Compliant
- Termination :
- Solder
- Current Rating :
- 16A
- Contact Finish Thickness - Post :
- 150.0μin 3.81μm
- Number of Positions :
- 2
- Mounting Type :
- Through Hole
- Mating Retention :
- Without
- Length - Tail :
- 3.5mm
- PCB Mount Alignment :
- With
- PCB Mounting Orientation :
- Vertical
- Number of Positions Loaded :
- All
- Number of Terminations :
- 2
- Contact Finish - Post :
- Tin
- Factory Lead Time :
- 12 Weeks
- Datasheets
- 3-521383-2
1-Row Header Solder Brass Bulk Through Hole Tin Polyamide (PA66), Nylon 6/6 2-Position Board to Cable/Wire 0.504 12.80mm Height
3-521383-2 Overview
Packaging is Header.Through Hole is the mounting type.Packaging for the product is carried out via a Bulk case.A variety of tasks can be managed via its 1 ports.A possible application of the device would be General Purpose.With its Board Guide, Glow Wire Compliant feature, it is more powerful in many ways.In this case, Through Hole mounts the part.It has a termination of 2.The device is operating at -40°C~120°C Operating Temperature.
3-521383-2 Features
2 basic kinds of terminations
3-521383-2 Applications
There are a lot of TE Connectivity AMP Connectors
3-521383-2 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
