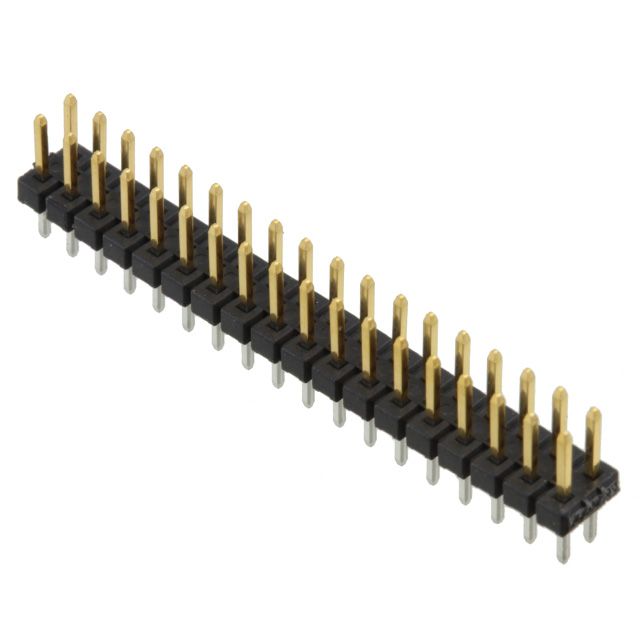

3-5176264-2
Or copy the link below:
- Mfr.Part #
- 3-5176264-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 36POS 2MM
- Stock
- 8,049
- In Stock ：
- 8,049
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Mating Post Length :
- 4mm
- Stackable :
- No
- Fastening Type :
- Push-Pull
- Color :
- Black
- RoHS Status :
- RoHS Compliant
- Insulation Color :
- Black
- Material Flammability Rating :
- UL94 V-0
- Packaging :
- Tray
- Connector Type :
- Header, Breakaway
- Flammability Rating :
- UL94 V-0
- Factory Lead Time :
- 12 Weeks
- Approval Agency :
- CSA
- Lead Free :
- Lead Free
- Number of Rows :
- 2
- Height :
- 1.12903m
- Published :
- 2008
- Insulation Height :
- 0.059 1.50mm
- Number of Positions :
- 36
- Operating Temperature :
- -40°C~105°C
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Housing Material :
- Thermoplastic
- PCB Mount Retention :
- Without
- Number of Positions Loaded :
- All
- Housing Color :
- Black
- Mounting Type :
- Through Hole
- Lifecycle Status :
- ACTIVE (Last Updated: 5 days ago)
- Voltage - Rated AC :
- 200V
- Length - Tail :
- 2.6mm
- Contact Shape :
- Square
- Shrouding :
- Unshrouded
- Contact Finish - Post :
- Tin
- Termination :
- Solder
- Pitch :
- 2mm
- Min Operating Temperature :
- -40°C
- Lead Length :
- 2.6mm
- Overall Contact Length :
- 0.319 8.10mm
- Contact Length - Mating :
- 0.157 4.00mm
- Style :
- Board to Board or Cable
- Number of Contacts :
- 36
- Contact Length - Post :
- 0.102 2.60mm
- Series :
- AMPMODU
- Plating :
- Gold
- Pitch - Mating :
- 0.079 2.00mm
- Contact Material :
- Brass
- Contact Finish Thickness - Mating :
- 8.00μin 0.203μm
- Max Operating Temperature :
- 105°C
- Orientation :
- Vertical
- Operating Supply Voltage :
- 200V
- Contact Type :
- Male Pin
- Contact Finish - Mating :
- Gold
- Radiation Hardening :
- No
- Contact Plating :
- Gold
- Row Spacing - Mating :
- 0.079 (2.00mm)
- PCB Thickness :
- 1.6002mm
- Current Rating :
- 1A
- Insulation Material :
- Thermoplastic
- Contact Current Rating :
- 1A
- Insulation Resistance :
- 1GOhm
- Voltage - Rated :
- 200VAC
- Mount :
- Through Hole
- PCB Mounting Orientation :
- Vertical
- ELV :
- Compliant
- Datasheets
- 3-5176264-2
AMPMODU Series 2-Row Header, Breakaway Solder Brass Tray Through Hole Gold Thermoplastic 36-Position Board to Board or Cable 0.059 1.50mm Height
3-5176264-2 Overview
Packaging for this item is Header, Breakaway.There is a mounting type of Through Hole for this device.It is necessary to use a Tray case for packaging the product.This product is part of the AMPMODU Series.You should use it when it's below 105°C.A minimum temperature of -40°C is required for the operation of this device.Through Hole is used to mount the part.The operating supply voltage of this memory is 200V.In this case, the device operates at -40°C~105°C Operating Temperature.
3-5176264-2 Features
AMPMODU series
3-5176264-2 Applications
There are a lot of TE Connectivity AMP Connectors
3-5176264-2 Rectangular Connectors applications.
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
