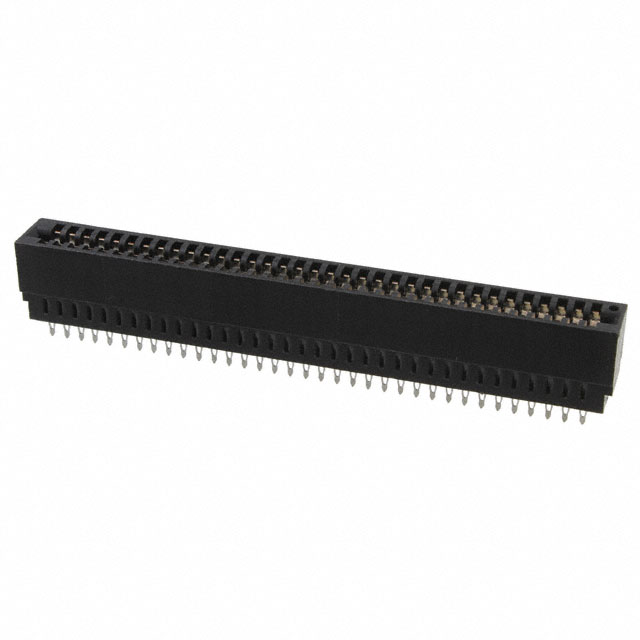

3-5147490-5
Or copy the link below:
- Mfr.Part #
- 3-5147490-5
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN EDGE DUAL FMALE 70POS 0.100
- Stock
- 229
- In Stock ：
- 229
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Edgeboard Connectors
- Mixed Contacts :
- No
- RoHS Status :
- Non-RoHS Compliant
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Factory Lead Time :
- 11 Weeks
- Pitch :
- 0.100 2.54mm
- Flammability Rating :
- UL94 V-0
- Connector Type :
- Connector, Receptacle, Socket
- Card Type :
- Non Specified - Dual Edge
- Current Rating :
- 3A
- Option :
- GENERAL PURPOSE
- ELV :
- Compliant
- Number of Rows :
- 2
- Filter Feature :
- No
- Mount :
- Through Hole
- Card Thickness :
- 0.054 ~ 0.070 1.37mm ~ 1.78mm
- Total Number of Contacts :
- 35
- Height :
- 13.97mm
- Number of Positions :
- 70
- Plating Thickness :
- 760 nm
- DIN Conformance :
- No
- Circuit Application :
- Signal
- Lead Length :
- 3.18mm
- Color :
- Black
- Material - Insulation :
- Polyester, Glass Filled
- Orientation :
- Vertical
- IEC Conformance :
- No
- Gender :
- FEMALE
- Termination :
- Press-Fit
- Lead Free :
- Not Applicable
- Lifecycle Status :
- ACTIVE (Last Updated: 2 days ago)
- Read Out :
- Dual
- Series :
- Next Generation PACE
- Packaging :
- Bulk
- Contact Finish :
- Gold
- Underplate Material :
- Nickel
- Published :
- 2010
- Mounting Type :
- Through Hole
- Contact Plating :
- Gold, Tin
- Row Spacing :
- 5.08 mm
- Contact Material :
- Phosphor Bronze
- MIL Conformance :
- No
- Housing Material :
- Polyester
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Datasheets
- 3-5147490-5
Female Black 0.100 2.54mm Phosphor Bronze 2 Rows Bulk Press-Fit Gold 70 Positions Polyester, Glass Filled
3-5147490-5 Overview
The material was packaged according to the specifications provided by Bulk.You should mount it type Through Hole.Connecting the device uses connector socket Connector, Receptacle, Socket.Next Generation PACE indicates that the device belongs to the series.
3-5147490-5 Features
Next Generation PACE series
3-5147490-5 Applications
There are a lot of TE Connectivity AMP Connectors
3-5147490-5 Edgeboard Connectors applications.
- CMOS Image sensors for mobile applications
- Medical Instrumentation and medical imaging
- Music recording
- Digital signal processing
- Scientific instruments
- Rotary encoder
- Displaying
- Transducer
- Microcontrollers.
- Digital Storage Oscilloscope
