3-338170-2
Or copy the link below:
- Mfr.Part #
- 3-338170-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN D-SUB PLUG 25POS R/A SLDR
- Stock
- 894
- In Stock ：
- 894
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- D-Sub Connector Assemblies
- Mixed Contacts :
- No
- Number of Positions :
- 25
- Insulation Resistance :
- 5000000000Ohm
- Voltage - Rated :
- 125V
- Contact Gender :
- Male
- Lead Free :
- Lead Free
- Mount :
- Through Hole
- Backset Spacing :
- 0.406 (10.30mm)
- Plating :
- Tin
- Contact Plating :
- Gold, Tin
- Shell Size, Connector Layout :
- 3 DB B
- PCB Thickness :
- 1.57mm
- Preloaded :
- yes
- Contact Type :
- Signal
- Connector Style :
- D-Sub
- Operating Temperature :
- -55°C~105°C
- Housing Material :
- Polyester
- UL Flammability Code :
- 94V-0
- RoHS Status :
- RoHS Compliant
- Number of Rows :
- 2
- Shell Finish :
- Tin
- Shell Material :
- Steel
- Total Number of Contacts :
- 25
- Number Of PCB Rows :
- 2
- Series :
- AMPLIMITE HD-20
- PCB Mount Retention :
- With
- Factory Lead Time :
- 35 Weeks
- Orientation :
- RIGHT ANGLE
- Body Breadth :
- 0.535 inch
- PCB Mounting Orientation :
- RIGHT ANGLE
- Published :
- 2008
- Width :
- 12.39mm
- Number of Ports :
- 1
- Reference Standard :
- UL, CSA
- MIL Conformance :
- No
- Material Flammability Rating :
- UL94 V-0
- Option :
- GENERAL PURPOSE
- Lifecycle Status :
- ACTIVE (Last Updated: 1 day ago)
- Rated Current (Signal) :
- 6A
- Color :
- Black
- IEC Conformance :
- No
- Reliability :
- COMMERCIAL
- Hole Diameter :
- 3.1 mm
- Dielectric Material :
- Polyester, Glass Filled
- Flange Feature :
- Mating Side, Female Screwlock (4-40)
- ECCN Code :
- EAR99
- DIN Conformance :
- yes
- Sealable :
- No
- Contact Finish :
- Gold
- Mounting Type :
- Through Hole, Right Angle
- Row Spacing :
- 2.54 mm
- Contact Material :
- Phosphor Bronze
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Shell Material, Finish :
- Steel, Tin Plated
- Pitch :
- 2.76mm
- Flammability Rating :
- UL94 V-0
- Lead Length :
- 3.2004mm
- Length :
- 53.42mm
- HTS Code :
- 8536.69.40.30
- PCB Contact Pattern :
- STAGGERED
- Connector Type :
- Plug, Male Pins
- Packaging :
- Tray
- Feature :
- Board Lock, Grounding Indents
- Current Rating :
- 6A
- ELV :
- Compliant
- Contact Shape :
- Round
- Empty Shell :
- No
- Filter Feature :
- No
- Depth :
- 20.59mm
- Termination :
- Solder
- Datasheets
- 3-338170-2

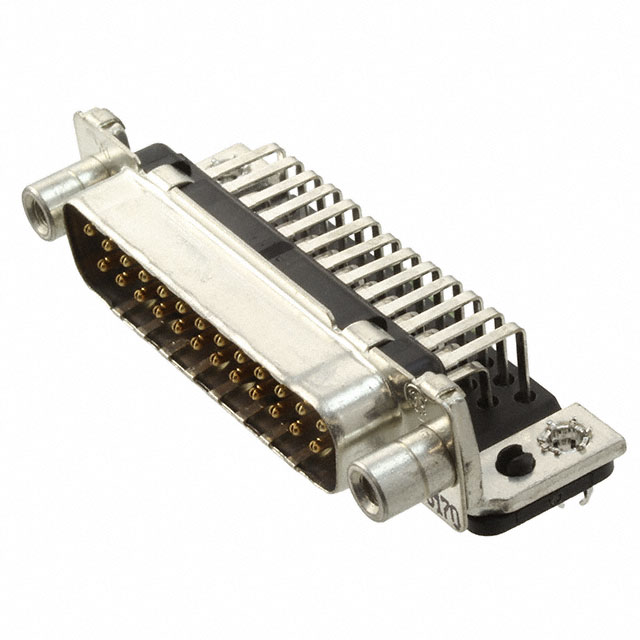

AMPLIMITE HD-20 Series D-Sub Plug, Male Pins 25-Position Signal Solder 3 DB B Through Hole, Right Angle Phosphor Bronze Gold Steel, Tin Plated
3-338170-2 Overview
The product comes in a package of Plug, Male Pins.Its mounting type is Through Hole, Right Angle.Packaging is performed using a Tray case.It is part of the AMPLIMITE HD-20 Series of products.The device is equipped with 1 ports for the management of a variety of tasks.A number of features make it more powerful because of its Board Lock, Grounding Indents feature.Through Hole mounts the part.There is no operating temperature for the device.
3-338170-2 Features
AMPLIMITE HD-20 series
3-338170-2 Applications
There are a lot of TE Connectivity AMP Connectors
3-338170-2 D-Sub Connectors applications.
