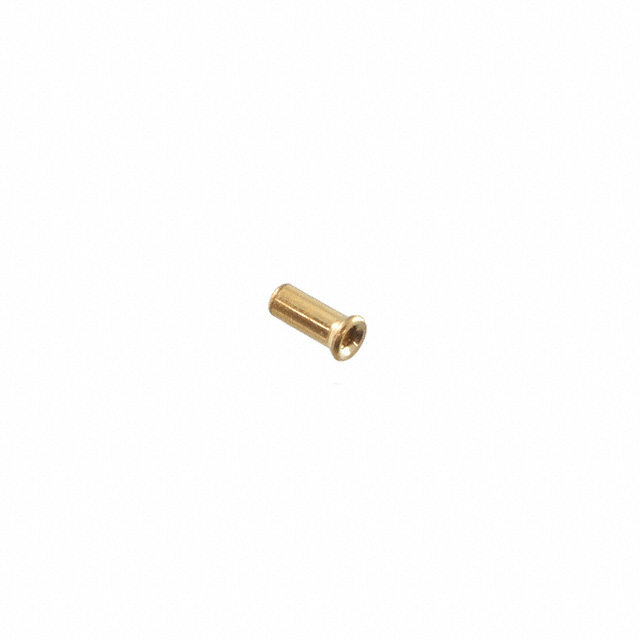

3-331272-4
Or copy the link below:
- Mfr.Part #
- 3-331272-4
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN PIN RCPT .022-.025 SOLDER
- Stock
- 2,366
- In Stock ：
- 2,366
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- PC Pin Receptacles, Socket Connectors
- Lifecycle Status :
- ACTIVE (Last Updated: 4 months ago)
- Sealable :
- No
- Mounting Hole Diameter :
- 0.052 (1.32mm)
- Tail Type :
- No Tail
- Packaging :
- Bulk
- Length :
- 3.5052mm
- Wire/Cable Gauge :
- 23 AWG
- Series :
- 2
- Plating Thickness :
- 30μm
- Connector Support Type :
- CABLE ASSEMBLY
- Accepts Pin Diameter :
- 0.022 ~ 0.025 (0.56mm ~ 0.64mm)
- Feature :
- Knockout Bottom
- ELV :
- Compliant
- Depth :
- 1.78mm
- Termination :
- Solder
- Contact Current Rating :
- 5A
- Flange Diameter :
- 0.070 (1.77mm)
- Mount :
- Surface Mount
- Contact Material :
- BERYLLIUM COPPER
- Operating Temperature :
- -65°C~126°C
- Circuit Application :
- Power
- Published :
- 2005
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Socket Depth :
- 0.125 3.18mm
- Max Current Rating :
- 5A
- Length - Overall :
- 0.138 3.51mm
- PCB Thickness :
- 3.18mm
- Factory Lead Time :
- 19 Weeks
- Hole Diameter :
- 1.3208 mm
- Connector Type :
- Socket
- Number of Rows :
- 1
- Orientation :
- Straight
- Contact Finish :
- Gold
- RoHS Status :
- RoHS Compliant
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Wire/Cable Type :
- Discrete
- Datasheets
- 3-331272-4
3-331272-4 datasheet pdf and Terminals - PC Pin Receptacles, Socket Connectors product details from TE Connectivity AMP Connectors stock available at Xinshop
