3-338168-2
Or copy the link below:
- Mfr.Part #
- 3-338168-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN D-SUB PLUG 9POS R/A SLDR
- Stock
- 28,134
- In Stock ：
- 28,134
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- D-Sub Connector Assemblies
- Connector Style :
- D-Sub
- Termination :
- Solder
- Mounting Type :
- Through Hole, Right Angle
- Shell Finish :
- Tin
- Mount :
- Through Hole
- Material :
- Steel
- Backset Spacing :
- 0.406 (10.30mm)
- IEC Conformance :
- No
- Hole Diameter :
- 3.1 mm
- RoHS Status :
- RoHS Compliant
- Empty Shell :
- No
- Body Material :
- Metal
- Contact Resistance :
- 30mOhm
- Gender :
- Male
- Lead Free :
- Lead Free
- PCB Contact Pattern :
- STAGGERED
- Flammability Rating :
- UL94 V-0
- Contact Plating :
- Gold, Tin
- Material Flammability Rating :
- UL94 V-0
- Sealable :
- No
- Dielectric Material :
- Polyester, Glass Filled
- Operating Temperature :
- -55°C~105°C
- ELV :
- Compliant
- Filter Feature :
- No
- Contact Type :
- Signal
- Published :
- 2001
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Pitch :
- 2.74mm
- Reference Standard :
- UL
- Row Spacing :
- 2.54 mm
- Insulation Resistance :
- 5000000000Ohm
- Contact Finish :
- Gold
- MIL Conformance :
- No
- Depth :
- 21.3mm
- Number Of PCB Rows :
- 2
- Voltage - Rated :
- 125V
- Height :
- 13.6mm
- Factory Lead Time :
- 12 Weeks
- Plating Thickness :
- 760 nm
- Shell Size, Connector Layout :
- 1 DE E
- PCB Thickness :
- 1.57mm
- Contact Material :
- Bronze
- Total Number of Contacts :
- 9
- Connector Type :
- Plug, Male Pins
- DIN Conformance :
- yes
- Color :
- Black
- Orientation :
- RIGHT ANGLE
- Pbfree Code :
- yes
- Mixed Contacts :
- No
- Current Rating :
- 6A
- Contact Shape :
- Round
- Number of Ports :
- 1
- Shell Material, Finish :
- Steel, Tin Plated
- REACH SVHC :
- No SVHC
- Number of Rows :
- 2
- Body Breadth :
- 0.535 inch
- PCB Mounting Orientation :
- RIGHT ANGLE
- Flange Feature :
- Mating Side, Female Screwlock (4-40)
- Lifecycle Status :
- ACTIVE (Last Updated: 4 days ago)
- Width :
- 12.39mm
- Preloaded :
- yes
- Length :
- 30.9mm
- Voltage - Rated DC :
- 250V
- Feature :
- Board Lock, Grounding Indents
- Series :
- AMPLIMITE HD-20
- Packaging :
- Tray
- Housing Material :
- Glass
- Mating Connector Lock :
- With
- Number of Positions :
- 9
- Rated Current (Signal) :
- 6A
- Lead Length :
- 3.2004mm
- Plating :
- Tin
- Reliability :
- COMMERCIAL
- Option :
- GENERAL PURPOSE
- Datasheets
- 3-338168-2

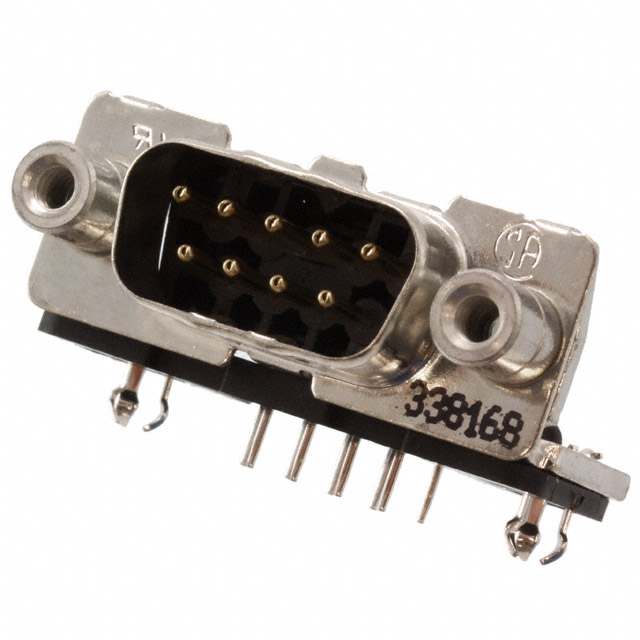

AMPLIMITE HD-20 Series D-Sub Plug, Male Pins 9-Position Male Signal Solder 1 DE E Through Hole, Right Angle Bronze Gold Steel, Tin Plated
3-338168-2 Overview
The connector type Plug, Male Pins refers to the connector type.The device's mounting type is Through Hole, Right Angle.In order to package the product, a Tray case is used.It belongs to the AMPLIMITE HD-20 Series of products.It features 1 ports for managing a variety of tasks.Its Board Lock, Grounding Indents feature renders it more powerful in many ways.The part is mounted by Through Hole.The device runs in -55°C~105°C Operating Temperature.
3-338168-2 Features
AMPLIMITE HD-20 series
3-338168-2 Applications
There are a lot of TE Connectivity AMP Connectors
3-338168-2 D-Sub Connectors applications.
