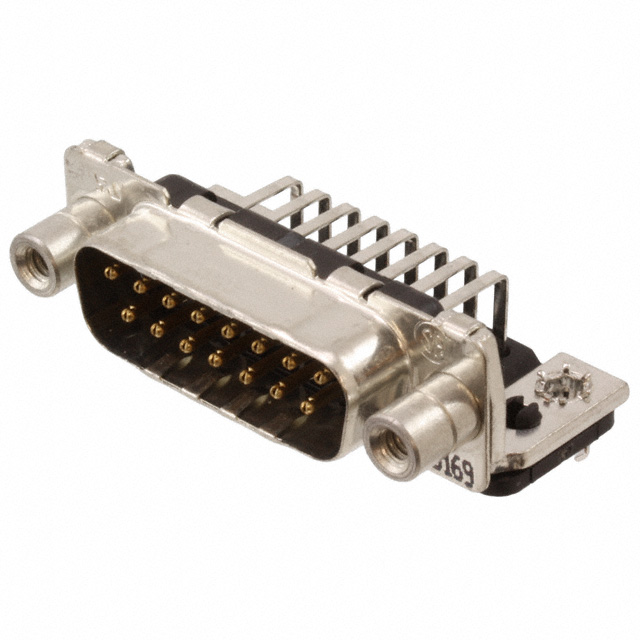

3-338169-2

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

D-Sub Connector Assemblies

MIL Conformance :

No

Number of Terminals :

15

Hole Diameter :

3.1 mm

Body/Shell Style :

PLUG

Total Number of Contacts :

15

Housing Material :

Polyester

ELV :

Compliant

Minimum Operating Temperature :

-55.0°C

Radiation Hardening :

No

Reach Compliance Code :

not_compliant

Flammability Rating :

UL94 V-0

Material :

Steel

Shell Finish :

Tin

Product Type :

D-Sub Connectors - Standard Density

Type :

D-Subminiature

Working Voltage :

250 V

Packaging :

Tray

Shell Material :

Steel

HTS Code :

8536.69.40.30

Number of Rows :

2

Product Depth (mm) :

21.3(mm)

Filter Feature :

No

Current Rating :

6/Contact(A)

Circuit Application :

Signal

Rad Hardened :

No

Number of Contacts :

15 POS

REACH SVHC :

No SVHC

Number of Ports :

1

Mounting Angle :

RIGHT ANGLE

Contact Gender :

Male

Length :

39.2mm

Shell Plating :

Tin

Mount :

Through Hole

Product Height (mm) :

13.6(mm)

Brand Name :

AMP

Min Operating Temperature :

-55 °C

Factory Lead Time :

17 Weeks

Depth :

21.3mm

UL Flammability Code :

94V-0

Preloaded :

yes

Lead Free :

Lead Free

PCB Thickness :

1.57 mm

Mounting Type :

BOARD

Tradename :

AMPLIMITE

Lifecycle Status :

Production (Last Updated: 1 week ago)

Product Length :

39.2 mm

Plug / Receptacle :

Pin

Maximum Operating Temperature :

+105°C

Operating Temperature :

-55 to 105 to 105 °C

PCB Mount Retention :

With

Voltage Rating :

125 V

Max Operating Temperature :

105 °C

Mixed Contacts :

No

RoHS :

Details

Manufacturer Lifecycle Status :

ACTIVE (Last Updated: 1 week ago)

Brand :

TE Connectivity

ECCN Code :

EAR99

DIN Conformance :

yes

Orientation :

RIGHT ANGLE

Termination Style :

Through Hole

Product Category :

D-Sub Standard Connectors

Voltage Rating (DC) :

250 V

Operating Temp Range :

-55C to 105C

Body Material :

Metal

Sealable :

No

Number of Contact Rows :

2

Shell Size :

2/A

Termination :

Solder

Mounting :

Through Hole

Contact Plating :

Gold Over Nickel

Base/Housing Material :

Polyester

Row Spacing :

2.54 mm

Gender :

Pin

Series :

HDP-20

Body Orientation :

RIGHT ANGLE

Product Length (mm) :

39.2(mm)

Mounting Style :

Through Hole

Additional Feature :

AMPLIMITE

Mating Connector Lock :

With

Number of Positions :

15 Position

IEC Conformance :

No

Termination Type :

Solder

Width :

13.6mm

PCB Mounting Orientation :

RIGHT ANGLE

Option :

GENERAL PURPOSE

Housing Color :

Black

Termination Method :

Solder

Connector Type :

D SUBMINIATURE CONNECTOR

Contact Shape :

Round

Subcategory :

D-Sub Connectors

Lead Length :

3.2004 mm

Contact Material :

NOT SPECIFIED

Empty Shell :

No

Contact Pitch (mm) :

1.37(mm)

Dimensions :

39.2 x 13.6 x 21.3mm

Pitch :

2.74 mm

Color :

Black

Plating :

Tin
